SDR0403-270KL

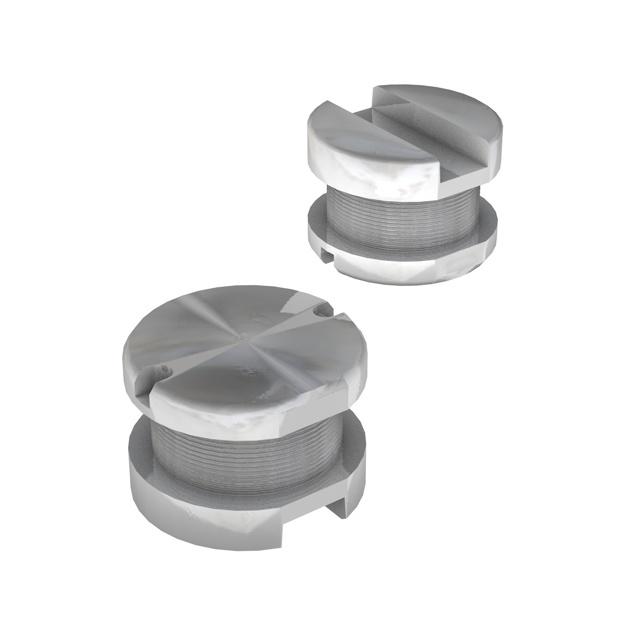

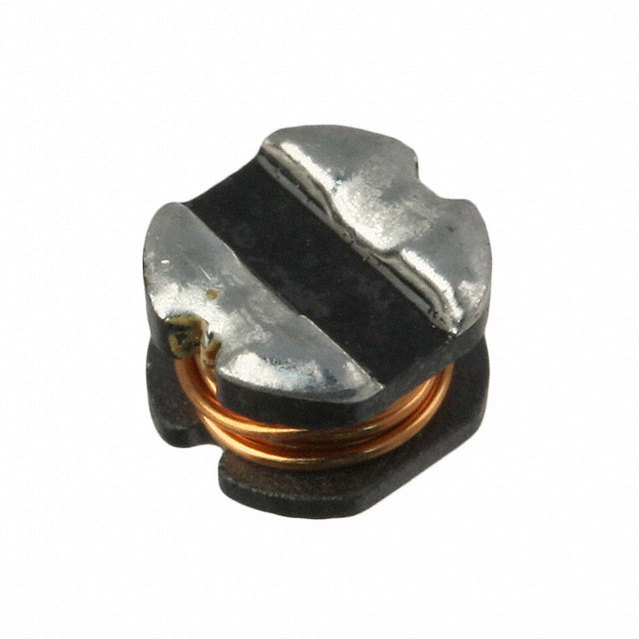

BOURNS  SDR0403-270KL  表面贴装功率电感器, SDR0403系列, 27 µH, ± 10%, 非屏蔽, 0.52 ohm, 710 mA

SDR0403 系列线绕扼流圈

提供 E12 系列

薄型，仅 3.2mm

低值

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

欧时:
Bourns SDR0403 系列 铁氧体芯材 27 μH 绕线贴片电感器 SDR0403-270KL, ±10%容差, 710mA Idc

立创商城:
27uH ±10% 710mA 520mΩ

得捷:
FIXED IND 27UH 710MA 520MOHM SMD

e络盟:
功率电感SMD, 27 µH, 710 mA, 非屏蔽, 1 A, SDR0403系列, 4.5mm x 4mm x 3.2mm

艾睿:
Inductor Power Unshielded Wirewound 27uH 10% 1KHz 23Q-Factor Ferrite 0.71A 0.52Ohm DCR T/R

Allied Electronics:
WireWound SMD Inductor w/ FerriteCore, 27 uH +/-10%WireWound 710mA Idc

安富利:
Ind Power Wirewound 27uH 10% 1KHz 23Q-Factor Ferrite 710mA T/R

Chip1Stop:
Ind Power Wirewound 27uH 10% 1KHz 23Q-Factor Ferrite 710mA T/R

Verical:
Inductor Power Unshielded Wirewound 27uH 10% 1KHz 23Q-Factor Ferrite 0.71A 0.52Ohm DCR T/R

Newark:
# BOURNS  SDR0403-270KL  Surface Mount Power Inductor, SDR0403 Series, 27 µH, 710 mA, 1 A, Unshielded, 0.52 ohm

MASTER:
Inductor Power - Wirewound - 4.5 x 4 x 3.2mm - 27 uH - 1KHz - 710 mA - 520m Ohm.

Online Components:
Inductor Power Wirewound 27uH 10% 1KHz 23Q-Factor Ferrite 710mA 520mOhm DCR T/R

Electro Sonic:
Inductor Power - Wirewound - 4.5 x 4 x 3.2mm - 27 uH - 1KHz - 710 mA - 520m ...
