2.5 V / 3.3 V 16位缓冲器/带3态输出驱动程序 2.5-V/3.3-V 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
The "ALVTH162244 devices are 16-bit buffers/line drivers designed for low-voltage 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.
These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and symmetrical active-low output-enable OE\\\\ inputs.
Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
When VCC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
All outputs are designed to sink up to 12 mA and include equivalent 30- resistors to reduce overshoot and undershoot.
The SN54ALVTH162244 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH162244 is characterized for operation from -40°C to 85°C.
电源电压DC 2.30V ~ 3.60V
输出接口数 16
通道数 16
位数 16
传送延迟时间 3.30 ns
电压波节 3.30 V, 2.50 V
静态电流 3.2 mA
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 2.3 V
电源电压Min 3.6 V
安装方式 Surface Mount

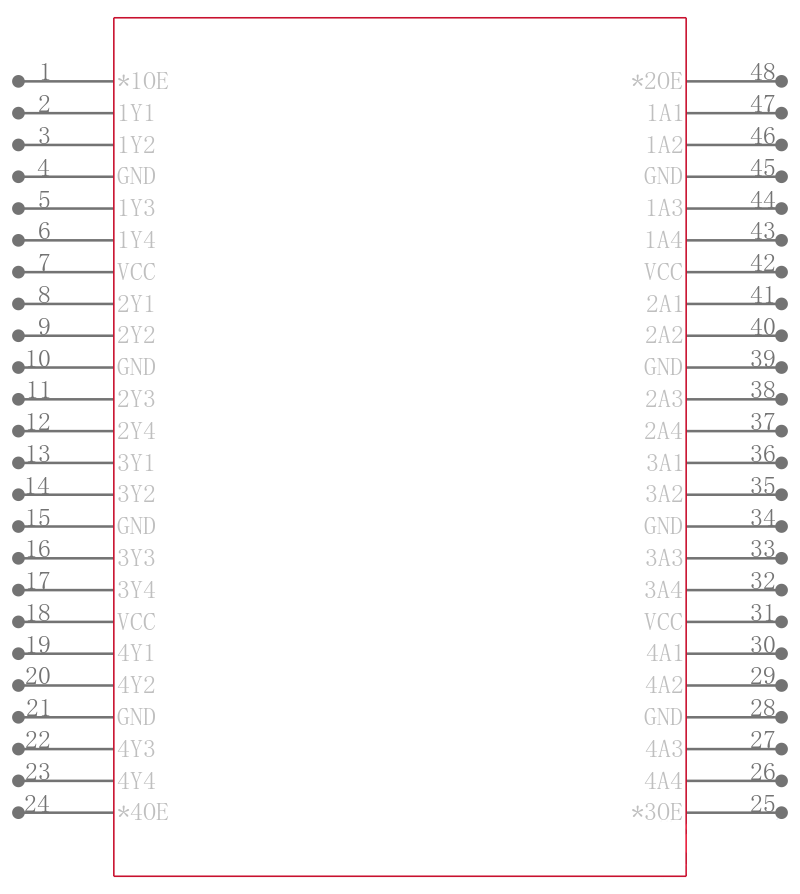

引脚数 48

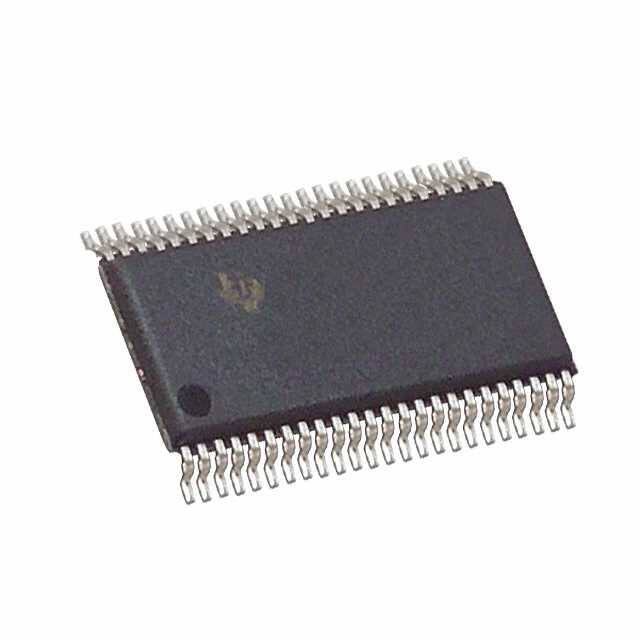

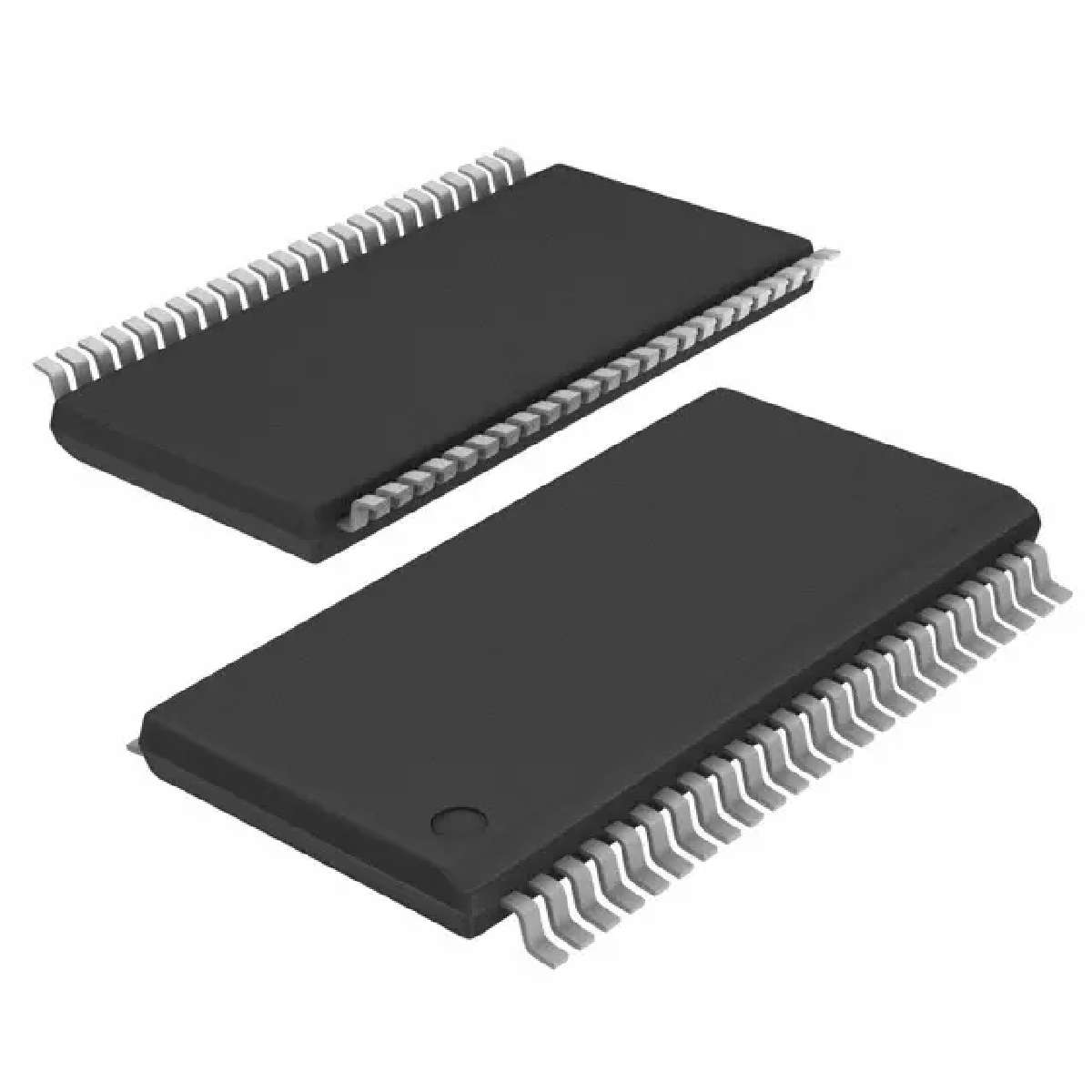

封装 TVSOP-48
长度 9.7 mm
宽度 4.4 mm
高度 1.05 mm
封装 TVSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ALVTH162244VR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALVTH162244GR 德州仪器 | 完全替代 | SN74ALVTH162244VR和SN74ALVTH162244GR的区别 |
SN74ALVTH162244DL 德州仪器 | 类似代替 | SN74ALVTH162244VR和SN74ALVTH162244DL的区别 |
SN74ALVTH16244VR 德州仪器 | 类似代替 | SN74ALVTH162244VR和SN74ALVTH16244VR的区别 |
