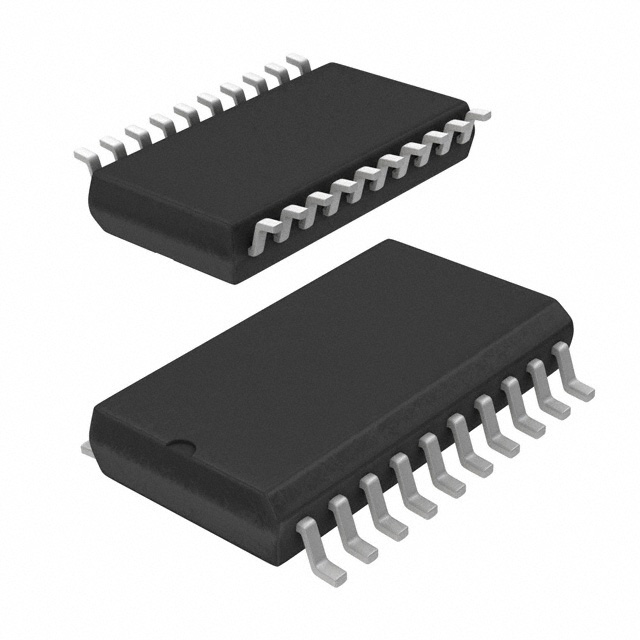

SN74ABT5403DWR

缓冲器和线路驱动器 12-Bit Line/Mem Drv With 3-State Outputs

description

These 12-bit buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

The 3-state control gate is a 2-input AND gate with active-low inputs so that if either output-enable OE1 or OE2 input is high, all 12 outputs are in the high-impedance state. These devices provide inverted data.

The outputs, which are designed to source or sink up to 12 mA, include equivalent 25-Ω series resistors to reduce overshoot and undershoot.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The SN54ABT5403 is characterized for operation over the full military temperature range of –55°C to 125°C.

The SN74ABT5403 is characterized for operation from –40°C to 85°C.

• Output Ports Have Equivalent 25-Ω Series Resistors, So No External Resistors Are Required

• State-of-the-Art EPIC-ΙΙB BiCMOS Design Significantly Reduces Power Dissipation

• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17

• Typical VOLP Output Ground Bounce < 1 V at VCC = 5 V, TA = 25°C

• Typical VOLV Output Undershoot < 0.5 V at VCC = 5 V, TA = 25°C

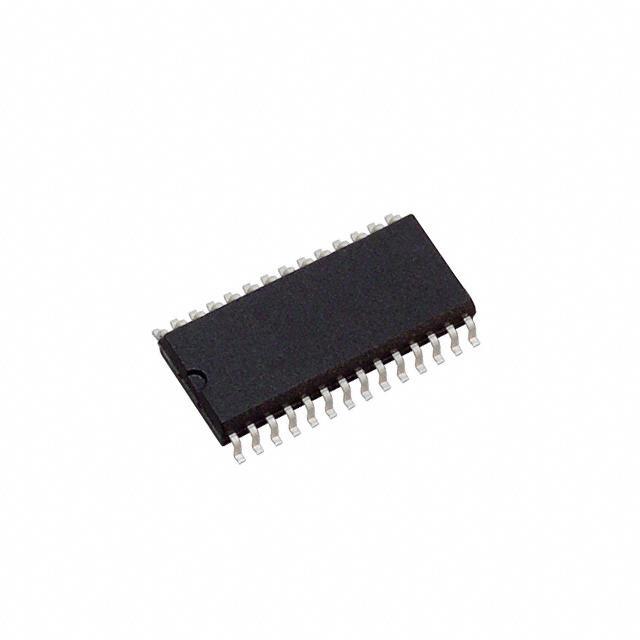

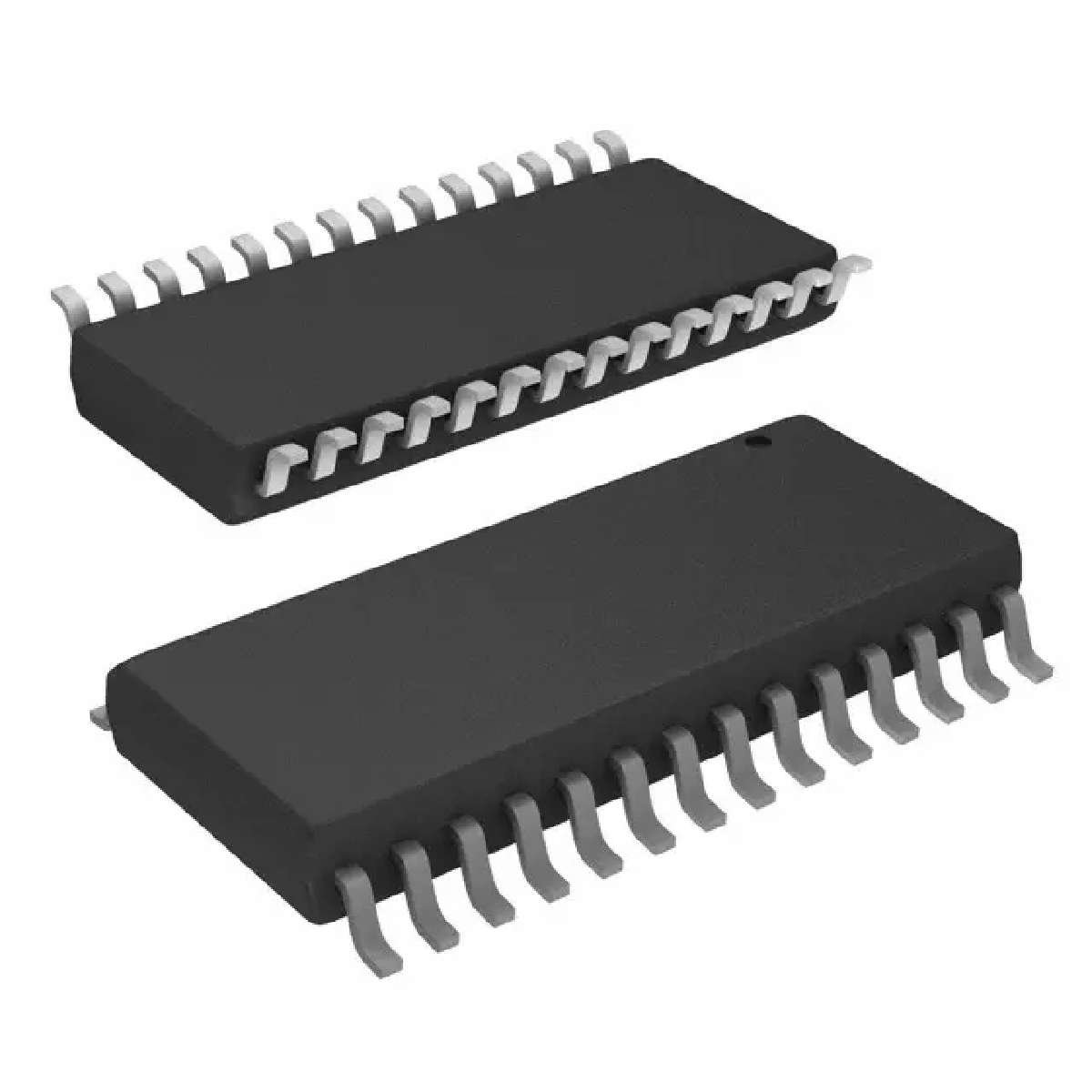

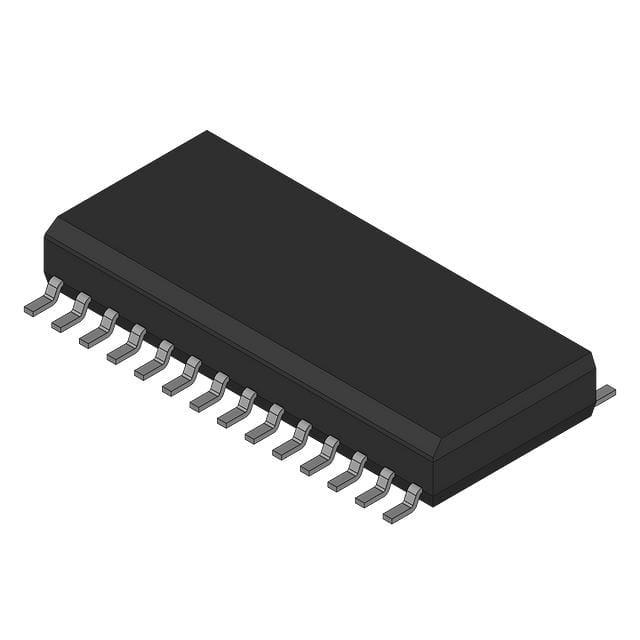

• Package Options Include Plastic Small-Outline DW Package, Ceramic Chip Carriers FK, and DIPs JT
