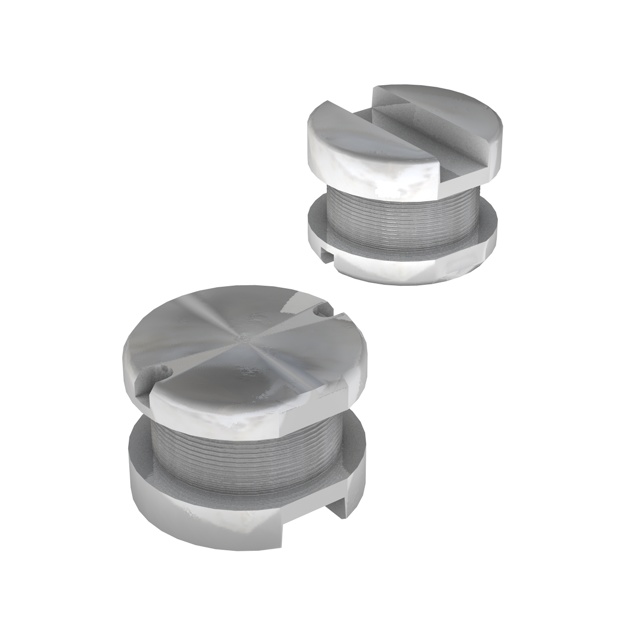

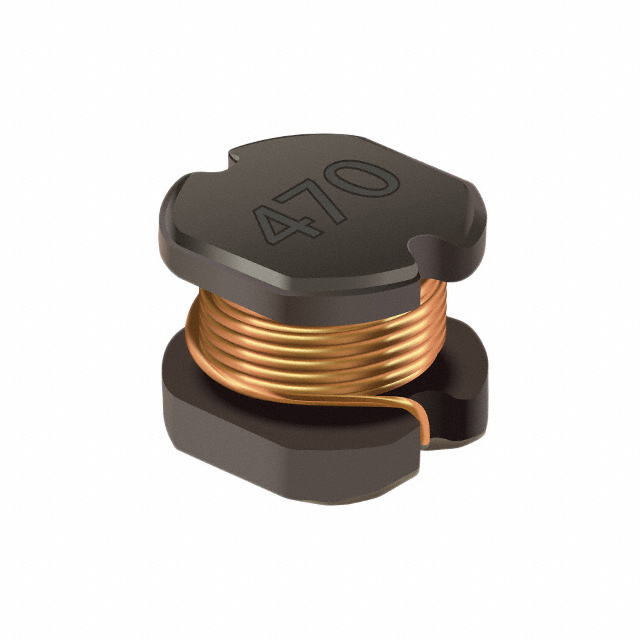

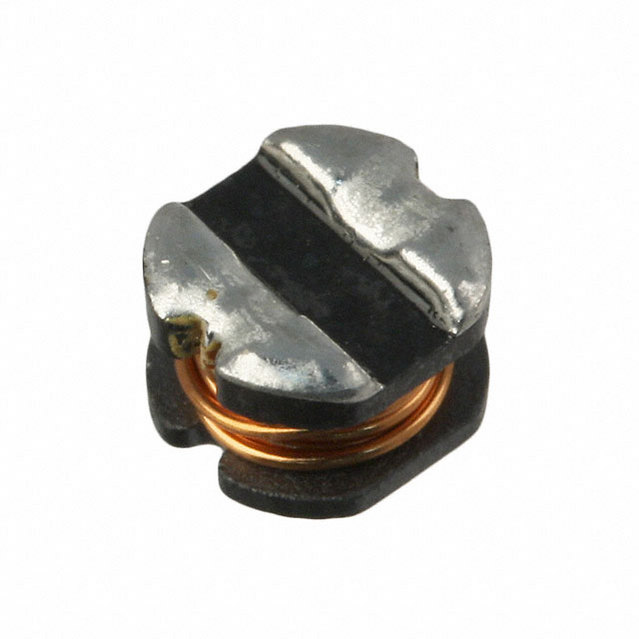

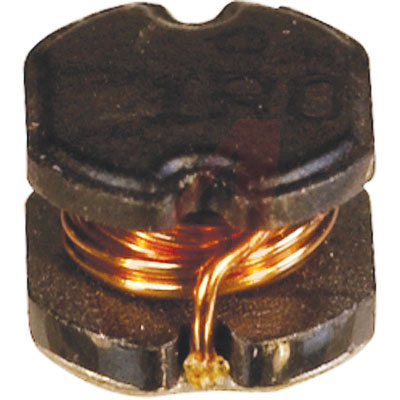

SDR0403-4R7ML

BOURNS  SDR0403-4R7ML  表面贴装功率电感器, SDR0403系列, 4.7 µH, ± 20%, 非屏蔽, 0.094 ohm, 1.7 A

SDR0403 系列线绕扼流圈

提供 E12 系列

薄型，仅 3.2mm

低值

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 4.7UH 1.7A 94 MOHM SMD

欧时:
### SDR0403 系列线绕扼流圈提供 E12 系列 薄型，仅 3.2mm 低电感值 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
4.7uH ±20% 1.7A 94mΩ

贸泽:
Fixed Inductors 4.7uH 20% SMD 0403

e络盟:
功率电感SMD, 4.7 µH, 1.7 A, 非屏蔽, 2.6 A, SDR0403 Series, 4.5mm x 4mm x 3.2mm

艾睿:
This power SDR0403-4R7ML surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 4.7u H. This product is 4.8 mm long, 3.5 mm tall and 4.3 mm deep. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 50M Hz. It has a tolerance of 20%. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 1.7 A with a maximum resistance of 94m Ohm.

Allied Electronics:
Inductor; Filter; Ind 4.7uH; Tol 20%; Cur 1.7A; SMT; Case 0403; DCR 0.094 Ohms

安富利:
Ind Power Wirewound 4.7uH 20% 1KHz 28Q-Factor Ferrite 1.7A T/R

Chip1Stop:
Ind Power Wirewound 4.7uH 20% 1KHz 28Q-Factor Ferrite 1.7A T/R

Verical:
Inductor Power Unshielded Wirewound 4.7uH 20% 1KHz 28Q-Factor Ferrite 1.7A 0.094Ohm DCR T/R

Newark:
# BOURNS  SDR0403-4R7ML  Surface Mount Power Inductor, SDR0403 Series, 4.7 µH, 1.7 A, 2.6 A, Unshielded, 0.094 ohm

MASTER:
Inductor Power Wirewound 4.7uH 20% 1KHz 28Q-Factor Ferrite 1.7A 0.094Ohm DCR T/R

Online Components:
Inductor Power Wirewound 4.7uH 20% 1KHz 28Q-Factor Ferrite 1.7A 94mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 4.7uH 20% 1KHz 28Q-Factor Ferrite 1.7A 0.094Ohm DCR T/R

Win Source:
FIXED IND 4.7UH 1.7A 94 MOHM SMD
