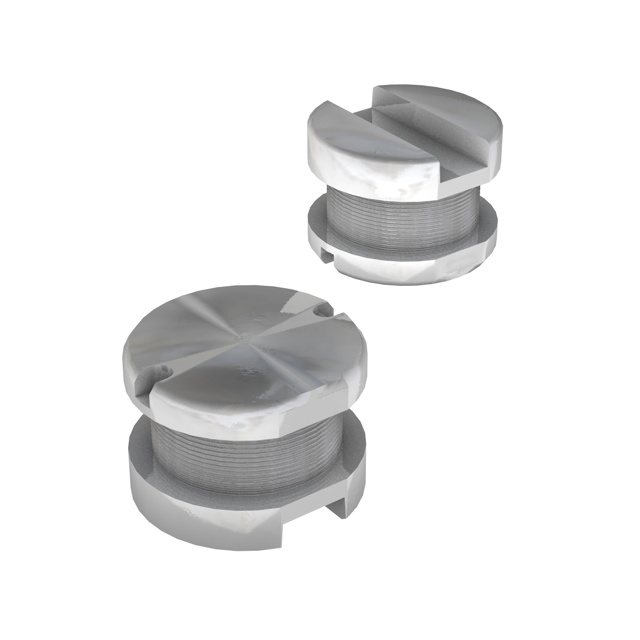

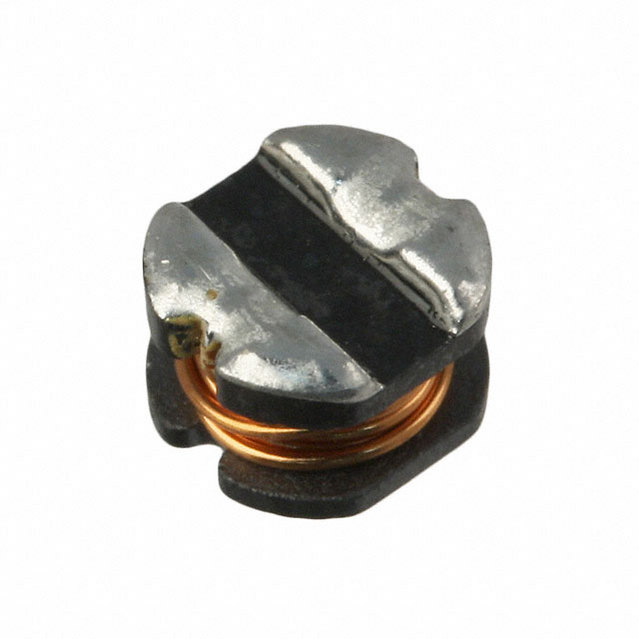

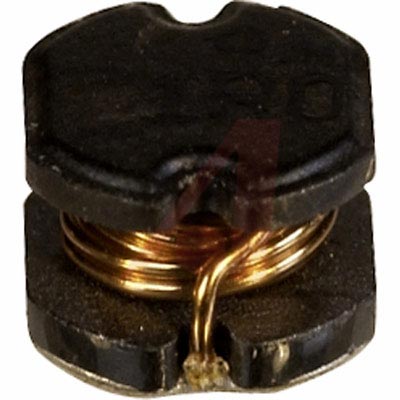

SDR0403-1R0ML

BOURNS  SDR0403-1R0ML  表面贴装功率电感器, SDR0403系列, 1 µH, ± 20%, 非屏蔽, 0.033 ohm, 3.8 A

SDR0403 系列线绕扼流圈

提供 E12 系列

薄型，仅 3.2mm

低值

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 1UH 3.8A 33 MOHM SMD

欧时:
### SDR0403 系列线绕扼流圈提供 E12 系列 薄型，仅 3.2mm 低电感值 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 1 µH, 3.8 A, 非屏蔽, 5.5 A, SDR0403系列, 4.5mm x 4mm x 3.2mm

艾睿:
An ideal space-saving electronic component is this power SDR0403-1R0ML surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 3.8 A with a maximum resistance of 33m Ohm. It has a tolerance of 20%. It has an inductance of 1u H. This product is 4.8 mm long, 3.5 mm tall and 4.3 mm deep. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 150M Hz. This device is made with wirewound technology.

Allied Electronics:
Inductor; Filter; Ind 1uH; Tol 20%; Cur 3.8A; SMT; Case 0403; DCR 0.033 Ohms

安富利:
Ind Power Wirewound 1uH 20% 1KHz 28Q-Factor Ferrite 3.8A T/R

Chip1Stop:
Ind Power Wirewound 1uH 20% 1KHz 28Q-Factor Ferrite 3.8A T/R

Verical:
Inductor Power Unshielded Wirewound 1uH 20% 1KHz 28Q-Factor Ferrite 3.8A 0.033Ohm DCR T/R

Newark:
# BOURNS  SDR0403-1R0ML  Surface Mount Power Inductor, SDR0403 Series, 1 µH, 3.8 A, 5.5 A, Unshielded, 0.033 ohm

MASTER:
Inductor Power Wirewound 1uH 20% 1KHz 28Q-Factor Ferrite 3.8A 33mOhm DCR T/R

Online Components:
Inductor Power Wirewound 1uH 20% 1KHz 28Q-Factor Ferrite 3.8A 33mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 1uH 20% 1KHz 28Q-Factor Ferrite 3.8A 33mOhm DCR T/R
