16位缓冲器/驱动器,具有三态输出 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS

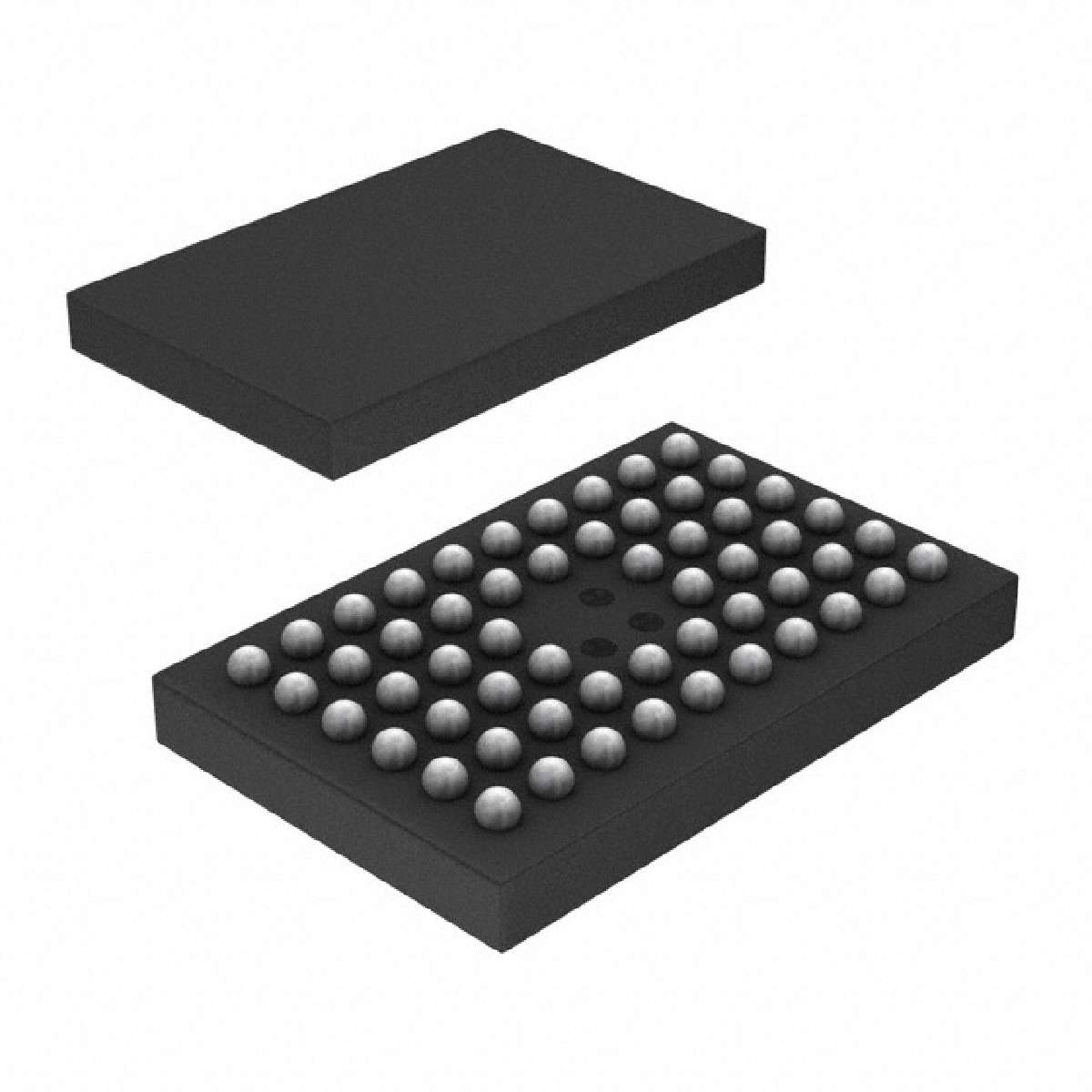

缓冲器,非反向 元件 4 位每元件 三态 Output 56-BGA MICROSTAR JUNIOR(7.0x4.5)
得捷:
IC BUFFER NON-INVERT 3.6V 56BGA
立创商城:
SN74AVC16244ZQLR
贸泽:
Buffers & Line Drivers 16B Bufr Drvr
艾睿:
Leading the input to the transmission line this SN74AVC16244ZQLR buffer and line driver by Texas Instruments will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.4 V, while its maximum is 3.6 V.
安富利:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 56-Pin BGA MICROSTAR JUNIOR T/R
Verical:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 56-Pin BGA MICROSTAR JUNIOR T/R
Win Source:
IC BUFFER NON-INVERT 3.6V 56BGA / Buffer, Non-Inverting 4 Element 4 Bit per Element 3-State Output 56-BGA Microstar Junior 7x4.5
电源电压DC 1.65V ~ 3.60V
输出接口数 16
通道数 16
位数 16
传送延迟时间 1.90 ns
电压波节 3.30 V, 2.50 V, 1.80 V, 1.50 V, 1.20 V
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.4V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.4 V
安装方式 Surface Mount
引脚数 56
封装 BGA-56
长度 7 mm
宽度 4.5 mm
高度 0.75 mm
封装 BGA-56
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AVC16244ZQLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AVC16244GQLR 德州仪器 | 完全替代 | SN74AVC16244ZQLR和SN74AVC16244GQLR的区别 |
