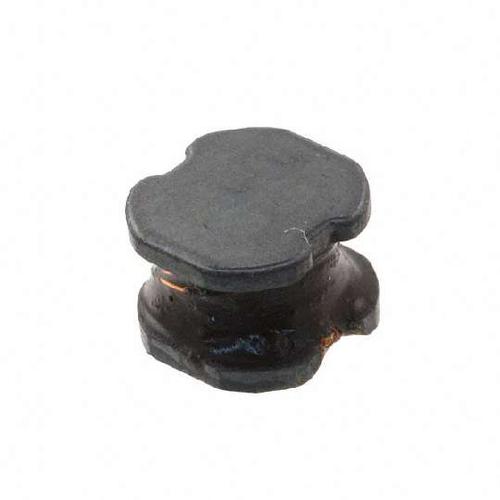

SRN6045-150M

BOURNS  SRN6045-150M.  电感, 15uH, 1.9A, ±20%

SRN6045 系列半磁性屏蔽线绕扼流圈

Bourns SRN6045 系列 SMD 半屏蔽功率器，电感范围为 1-220uH，额定电流高达 8A。适用于汽车行业，因为这些电感器符合 AEC-Q200 标准。

### 应用

汽车系统：驾驶员辅助系统、信息、照明、娱乐

直流 - 直流转换器

电源

电视

数字视频

得捷:
FIXED IND 15UH 1.9A 95.8MOHM SMD

欧时:
### SRN6045 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN6045 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4.5mm Inductance range from 1 to 100μH Rated current of up to 4.2A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
15uH ±20% 1.9A 95.8mΩ

贸泽:
Fixed Inductors 15uH 20% SMD 6045

e络盟:
功率电感SMD, 15 µH, 1.9 A, 半屏蔽, 2.3 A, SRN6045 Series, 6mm x 6mm x 4.5mm

艾睿:
Inductor Power Semi-Shielded Wirewound 15uH 20% 100KHz 17Q-Factor Ferrite 1.9A 0.0958Ohm DCR T/R

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 15 uH; Tol 20%; Cur-Rtg 1.9 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 15uH 20% 100KHz Ferrite 1.9A T/R

Verical:
Inductor Power Semi-Shielded Wirewound 15uH 20% 100KHz 17Q-Factor Ferrite 1.9A 0.0958Ohm DCR T/R

Newark:
# BOURNS  SRN6045-150M  Surface Mount Power Inductor, SRN6045 Series, 15 µH, 1.9 A, 2.3 A, Shielded, 0.0958 ohm

MASTER:
Inductor Power - Semi-Shielded - Wirewound - 6 x 6 x 4.5mm - 15 µH - 100KHz - 1.9A - 95.8m Ohm.

Online Components:
Inductor Power Semi-Shielded Wirewound 15uH 20% 100KHz 17Q-Factor Ferrite 1.9A 95.8mOhm DCR T/R

Electro Sonic:
Inductor Power - Semi-Shielded - Wirewound - 6 x 6 x 4.5mm - 15 µH - 100KHz - 1.9A - ...
