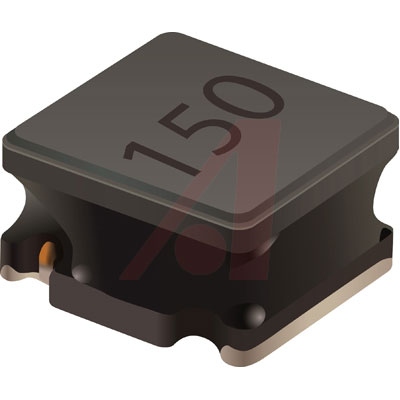

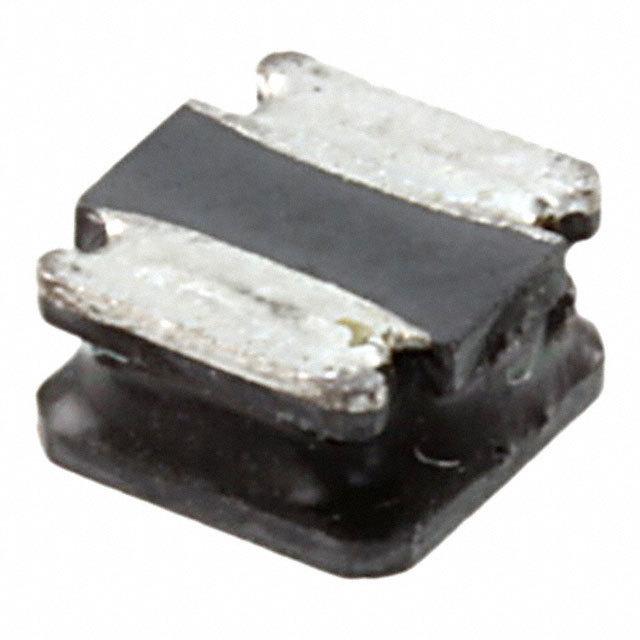

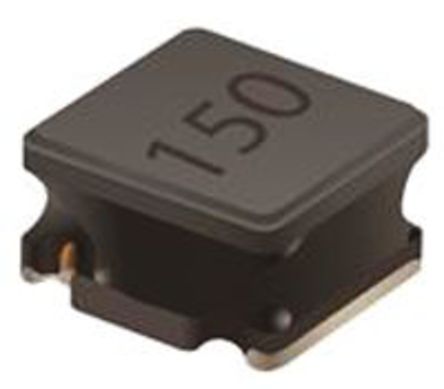

SRN4026-101M

BOURNS  SRN4026-101M  表面贴装功率电感器, SRN4026系列, 100 µH, ± 20%, 半屏蔽, 1.2 ohm, 300 mA

SRN4026 系列半磁性屏蔽式功率器

SRN4026 系列具有半屏蔽结构和微型尺寸

电感范围：1 至 220 μH

额定电流最大 3 A

应用：直流/直流转换器、笔记本电脑、数码摄像机、HDD、手机、电视和 LCD 显示屏

得捷:
FIXED IND 100UH 300MA 1.2OHM SMD

欧时:
Bourns SRN4026 系列 屏蔽 铁氧体芯材 100 μH 绕线贴片电感器 SRN4026-101M, ±20%容差, 300mA Idc

立创商城:
100uH ±20% 300mA 1.2Ω

e络盟:
功率电感SMD, 100 µH, 300 mA, 半屏蔽, 300 mA, SRN4026系列, 4mm x 4mm x 2.5mm

艾睿:
An ideal space-saving electronic component is this power SRN4026-101M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 20%. This device is made with wirewound technology. It has an inductance of 100u H. This product is 4.2 mm long, 2.5 mm tall and 4.2 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 7MTyp Hz. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 1.2 Ohm.

Allied Electronics:
SMD Semi-Shielded Power Inductor; 100uH0.3A 20% 4026

安富利:
Ind Power Semi-Shielded Wirewound 100uH 20% 100KHz Ferrite 300mA 4026 T/R

Verical:
Inductor Power Semi-Shielded Wirewound 100uH 20% 100KHz 30Q-Factor Ferrite 0.3A 1.2Ohm DCR 1515 T/R

Newark:
# BOURNS  SRN4026-101M  Surface Mount Power Inductor, SRN4026 Series, 100 µH, 300 mA, 300 mA, Semishielded, 1.2 ohm

Online Components:
Inductor Power Semi-Shielded Wirewound 100uH 20% 100KHz 30Q-Factor Ferrite 300mA 1.2Ohm DCR 1515 T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 100uH 20% 100KHz 30Q-Factor Ferrite 300mA 1.2Ohm DCR 1515 T/R
