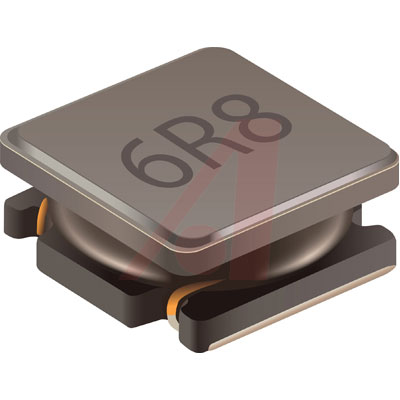

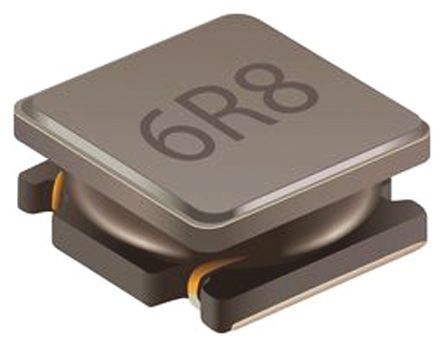

SRN6028-3R3M

BOURNS  SRN6028-3R3M  表面贴装功率电感器, SRN6028系列, 3.3 µH, ± 20%, 半屏蔽, 0.034 ohm, 3.4 A

SRN6028 系列半磁性屏蔽式功率器

Bourns SRN6028 系列提供各种尺寸，具有半屏蔽结构。

**特点和优势：**

电感范围：0.90 μH 至 100 μH

额定电流：最大 4.6 A

符合 RoHS 标准且无卤

应用：直流-直流转换器、笔记本电脑、数码摄像机、HDD、手机、电视和 LCD 显示器

得捷:
FIXED IND 3.3UH 3.4A 34 MOHM SMD

立创商城:
3.3uH ±20% 3.4A 34mΩ

欧时:
### SRN6028 系列半磁性屏蔽式功率电感器SRN6028 系列具有半屏蔽结构 电感范围：0.90 至 100 μH 额定电流：最大 4.6 A 应用：直流/直流转换器、笔记本电脑、数码摄像机、HDD、手机、电视和 LCD 显示屏 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 3.3 µH, 3.4 A, 半屏蔽, 3.6 A, SRN6028系列, 6mm x 6mm x 2.8mm

艾睿:
This power SRN6028-3R3M surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with wirewound technology. It has an inductance of 3.3u H. This SMD inductor has a maximum DC current of 3.4 A with a maximum resistance of 34m Ohm. This product is 6.2 mm long, 2.8 mm tall and 6.2 mm deep. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 42MTyp Hz.

Allied Electronics:
SMD Semi-Shielded Power Inductor; 3.3uH3.4A 20% 6028

安富利:
Ind Power Semi-Shielded Wirewound 3.3uH 20% 100KHz Ferrite 3.4A 6028 T/R

Chip1Stop:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 100KHz Ferrite 3.4A 34mOhm DCR 2424 T/R

Verical:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 100KHz 12Q-Factor Ferrite 3.4A 0.034Ohm DCR 2424 T/R

Newark:
# BOURNS  SRN6028-3R3M  Surface Mount Power Inductor, SRN6028 Series, 3.3 µH, 3.4 A, 3.6 A, Semishielded, 0.034 ohm

Online Components:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 100KHz 12Q-Factor Ferrite 3.4A 34mOhm DCR 2424 T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 3.3uH 20% 100KHz 12Q-Factor Ferrite 3.4A 34mOhm DCR 2424 T/R
