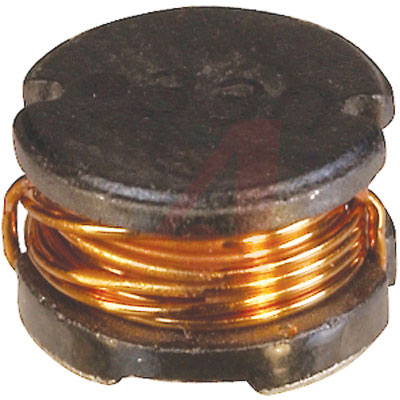

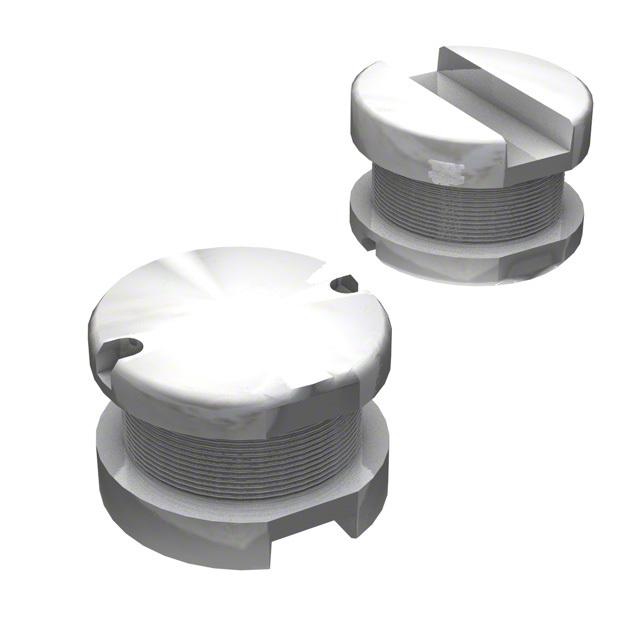

SDR0805-220ML

BOURNS  SDR0805-220ML  表面贴装功率电感器, SDR0805系列, 22 µH, ± 20%, 非屏蔽, 0.11 ohm, 1.5 A

SDR0805 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 7.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 22UH 1.5A 110 MOHM SMD

欧时:
Bourns SDR0805 系列 铁氧体芯材 22 μH 绕线贴片电感器 SDR0805-220ML, ±20%容差, 2.3A Idc Q:20

立创商城:
22uH ±20% 1.5A 110mΩ

艾睿:
This power SDR0805-220ML surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 1.5 A with a maximum resistance of 110m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 13M Hz. It has a tolerance of 20%. This device utilizes wirewound technology. It has an inductance of 22u H. This product is 5.3 mm tall with a diameter of 7.8 mm.

Allied Electronics:
SDR0805 WireWound SMDinductor w/ FerriteCore, 22 uH +/-20%WireWound 2.3A Idc Q:20

安富利:
Ind Power Wirewound 22uH 20% 1KHz 20Q-Factor Ferrite 1.5A T/R

Chip1Stop:
Inductor Power Wirewound 22uH 20% 1KHz 20Q-Factor Ferrite 1.5A 110mOhm DCR T/R

Verical:
Inductor Power Wirewound 22uH 20% 1KHz 20Q-Factor Ferrite 1.5A 0.11Ohm DCR T/R

Newark:
# BOURNS  SDR0805-220ML  Surface Mount Power Inductor, SDR0805 Series, 22 µH, 1.5 A, 2.3 A, Unshielded, 0.11 ohm

MASTER:
Inductor Power - Wirewound - 7.8 x 7.8 x 5.3mm - 22 uH - 1KHz - 1.5A - 110m Ohm.

Online Components:
Inductor Power Wirewound 22uH 20% 1KHz 20Q-Factor Ferrite 1.5A 110mOhm DCR T/R

Electro Sonic:
Inductor Power - Wirewound - 7.8 x 7.8 x 5.3mm - 22 uH - 1KHz - 1.5A - 110m Ohm.
