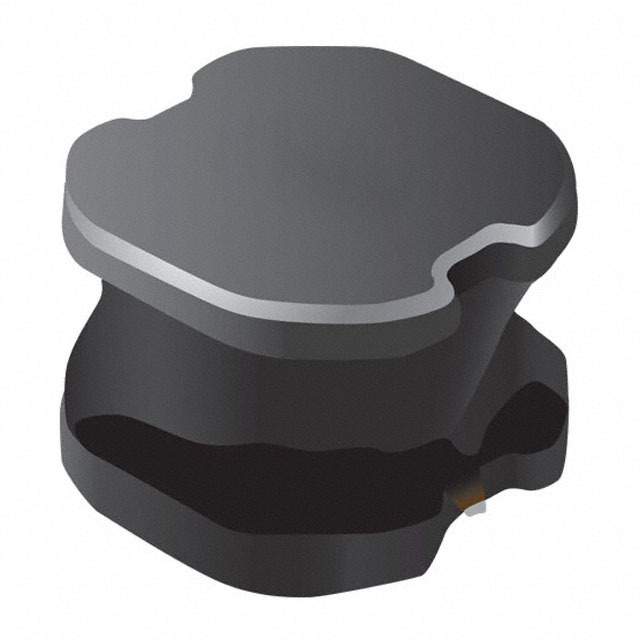

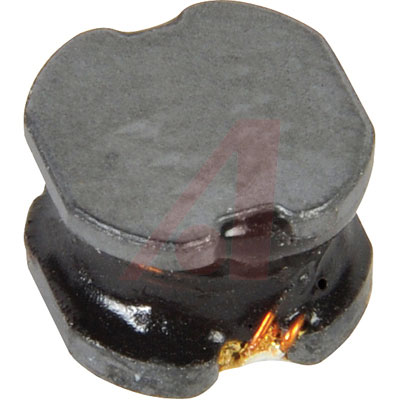

SRN6045-1R8Y

BOURNS  SRN6045-1R8Y  表面贴装功率电感器, SRN6045系列, 1.8 µH, ± 30%, 屏蔽, 0.0198 ohm, 3.7 A

SRN6045 系列半磁性屏蔽线绕扼流圈

Bourns SRN6045 系列 SMD 半屏蔽功率器，电感范围为 1-220uH，额定电流高达 8A。适用于汽车行业，因为这些电感器符合 AEC-Q200 标准。

### 应用

汽车系统：驾驶员辅助系统、信息、照明、娱乐

直流 - 直流转换器

电源

电视

数字视频

得捷:
FIXED IND 1.8UH 3.7A 19.8MOHM SM

欧时:
### SRN6045 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN6045 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4.5mm Inductance range from 1 to 100μH Rated current of up to 4.2A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
1.8uH ±30% 3.7A 19.8mΩ

e络盟:
功率电感SMD, 1.8 µH, 3.7 A, 半屏蔽, 7 A, SRN6045系列, 6mm x 6mm x 4.5mm

艾睿:
This power SRN6045-1R8Y surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 6.2 mm long, 4.5 mm tall and 6.2 mm deep. It has an inductance of 1.8u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 38MTyp Hz. This SMD inductor has a maximum DC current of 3.7 A with a maximum resistance of 19.8m Ohm. This device utilizes wirewound technology.

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 1.8 uH; Tol 30%; Cur-Rtg 3.7 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 1.8uH 30% 100KHz Ferrite 3.7A T/R

Verical:
Inductor Power Semi-Shielded Wirewound 1.8uH 30% 100KHz 15Q-Factor Ferrite 3.7A 0.0198Ohm DCR T/R

Newark:
# BOURNS  SRN6045-1R8Y  Surface Mount Power Inductor, SRN6045 Series, 1.8 µH, 3.7 A, 7 A, Shielded, 0.0198 ohm
