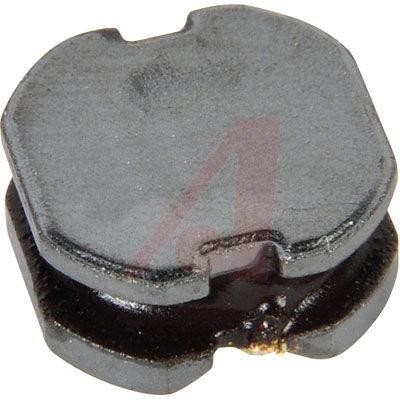

SRN8040 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN8040 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4mm Inductance range from 0.5 to 100uH Rated current of up to 10A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器(扼流圈)
SRN8040 系列半磁性屏蔽线绕扼流圈
Bourns SRN8040 系列贴片式半屏蔽功率器,电感范围为 0.5 至 330uH,额定电流高达 12A,工作温度为 -55°C 至 +125°C。这些电感器适用于汽车行业,符合 AEC-Q200 标准。
### 应用
汽车系统:驾驶员辅助系统、信息、照明、娱乐
直流 - 直流转换器
电源
电视
数字视频
### 认可
AEC-Q200
得捷:
FIXED IND 8.2UH 3.7A 45 MOHM SMD
立创商城:
8.2uH ±30% 3.7A 45mΩ
欧时:
Bourns SRN8040 系列 屏蔽 铁氧体芯材 8.2 μH 绕线贴片电感器 SRN8040-8R2Y, ±30%容差, 4A Idc
e络盟:
电感, 屏蔽, 8.2UH, 4A, SMD, 全
艾睿:
Inductor Power Semi-Shielded Wirewound 8.2uH 30% 100KHz 13Q-Factor Ferrite 3.7A 0.045Ohm DCR T/R
Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 8.2 uH; Tol 30%; Cur-Rtg 3.7 A; SMT
安富利:
Ind Power Semi-Shielded Wirewound 8.2uH 30% 100KHz Ferrite 3.7A T/R
Chip1Stop:
Ind Power Semi-Shielded Wirewound 8.2uH 30% 100KHz Ferrite 3.7A T/R
Verical:
Inductor Power Semi-Shielded Wirewound 8.2uH 30% 100KHz 13Q-Factor Ferrite 3.7A 0.045Ohm DCR T/R
Newark:
# BOURNS SRN8040-8R2Y Surface Mount Power Inductor, SRN8040 Series, 8.2 µH, 3.7 A, 4 A, Shielded, 0.045 ohm
MASTER:
Inductor Power Semi-Shielded Wirewound 8.2uH 30% 100KHz 13Q-Factor Ferrite 3.7A 45mOhm DCR T/R
Online Components:
Inductor Power Semi-Shielded Wirewound 8.2uH 30% 100KHz 13Q-Factor Ferrite 3.7A 45mOhm DCR T/R
Electro Sonic:
Inductor Power Semi-Shielded Wirewound 8.2uH 30% 100KHz 13Q-Factor Ferrite 3.7A 45mOhm DCR T/R
额定电流 3.7 A
容差 ±30 %
电感 8.2 µH
自谐频率 20 MHz
Q值 13
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤45 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.045 Ω
安装方式 Surface Mount
引脚数 2

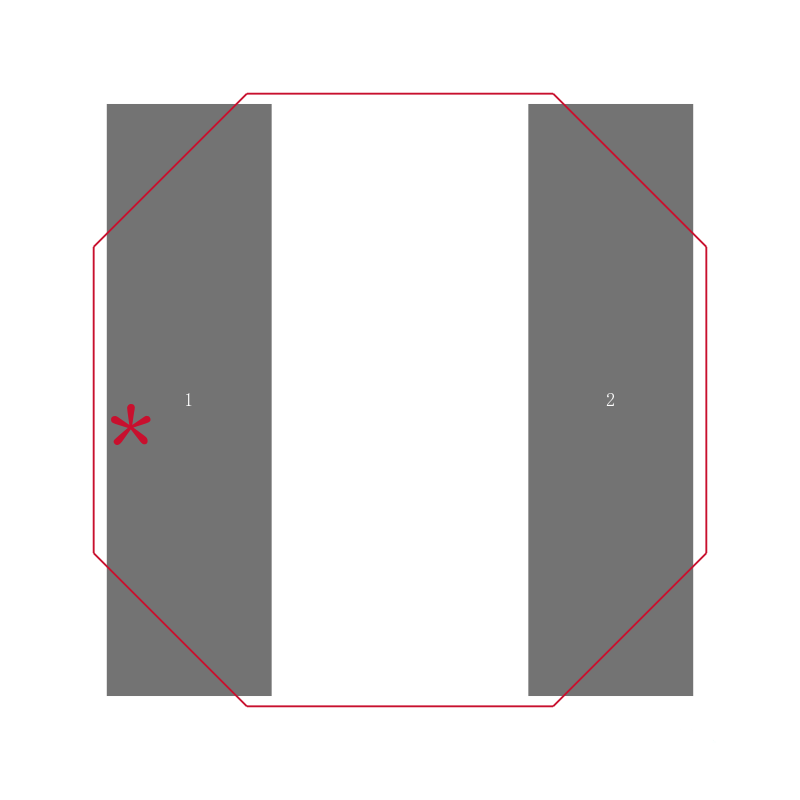

封装 8 mm x 8 mm
长度 8 mm
宽度 8.3 mm
高度 4 mm
封装 8 mm x 8 mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
香港进出口证 NLR
