SDR0805 系列线绕扼流圈提供 E12 系列 小型设计,最大直径仅 7.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器(扼流圈)
SDR0805 系列线绕扼流圈
提供 E12 系列
小型设计,最大直径仅 7.8mm
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
得捷:
FIXED IND 1.5UH 6A 20 MOHM SMD
欧时:
### SDR0805 系列线绕扼流圈提供 E12 系列 小型设计,最大直径仅 7.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器(扼流圈)
立创商城:
1.5uH ±20% 6A 20mΩ
艾睿:

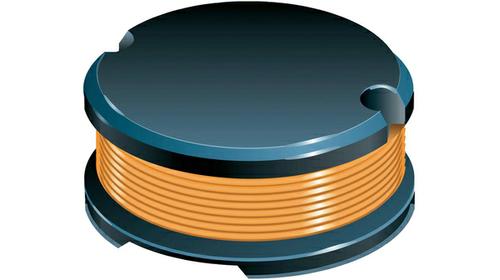

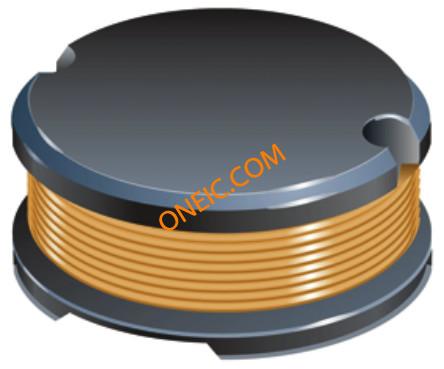

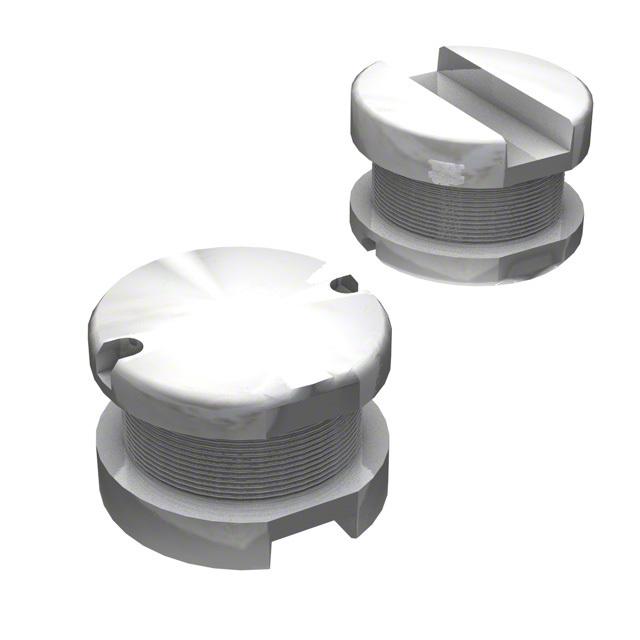

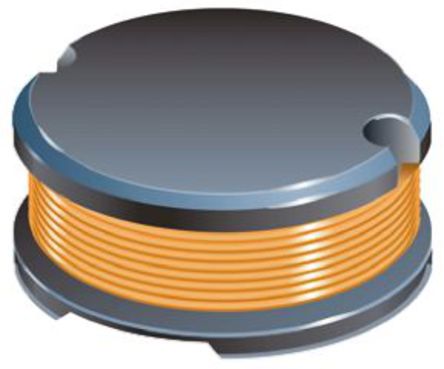

This power SDR0805-1R5ML surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes wirewound technology. It has a tolerance of 20%. This product is 5.3 mm tall with a diameter of 7.8 mm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 120M Hz. This SMD inductor has a maximum DC current of 6 A with a maximum resistance of 20m Ohm. It has an inductance of 1.5u H.
Allied Electronics:
SDR0805 WireWound SMDinductor w/FerriteCore, 1.5 uH +/-20%WireWound 9.1A Idc Q:32
安富利:
Ind Power Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 6A T/R
Chip1Stop:
Inductor Power Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 6A 20mOhm DCR T/R
Verical:
Inductor Power Unshielded Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 6A 0.02Ohm DCR T/R
Newark:
# BOURNS SDR0805-1R5ML Surface Mount Power Inductor, SDR0805 Series, 1.5 µH, 6 A, 9.1 A, Unshielded, 0.02 ohm
MASTER:
Inductor Power Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 6A 20mOhm DCR T/R
Online Components:
Inductor Power Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 6A 20mOhm DCR T/R
Electro Sonic:
Inductor Power Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 6A 20mOhm DCR T/R
额定电流 6 A
容差 ±20 %
电感 1.5 µH
自谐频率 120 MHz
Q值 32.0
共振频率 120 MHz
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤20 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.02 Ω
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 5.3 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR0805-1R5ML Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SDR0805-1R5M 伯恩斯 | 功能相似 | SDR0805-1R5ML和SDR0805-1R5M的区别 |
