SDR0403-470KL

BOURNS  SDR0403-470KL  表面贴装功率电感器, SDR0403系列, 47 µH, ± 10%, 非屏蔽, 0.84 ohm, 540 mA

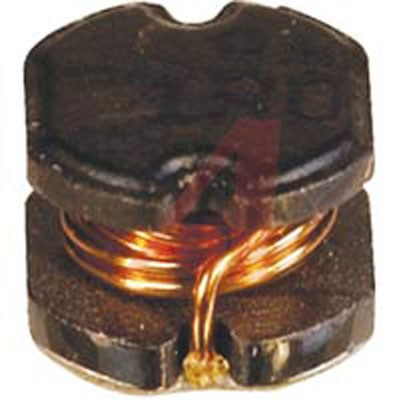

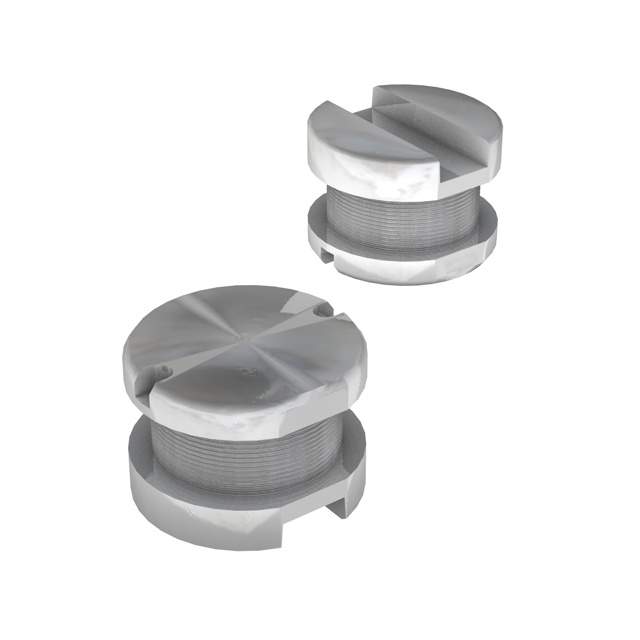

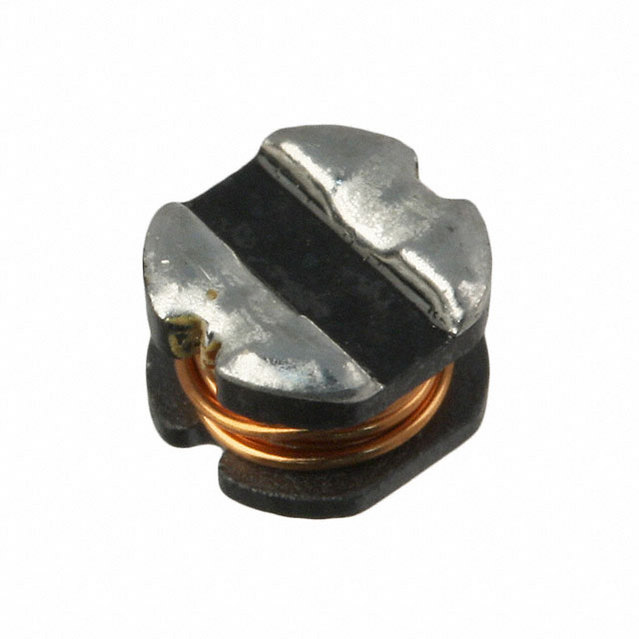

SDR0403 系列线绕扼流圈

提供 E12 系列

薄型，仅 3.2mm

低值

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 47UH 540MA 840MOHM SMD

立创商城:
47uH ±10% 540mA 840mΩ

欧时:
### SDR0403 系列线绕扼流圈提供 E12 系列 薄型，仅 3.2mm 低电感值 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 47 µH, 540 mA, 非屏蔽, 780 mA, SDR0403 Series, 4.5mm x 4mm x 3.2mm

艾睿:
This power SDR0403-470KL surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 540m A with a maximum resistance of 840m Ohm. This product is 4.8 mm long, 3.5 mm tall and 4.3 mm deep. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 13M Hz. It has a tolerance of 10%. It has an inductance of 47u H. This device utilizes wirewound technology.

Allied Electronics:
Inductor; Power; Non-Shielded; Wirewound; 47uH; 10%; 0.54A

安富利:
Ind Power Wirewound 47uH 10% 1KHz 20Q-Factor Ferrite 540mA T/R

Verical:
Inductor Power Unshielded Wirewound 47uH 10% 1KHz 20Q-Factor Ferrite 0.54A 0.84Ohm DCR T/R

Newark:
# BOURNS  SDR0403-470KL  Surface Mount Power Inductor, SDR0403 Series, 47 µH, 540 mA, 780 mA, Unshielded, 0.84 ohm

MASTER:
Inductor Power Wirewound 47uH 10% 1KHz 20Q-Factor Ferrite 540mA 840mOhm DCR T/R

Online Components:
Inductor Power Wirewound 47uH 10% 1KHz 20Q-Factor Ferrite 540mA 840mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 47uH 10% 1KHz 20Q-Factor Ferrite 540mA 840mOhm DCR T/R
