SRR7045-151M概述

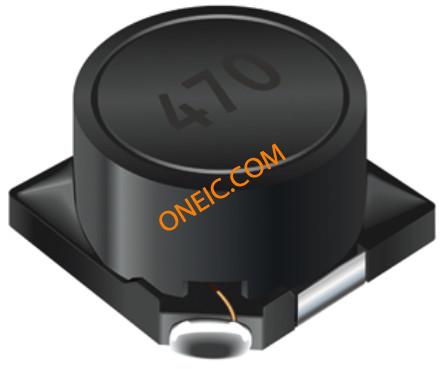

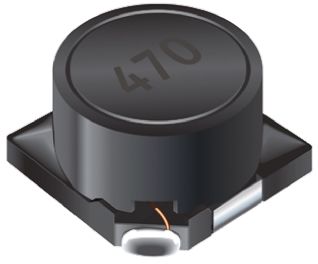

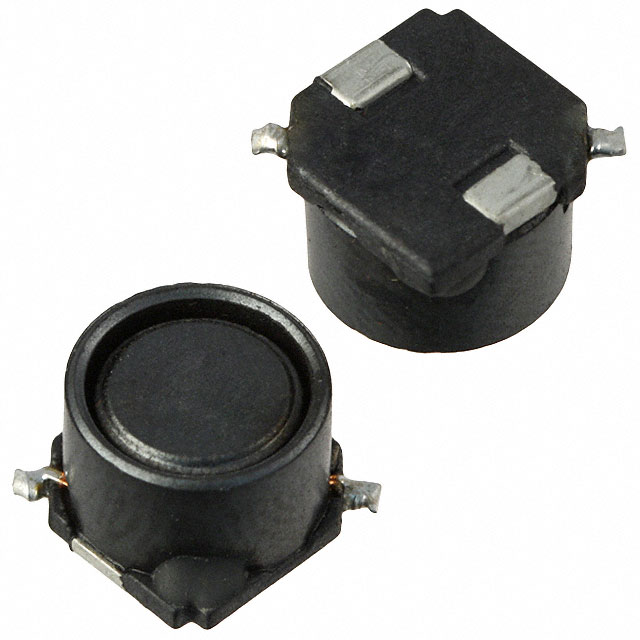

BOURNS  SRR7045-151M  电感, 150uH, 530mA, 20%, SMD

SRR7045 系列磁性屏蔽线绕器

Bourns SRR7045 系列贴片屏蔽式功率电感器。 应用包括直流/直流转换器和电源的输入/输出,适用于:便携式通信设备;摄像机;液晶电视;汽车收音机


立创商城:
150uH ±20% 530mA 480mΩ


得捷:
FIXED IND 150UH 530MA 480MOHM SM


欧时:
### SRR7045 系列磁性屏蔽线绕电感器Bourns SRR7045 系列贴片屏蔽式功率电感器。 应用包括直流/直流转换器和电源的输入/输出,适用于:便携式通信设备;摄像机;液晶电视;汽车收音机### Bourns 非标准表面安装电感器(扼流圈)


贸泽:
Fixed Inductors 150uH 20% SMD 7045


e络盟:
功率电感SMD, 150 µH, 530 mA, 屏蔽, 410 mA, SRR7045 Series, 7mm x 7mm x 4.5mm


艾睿:
This power SRR7045-151M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 7.3 mm long, 4.8 mm tall and 7.3 mm deep. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 530m A with a maximum resistance of 480m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 7MTyp Hz. It has a tolerance of 20%. It has an inductance of 150u H.


Allied Electronics:
SRR7045 WireWound SMDinductor w/FerriteCore, 150uH +/-20%WireWound 530mA Idc Q:51


安富利:
Ind Power Shielded Wirewound 150uH 20% 100KHz 51Q-Factor Ferrite 530mA T/R


Verical:
Inductor Power Shielded Wirewound 150uH 20% 1KHz 51Q-Factor Ferrite 0.53A 0.48Ohm DCR T/R


Newark:
# BOURNS  SRR7045-151M  Surface Mount Power Inductor, SRR7045 Series, 150 µH, 530 mA, 410 mA, Shielded, 0.48 ohm


MASTER:
Inductor Power Shielded Wirewound 150uH 20% 1KHz 51Q-Factor Ferrite 530mA 480mOhm DCR T/R


Online Components:
Inductor Power Shielded Wirewound 150uH 20% 1KHz 51Q-Factor Ferrite 530mA 480mOhm DCR T/R


Electro Sonic:
Inductor Power Shielded Wirewound 150uH 20% 1KHz 51Q-Factor Ferrite 530mA 480mOhm DCR T/R


SRR7045-151M中文资料参数规格
技术参数

额定电流 530 mA

容差 ±20 %

电感 150 µH

自谐频率 7 MHz

Q值 51.0

电感公差 ±20 %

测试频率 100 kHz

电阻DC) ≤480 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 0.48 Ω

封装参数

安装方式 Surface Mount

封装 7mm x 7mm x 4.5mm

外形尺寸

长度 7 mm

宽度 7 mm

高度 4.5 mm

封装 7mm x 7mm x 4.5mm

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99

HTS代码 8504508000

数据手册

SRR7045-151M引脚图与封装图

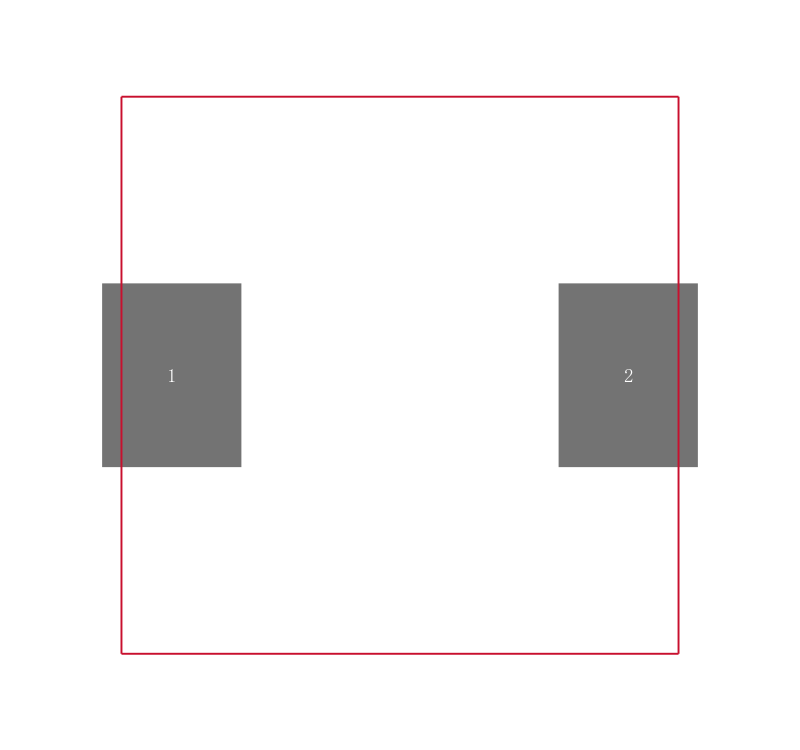

SRR7045-151M引脚图

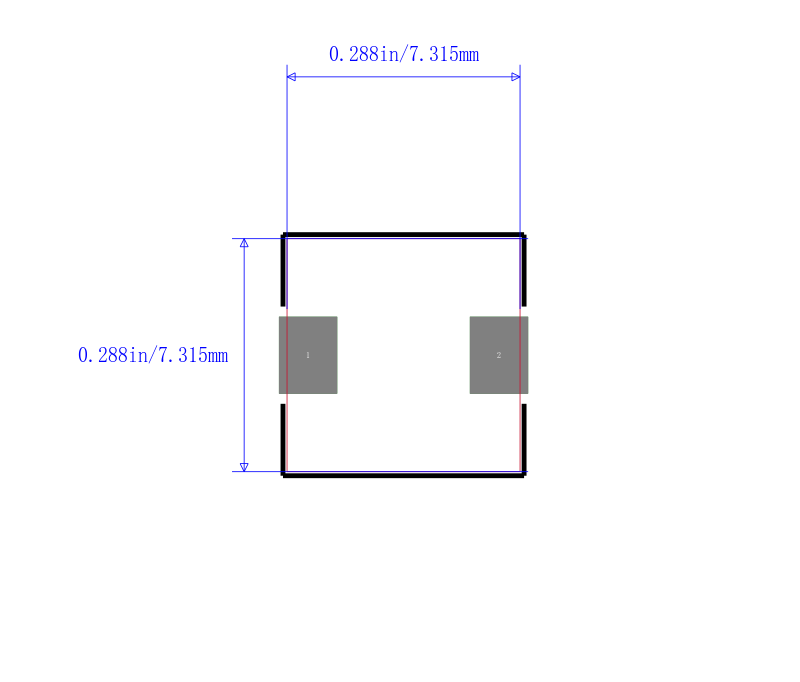

SRR7045-151M封装图
SRR7045-151M封装焊盘图
在线购买SRR7045-151M
型号: SRR7045-151M
制造商: Bourns J.W. Miller 伯恩斯
描述:BOURNS  SRR7045-151M  电感, 150uH, 530mA, 20%, SMD
替代型号SRR7045-151M
型号/品牌 代替类型 替代型号对比

SRR7045-151M

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

CDR74NP-151MC

胜美达

功能相似

SRR7045-151M和CDR74NP-151MC的区别

HM66A-0745151MLF13

Magnetics

功能相似

SRR7045-151M和HM66A-0745151MLF13的区别
