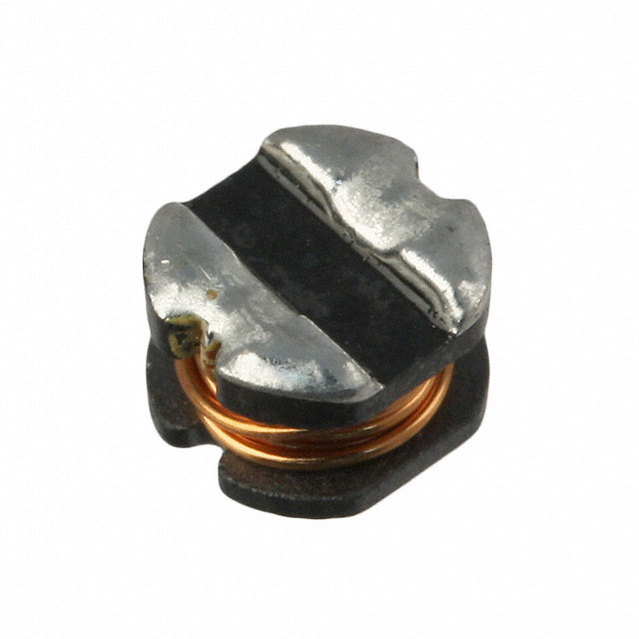

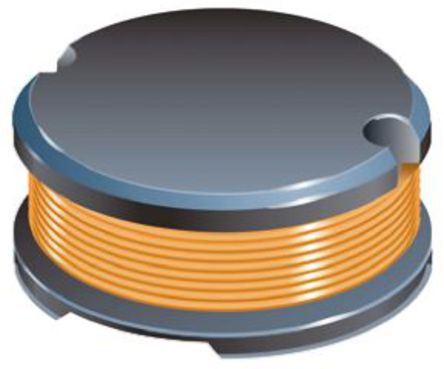

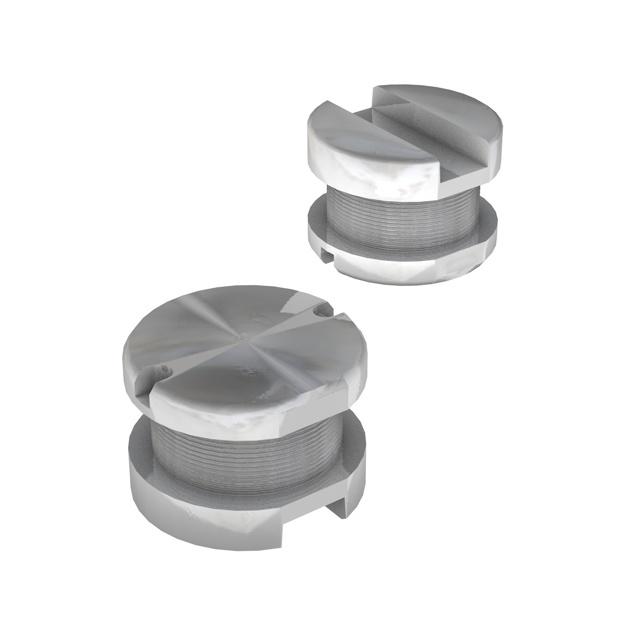

SDR0403-6R8ML

BOURNS  SDR0403-6R8ML  表面贴装功率电感器, SDR0403系列, 6.8 µH, ± 20%, 非屏蔽, 0.12 ohm, 1.41 A

SDR0403 系列线绕扼流圈

提供 E12 系列

薄型，仅 3.2mm

低值

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 6.8UH 1.41A 120MOHM SM

欧时:
### SDR0403 系列线绕扼流圈提供 E12 系列 薄型，仅 3.2mm 低电感值 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
6.8uH ±20% 1.41A 120mΩ

e络盟:
BOURNS  SDR0403-6R8ML  表面贴装功率电感器, SDR0403系列, 6.8 µH, ± 20%, 非屏蔽, 0.12 ohm, 1.41 A

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SDR0403-6R8ML surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes wirewound technology. This product is 4.8 mm long, 3.5 mm tall and 4.3 mm deep. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.41 A with a maximum resistance of 120m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 40M Hz. It has an inductance of 6.8u H.

Allied Electronics:
SDR0403 WireWound SMDinductor w/FerriteCore, 6.8 uH +/-20%WireWound 2.1A Idc Q:28

安富利:
Ind Power Wirewound 6.8uH 20% 1KHz 28Q-Factor Ferrite 1.41A T/R

Chip1Stop:
Inductor Power Wirewound 6.8uH 20% 1KHz 28Q-Factor Ferrite 1.41A 120mOhm DCR T/R

Verical:
Inductor Power Unshielded Wirewound 6.8uH 20% 1KHz 28Q-Factor Ferrite 1.41A 0.12Ohm DCR T/R

Newark:
# BOURNS  SDR0403-6R8ML  Surface Mount Power Inductor, SDR0403 Series, 6.8 µH, 1.41 A, 2.1 A, Unshielded, 0.12 ohm

MASTER:
Inductor Power Wirewound 6.8uH 20% 1KHz 28Q-Factor Ferrite 1.41A 120mOhm DCR T/R

Online Components:
Inductor Power Wirewound 6.8uH 20% 1KHz 28Q-Factor Ferrite 1.41A 120mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 6.8uH 20% 1KHz 28Q-Factor Ferrite 1.41A 120mOhm DCR T/R

Win Source:
FIXED IND 6.8UH 1.41A 120 MOHM
