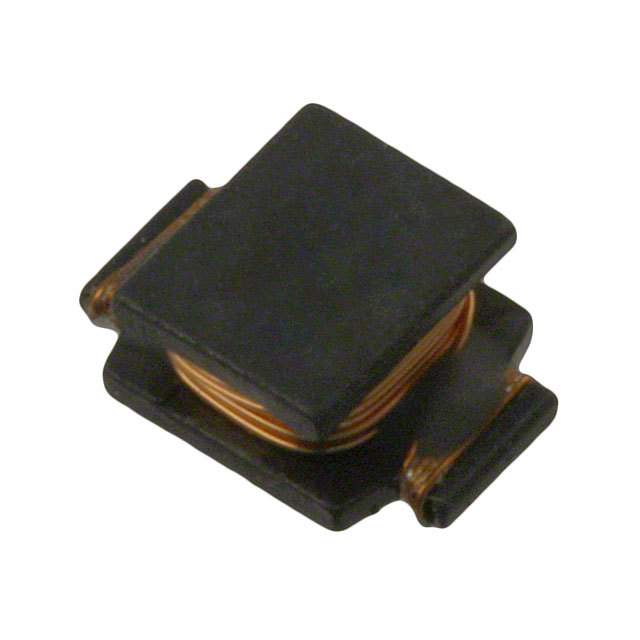

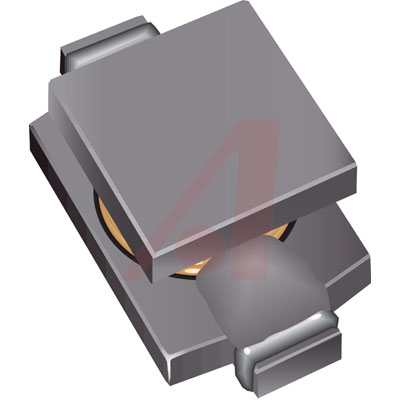

SMD功率电感 SMD Power Inductors
**Features:
**
* Low Height of Only 2.7 mm
* High ISAT of 3.2 Amps**
Applications:
**
* Input/Output of DC/DC Converters
* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios
立创商城:
390uH ±10% 140mA 6.2Ω
得捷:
FIXED IND 390UH 140MA 6.2OHM SMD
艾睿:
An ideal space-saving electronic component is this power SDR0703-391KL surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 6.8 mm long, 2.9 mm tall and 4.7 mm deep. It has an inductance of 390u H. This SMD inductor has a maximum DC current of 140m A with a maximum resistance of 6.2 Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 5.5M Hz. It has a tolerance of 10%. This device is made with wirewound technology.
Allied Electronics:
Inductor; Power Wirewound; 390uH; 140mA; 10%; SMD
安富利:
Ind Power Wirewound 390uH 10% 100KHz 36Q-Factor Ferrite 140mA T/R
Verical:
Inductor Power Wirewound 390uH 10% 100KHz 36Q-Factor Ferrite 0.14A 6.2Ohm DCR T/R
Online Components:
Inductor Power Wirewound 390uH 10% 100KHz 36Q-Factor Ferrite 140mA 6.2Ohm DCR T/R
Electro Sonic:
Inductor Power Wirewound 390uH 10% 100KHz 36Q-Factor Ferrite 140mA 6.2Ohm DCR T/R
额定电流 140 mA
容差 ±10 %
电感 390 µH
自谐频率 5.5 MHz
Q值 36
屏蔽 No
电感公差 ±10 %
测试频率 100 kHz
电阻DC) 6.2 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 6.2 Ω
安装方式 Surface Mount
封装 0.256" L x 0.177" W x 0.106" H 6.50mm x 4.50mm x 2.70mm
宽度 4.5 mm
高度 2.9 mm
封装 0.256" L x 0.177" W x 0.106" H 6.50mm x 4.50mm x 2.70mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
