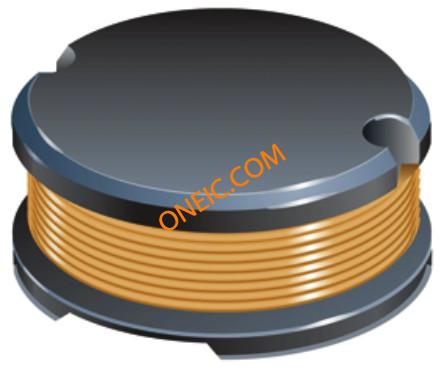

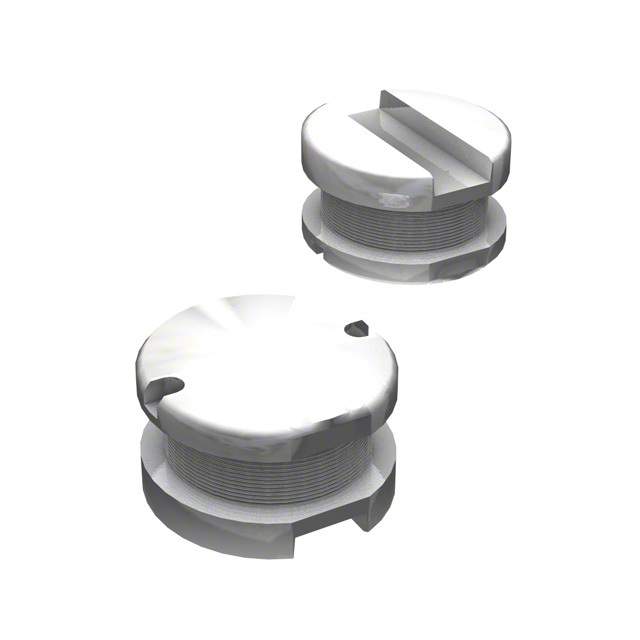

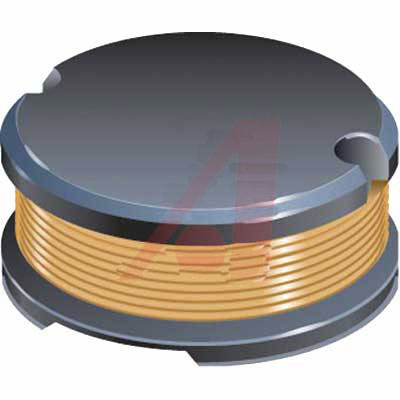

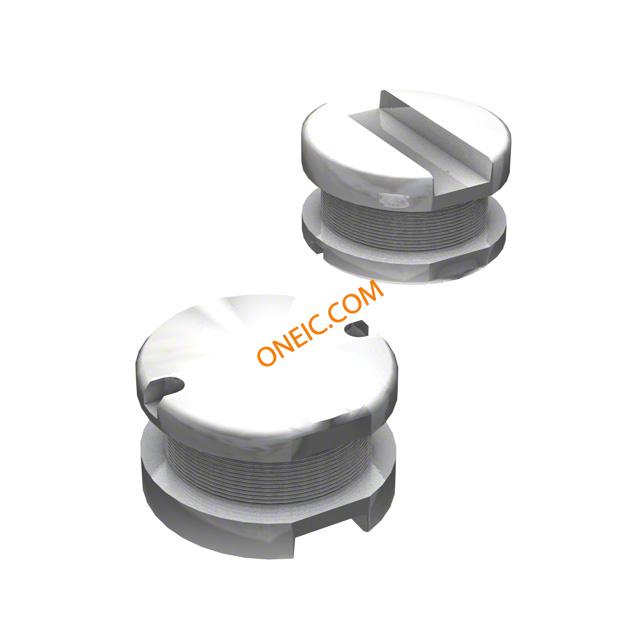

SDR1006-220ML

BOURNS  SDR1006-220ML  表面贴装功率电感器, SDR1006系列, 22 µH, ± 20%, 非屏蔽, 0.1 ohm, 1.95 A

SDR1006 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 9.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 22UH 1.95A 100MOHM SMD

立创商城:
22uH ±20% 1.95A 100mΩ

欧时:
Bourns SDR1006 系列 铁氧体芯材 22 μH 绕线贴片电感器 SDR1006-220ML, ±20%容差, 3.5A Idc Q:25

贸泽:
Fixed Inductors 22uH 20% SMD 1006

e络盟:
功率电感SMD, 22 µH, 1.95 A, 非屏蔽, 3.5 A, SDR1006系列, 9.8mm x 9.8mm x 5.8mm

艾睿:
This power SDR1006-220ML surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 5.8 mm tall with a diameter of 9.8 mm. This SMD inductor has a maximum DC current of 1.95 A with a maximum resistance of 100m Ohm. It has an inductance of 22u H. It has a tolerance of 20%. This device is made with wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 13M Hz.

Allied Electronics:
Inductor; Filter; Ind 22uH; Tol 20%; Cur 1.95A; Power SMT; Case1006; DCR 0.10 Ohms

安富利:
Ind Power Wirewound 22uH 20% 1KHz 25Q-Factor Ferrite 1.95A T/R

Chip1Stop:
Ind Power Wirewound 22uH 20% 1KHz 25Q-Factor Ferrite 1.95A T/R

TME:
Inductor: wire; SMD; 22uH; 1.95A; ±20%; Q:25; Ø:10mm; H:6mm; 100mΩ

Verical:
Inductor Power Unshielded Wirewound 22uH 20% 1KHz 25Q-Factor Ferrite 1.95A 0.1Ohm DCR T/R

Newark:
# BOURNS  SDR1006-220ML  Surface Mount Power Inductor, SDR1006 Series, 22 µH, 1.95 A, 3.5 A, Unshielded, 0.1 ohm

MASTER:
Inductor Power Wirewound 22uH 20% 1KHz 25Q-Factor Ferrite 1.95A 100mOhm DCR T/R

Online Components:
Inductor Power Wirewound 22uH 20% 1KHz 25Q-Factor Ferrite 1.95A 100mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 22uH 20% 1KHz 25Q-Factor Ferrite 1.95A 100mOhm DCR T/R
