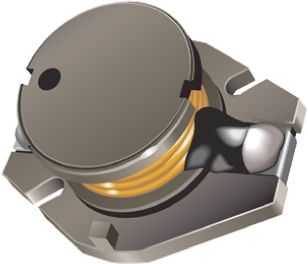

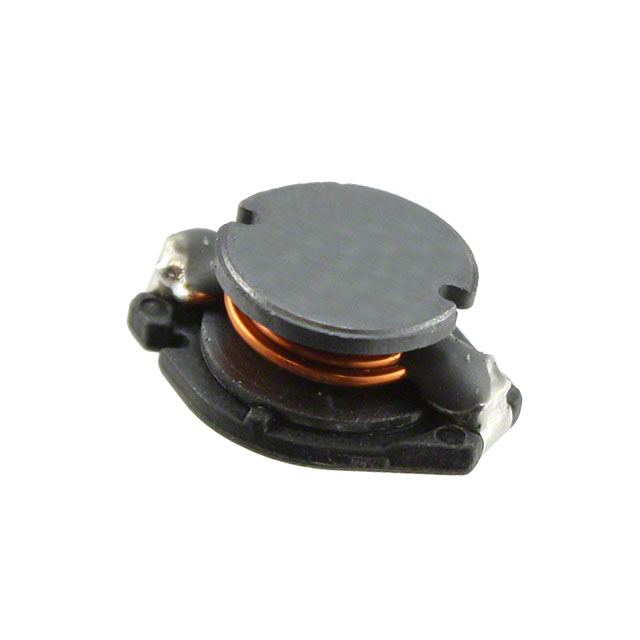

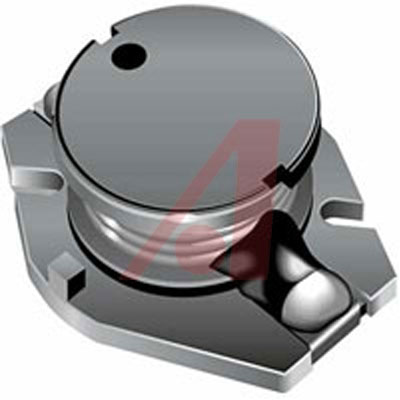

BOURNS SDR1005-3R3ML 表面贴装功率电感器, SDR1005系列, 3.3 µH, ± 20%, 非屏蔽, 0.015 ohm, 5 A
SDR1005 系列线绕扼流圈
提供 E6 系列
薄型,仅 5.0mm
低至 0.68μH
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
得捷:
FIXED IND 3.3UH 5A 15 MOHM SMD
欧时:
### SDR1005 系列线绕扼流圈提供 E6 系列 薄型,仅 5.0mm 电感低至 0.68μH 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器(扼流圈)
立创商城:
3.3uH ±20% 5A 15mΩ
贸泽:
Fixed Inductors 3.3uH 20% SMD 1005
e络盟:
功率电感SMD, 3.3 µH, 5 A, 非屏蔽, 6.4 A, SDR1005系列, 12.7mm x 10mm x 5mm
艾睿:
Save valuable space on a PCB with this power SDR1005-3R3ML surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 54M Hz. This SMD inductor has a maximum DC current of 5 A with a maximum resistance of 15m Ohm. It has an inductance of 3.3u H. This device utilizes wirewound technology. It has a tolerance of 20%. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep.
Allied Electronics:
Inductor; Power; Non-Shielded; Wirewound; 3.3uH; 20%; 5A
安富利:
Ind Power Wirewound 3.3uH 20% 1KHz 45Q-Factor Ferrite 5A T/R
Verical:
Inductor Power Unshielded Wirewound 3.3uH 20% 1KHz 45Q-Factor Ferrite 5A 0.015Ohm DCR T/R
Newark:
# BOURNS SDR1005-3R3ML Surface Mount Power Inductor, SDR1005 Series, 3.3 µH, 5 A, 6.4 A, Unshielded, 0.015 ohm
MASTER:
Inductor Power Wirewound 3.3uH 20% 1KHz 45Q-Factor Ferrite 5A 15mOhm DCR T/R
Online Components:
Inductor Power Wirewound 3.3uH 20% 1KHz 45Q-Factor Ferrite 5A 15mOhm DCR T/R
Electro Sonic:
Inductor Power Wirewound 3.3uH 20% 1KHz 45Q-Factor Ferrite 5A 15mOhm DCR T/R
Win Source:
FIXED IND 3.3UH 5A 15 MOHM SMD / 3.3 µH Unshielded Drum Core, Wirewound Inductor 5 A 15mOhm Max Nonstandard
额定电流 5 A
容差 ±20 %
电感 3.3 µH
自谐频率 54 MHz
Q值 50.0
共振频率 54.0 MHz
屏蔽 No
电感公差 ±20 %
测试频率 1 kHz
电阻DC) 0.015 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.015 Ω
安装方式 Surface Mount
引脚数 2
封装 1005
长度 12.7 mm
宽度 10 mm
高度 5.3 mm
封装 1005
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 车用, 通信与网络, 便携式器材, 消费电子产品, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR1005-3R3ML Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
HM71-303R3LFTR TT Electronics/BI | 类似代替 | SDR1005-3R3ML和HM71-303R3LFTR的区别 |
DO3316P-332MLD 线艺 | 功能相似 | SDR1005-3R3ML和DO3316P-332MLD的区别 |
SDR1005-3R3M 伯恩斯 | 功能相似 | SDR1005-3R3ML和SDR1005-3R3M的区别 |
