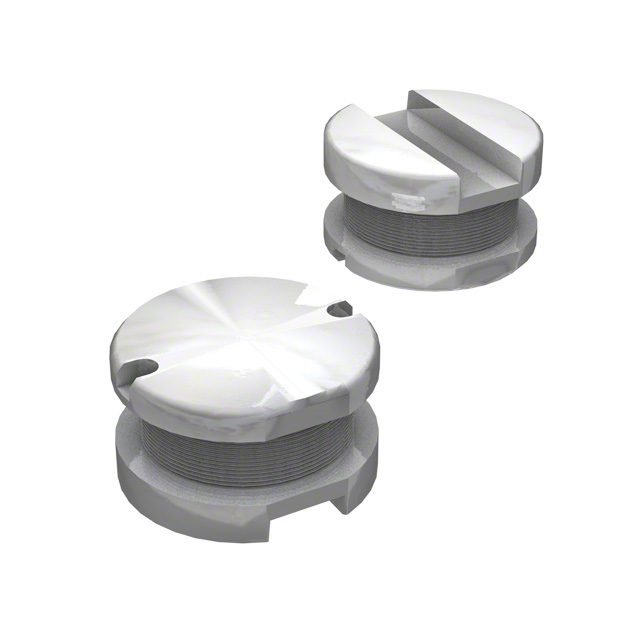

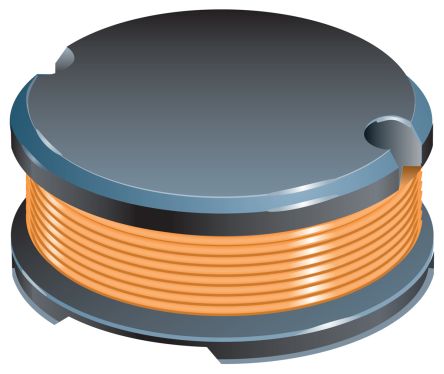

BOURNS SDR0503-221KL. 功率电感, 220uH, 10%容差, 100封装
SDR0503 系列线绕扼流圈
提供 E12 系列
薄型,仅 3.3mm
高 15mH
符合 RoHS
应用于直流/直流转换器的输入/输出以及电源
立创商城:
220uH ±10% 250mA 2.5Ω
欧时:
Bourns SDR0503 系列 铁氧体芯材 220 μH 绕线贴片电感器 SDR0503-221KL, 250mA Idc Q:35
得捷:
FIXED IND 220UH 250MA 2.5OHM SMD
e络盟:
功率电感SMD, 220 µH, 250 mA, 非屏蔽, 340 mA, SDR0503系列, 5mm x 4.8mm x 3mm
艾睿:
Make any circuit look clean and compact using this power SDR0503-221KL surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 10%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 6M Hz. This product is 5.3 mm long, 3.3 mm tall and 5.1 mm deep. This SMD inductor has a maximum DC current of 250m A with a maximum resistance of 2.5 Ohm. It has an inductance of 220u H. This device utilizes wirewound technology.
安富利:
Ind Power Wirewound 220uH 10% 1KHz 35Q-Factor Ferrite 250mA T/R
Chip1Stop:
Inductor Power Wirewound 220uH 10% 1KHz 35Q-Factor Ferrite 250mA 2.5Ohm DCR T/R
Verical:
Inductor Power Wirewound 220uH 10% 1KHz 35Q-Factor Ferrite 0.25A 2.5Ohm DCR Automotive T/R
Newark:
# BOURNS SDR0503-221KL Surface Mount Power Inductor, SDR0503 Series, 220 µH, 250 mA, 340 mA, Unshielded, 2.5 ohm
Online Components:
Inductor Power Wirewound 220uH 10% 1KHz 35Q-Factor Ferrite 250mA 2.5Ohm DCR Automotive T/R
Electro Sonic:
Inductor Power Wirewound 220uH 10% 1KHz 35Q-Factor Ferrite 250mA 2.5Ohm DCR Automotive T/R
额定电流 250 mA
容差 ±10 %
电感 220 µH
自谐频率 6 MHz
Q值 35.0
电感公差 ±10 %
测试频率 1 kHz
电阻DC) 2.5 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 2.5 Ω
安装方式 Surface Mount
引脚数 2
封装 0503
长度 5 mm
宽度 4.8 mm
高度 3 mm
封装 0503
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR0503-221KL Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SDR0503-221K 伯恩斯 | 功能相似 | SDR0503-221KL和SDR0503-221K的区别 |
