SDR0805-5R6ML概述

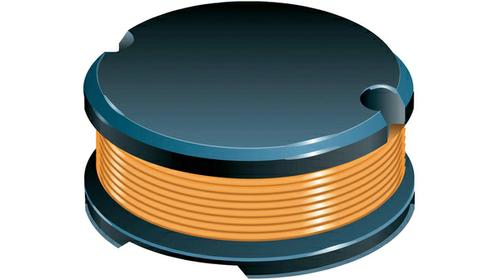

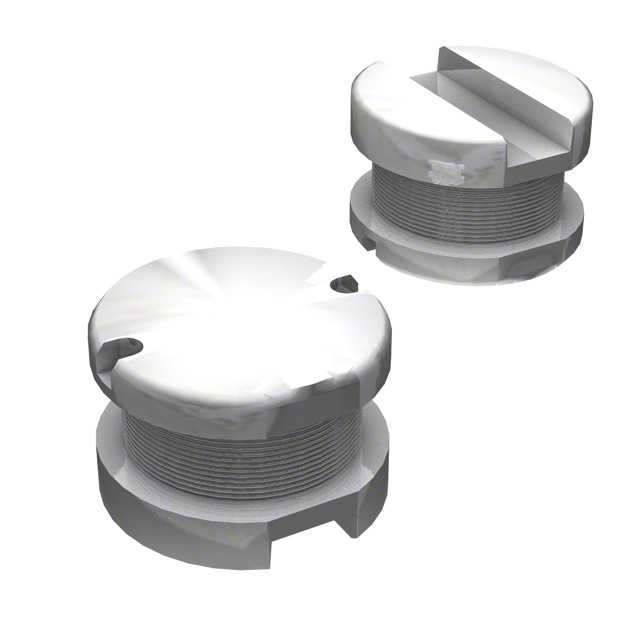

BOURNS  SDR0805-5R6ML  表面贴装功率电感器, SDR0805系列, 5.6 µH, ± 20%, 非屏蔽, 0.04 ohm, 3.5 A

SDR0805 系列线绕扼流圈

提供 E12 系列

小型设计,最大直径仅 7.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源


得捷:
FIXED IND 5.6UH 3.5A 40 MOHM SMD


欧时:
### SDR0805 系列线绕扼流圈提供 E12 系列 小型设计,最大直径仅 7.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器(扼流圈)


e络盟:
功率电感SMD, 5.6 µH, 3.5 A, 非屏蔽, 4.6 A, SDR0805系列, 7.8mm x 7.8mm x 5.3mm


艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SDR0805-5R6ML surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 3.5 A with a maximum resistance of 40m Ohm. It has an inductance of 5.6u H. This device is made with wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 34M Hz. It has a tolerance of 20%. This product is 5.3 mm tall with a diameter of 7.8 mm.


Allied Electronics:
WireWound SMD Inductor w/ FerriteCore; 5.6 uH +/-20%WireWound 3.5A Idc


安富利:
Ind Power Wirewound 5.6uH 20% 1KHz 31Q-Factor Ferrite 3.5A T/R


Verical:
Inductor Power Unshielded Wirewound 5.6uH 20% 1KHz 31Q-Factor Ferrite 3.5A 0.04Ohm DCR T/R


MASTER:
Inductor Power Wirewound 5.6uH 20% 1KHz 31Q-Factor Ferrite 3.5A 40mOhm DCR T/R


Online Components:
Inductor Power Wirewound 5.6uH 20% 1KHz 31Q-Factor Ferrite 3.5A 40mOhm DCR T/R


Electro Sonic:
Inductor Power Wirewound 5.6uH 20% 1KHz 31Q-Factor Ferrite 3.5A 40mOhm DCR T/R


SDR0805-5R6ML中文资料参数规格
技术参数

额定电流 3.5 A

容差 ±20 %

电感 5.6 µH

自谐频率 34 MHz

Q值 31.0

电感公差 ±20 %

测试频率 1 kHz

电阻DC) ≤40 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 40 mΩ

封装参数

安装方式 Surface Mount

封装 7.8mm x 7.8mm x 5.3mm

外形尺寸

长度 7.8 mm

高度 5.3 mm

封装 7.8mm x 7.8mm x 5.3mm

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99

HTS代码 8504508000

数据手册

SDR0805-5R6ML引脚图与封装图
SDR0805-5R6ML引脚图

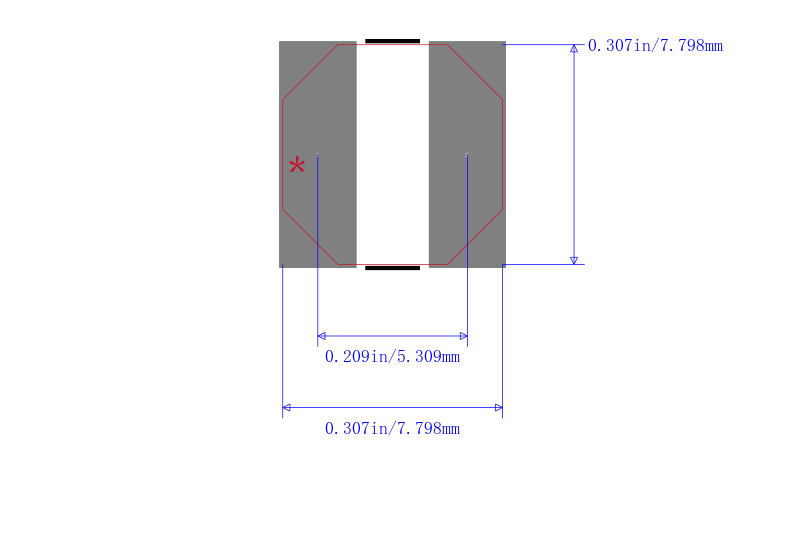

SDR0805-5R6ML封装图

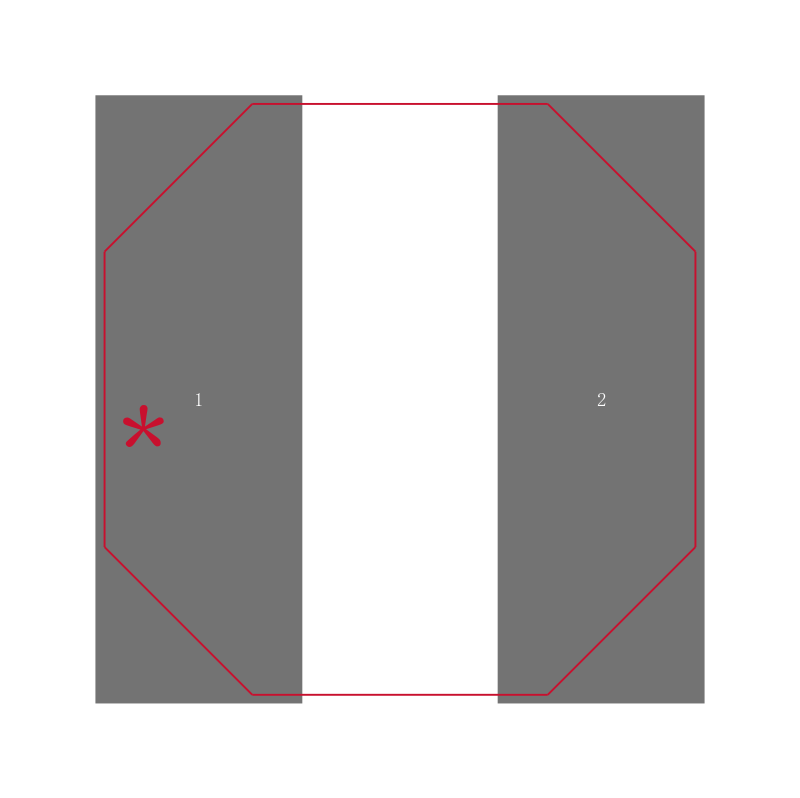

SDR0805-5R6ML封装焊盘图
在线购买SDR0805-5R6ML
型号: SDR0805-5R6ML
制造商: Bourns J.W. Miller 伯恩斯
描述:BOURNS  SDR0805-5R6ML  表面贴装功率电感器, SDR0805系列, 5.6 µH, ± 20%, 非屏蔽, 0.04 ohm, 3.5 A
替代型号SDR0805-5R6ML
型号/品牌 代替类型 替代型号对比

SDR0805-5R6ML

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

SDR0805-5R6M

伯恩斯

功能相似

SDR0805-5R6ML和SDR0805-5R6M的区别
