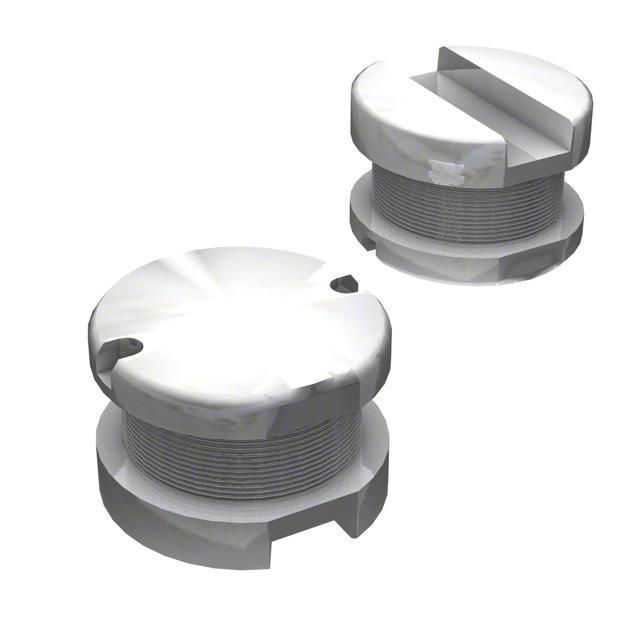

SDR0805-122KL

BOURNS  SDR0805-122KL  表面贴装功率电感器, SDR0805系列, 1.2 mH, ± 10%, 非屏蔽, 6.8 ohm, 170 mA

SDR0805 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 7.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 1.2MH 170MA 6.8OHM SMD

欧时:
### SDR0805 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 7.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 1.2 mH, 170 mA, 非屏蔽, 280 mA, SDR0805系列, 7.8mm x 7.8mm x 5.3mm

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SDR0805-122KL surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 10%. It has an inductance of 1.2m H. This product is 5.3 mm tall with a diameter of 7.8 mm. This device utilizes wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2M Hz. This SMD inductor has a maximum DC current of 170m A with a maximum resistance of 6.8 Ohm.

Allied Electronics:
SDR0805 WireWound SMDinductor w/ FerriteCore, 1.2 mH +/-10%WireWound 170mA Idc

安富利:
Ind Power Wirewound 1.2mH 10% 1KHz 28Q-Factor Ferrite 170mA T/R

Chip1Stop:
Inductor Power Wirewound 1.2mH 10% 1KHz 28Q-Factor Ferrite 170mA 6.8Ohm DCR T/R

Newark:
# BOURNS  SDR0805-122KL  Surface Mount Power Inductor, SDR0805 Series, 1.2 mH, 10%, Unshielded, 6.8 ohm, 170 mA

Online Components:
Inductor Power Wirewound 1.2mH 10% 1KHz 28Q-Factor Ferrite 170mA 6.8Ohm DCR T/R

Electro Sonic:
Inductor Power Wirewound 1.2mH 10% 1KHz 28Q-Factor Ferrite 170mA 6.8Ohm DCR T/R

Win Source:
FIXED IND 1.2MH 170MA 6.8 OHM
