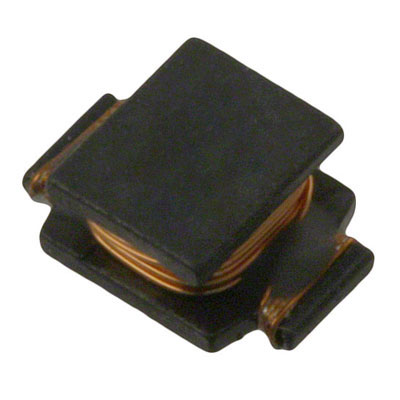

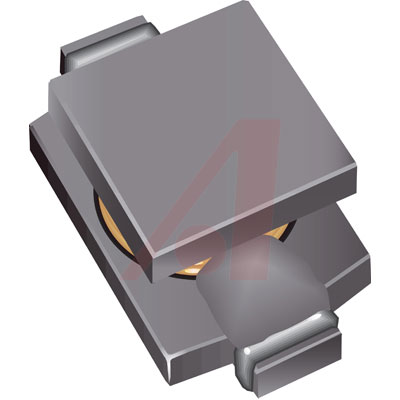

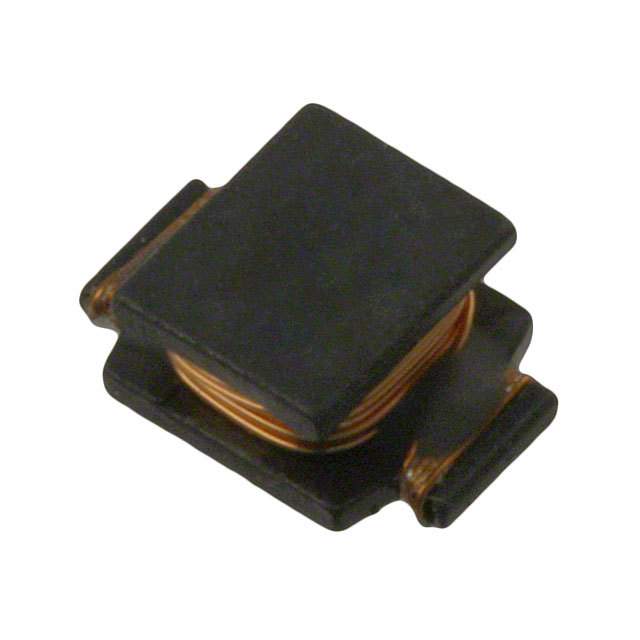

SDR0703-4R7ML

BOURNS  SDR0703-4R7ML  表面贴装功率电感器, SDR0703系列, 4.7 µH, ± 20%, 非屏蔽, 0.1 ohm, 1.5 A

**Features:

**

* Low Height of Only 2.7 mm

* High ISAT of 3.2 Amps**

Applications:

**

* Input/Output of DC/DC Converters

* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios

得捷:
FIXED IND 4.7UH 1.5A 100MOHM SMD

立创商城:
4.7uH ±20% 1.5A 100mΩ

e络盟:
功率电感SMD, 4.7 µH, 1.5 A, 非屏蔽, 2.1 A, SDR0703系列, 6.5mm x 4.5mm x 2.7mm

艾睿:
This power SDR0703-4R7ML surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 4.7u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 60M Hz. It has a tolerance of 20%. This product is 6.8 mm long, 2.9 mm tall and 4.7 mm deep. This SMD inductor has a maximum DC current of 1.5 A with a maximum resistance of 100m Ohm. This device is made with wirewound technology.

Allied Electronics:
Inductor; Power Wirewound; 4.7uH; 1.5A; 20%; SMD

Jameco:
Ind Power 4.7uH 20% 100KHz 20Q-Factor Ferrite Tape and Reel

安富利:
Ind Power Wirewound 4.7uH 20% 100KHz 20Q-Factor Ferrite 1.5A T/R

Verical:
Inductor Power Unshielded Wirewound 4.7uH 20% 100KHz 20Q-Factor Ferrite 1.5A 0.1Ohm DCR T/R

Newark:
# BOURNS  SDR0703-4R7ML  Surface Mount Power Inductor, SDR0703 Series, 4.7 µH, 1.5 A, 2.1 A, Unshielded, 0.1 ohm

MASTER:
Inductor Power Wirewound 4.7uH 20% 100KHz 20Q-Factor Ferrite 1.5A 100mOhm DCR T/R

Online Components:
Inductor Power Wirewound 4.7uH 20% 100KHz 20Q-Factor Ferrite 1.5A 100mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 4.7uH 20% 100KHz 20Q-Factor Ferrite 1.5A 100mOhm DCR T/R
