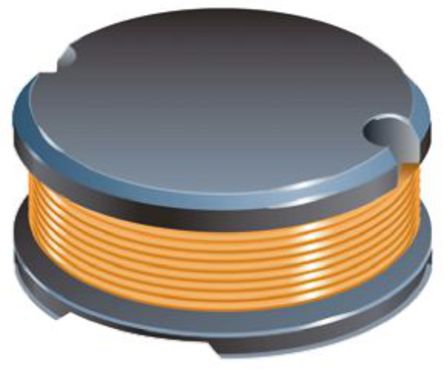

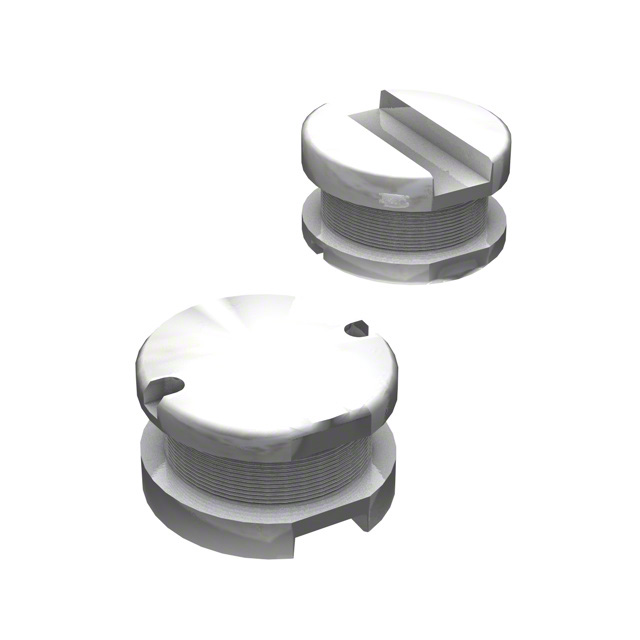

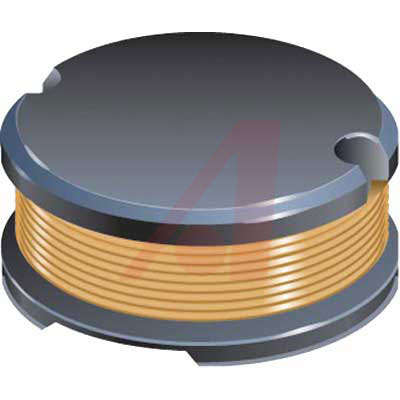

SDR1006-3R3ML

SDR1006 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 9.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

SDR1006 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 9.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

立创商城:
3.3uH ±20% 5A 24mΩ

欧时:
Bourns SDR1006 系列 铁氧体芯材 3.3 μH 绕线贴片电感器 SDR1006-3R3ML, ±20%容差, 10A Idc Q:34

得捷:
FIXED IND 3.3UH 5A 24 MOHM SMD

艾睿:
This power SDR1006-3R3ML surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 20%. This device is made with wirewound technology. This product is 5.8 mm tall with a diameter of 9.8 mm. It has an inductance of 3.3u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 55M Hz. This SMD inductor has a maximum DC current of 5 A with a maximum resistance of 24m Ohm.

Allied Electronics:
Inductor; Filter; Ind 3.3uH; Tol 20%; Cur 5A; SMT; Case 1006; DCR 0.024 Ohms

安富利:
Ind Power Wirewound 3.3uH 20% 1KHz 34Q-Factor Ferrite 5A T/R

Chip1Stop:
Inductor Power Wirewound 3.3uH 20% 1KHz 34Q-Factor Ferrite 5A 24mOhm DCR T/R

Verical:
Inductor Power Unshielded Wirewound 3.3uH 20% 1KHz 34Q-Factor Ferrite 5A 0.024Ohm DCR T/R

Newark:
# BOURNS  SDR1006-3R3ML  Surface Mount Power Inductor, SDR1006 Series, 3.3 µH, 5 A, 10 A, Unshielded, 0.024 ohm

MASTER:
Inductor Power Wirewound 3.3uH 20% 1KHz 34Q-Factor Ferrite 5A 24mOhm DCR T/R

Online Components:
Inductor Power Wirewound 3.3uH 20% 1KHz 34Q-Factor Ferrite 5A 24mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 3.3uH 20% 1KHz 34Q-Factor Ferrite 5A 24mOhm DCR T/R
