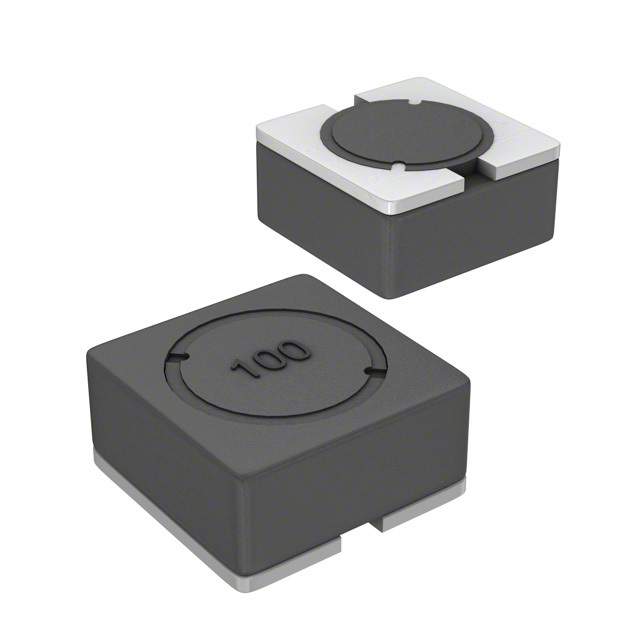

SRR5028-220Y

BOURNS  SRR5028-220Y  磁性屏蔽功率电感

SRR5028 系列磁性屏蔽线绕器

Bourns SRR5028 系列贴片屏蔽式功率电感器为薄型，仅 3mm。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机

欧时:
### SRR5028 系列磁性屏蔽线绕电感器Bourns SRR5028 系列贴片屏蔽式功率电感器为薄型，仅 3mm。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
22uH ±30% 1.15A 120mΩ

得捷:
FIXED IND 22UH 1.15A 120MOHM SMD

贸泽:
Fixed Inductors 22uH 30% SMD 5028

e络盟:
功率电感SMD, 22 µH, 1.15 A, 屏蔽, 1 A, SRR5028 Series, 5.8mm x 5.8mm x 2.8mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRR5028-220Y surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 6.1 mm long, 3 mm tall and 6.1 mm deep. This SMD inductor has a maximum DC current of 1.15 A with a maximum resistance of 120m Ohm. It has an inductance of 22u H. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 20MTyp Hz.

Allied Electronics:
SRR5028 Series WireWound SMD Inductor w/ Ferrite Core, 22 uH +/-30% 1.15A Idc Q:7

安富利:
Ind Power Shielded Wirewound 22uH 30% 100KHz 7Q-Factor Ferrite 1.15A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 7Q-Factor Ferrite 1.15A 120mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 7Q-Factor Ferrite 1.15A 0.12Ohm DCR T/R

Newark:
# BOURNS  SRR5028-220Y  Surface Mount Power Inductor, SRR5028 Series, 22 µH, 1.15 A, 1 A, Shielded, 0.12 ohm

MASTER:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 7Q-Factor Ferrite 1.15A 120mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 7Q-Factor Ferrite 1.15A 120mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 7Q-Factor Ferrite 1.15A 120mOhm DCR T/R

Win Source:
FIXED IND 22UH 1.15A 120MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 1.15 A 120mOhm Max Nonstandard
