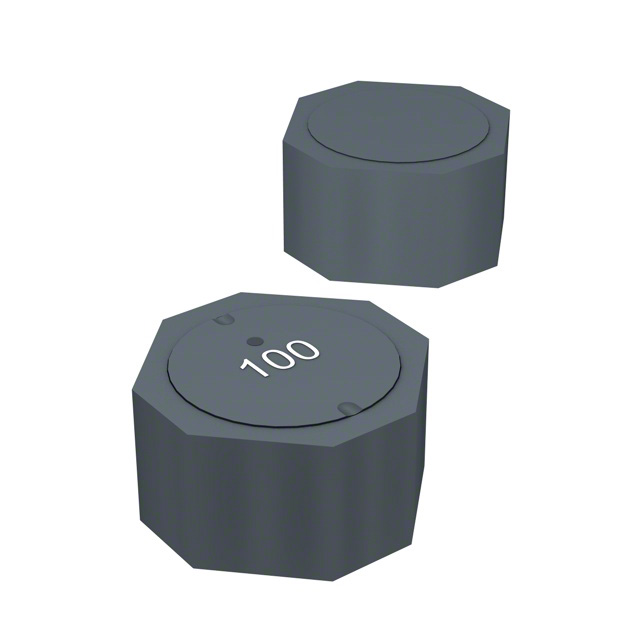

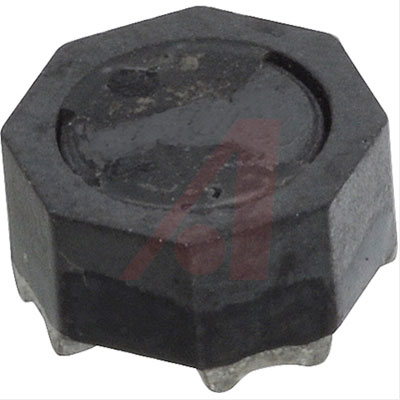

SRU5028-100Y

BOURNS  SRU5028-100Y  表面贴装功率电感器, SRU5028系列, 10 µH, ± 30%, 屏蔽, 0.063 ohm, 1.8 A

SRU5028 系列磁性屏蔽线绕扼流圈

薄型屏蔽结构

高电流额定值。

非常适合于高频率。

应用：直流/直流转换器，EMI 滤波器。

得捷:
FIXED IND 10UH 1.8A 63 MOHM SMD

立创商城:
10uH ±30%

欧时:
### SRU5028 系列磁性屏蔽线绕扼流圈薄型屏蔽结构 高电流额定值。 非常适合于高频率。 应用：直流/直流转换器，EMI 滤波器。 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 10 µH, 1.8 A, 屏蔽, 1.4 A, SRU5028 Series, 5.2mm x 5.2mm x 2.8mm

艾睿:
This power SRU5028-100Y surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 5.4 mm long, 3 mm tall and 5.4 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 25M Hz. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 1.8 A with a maximum resistance of 63m Ohm. It has an inductance of 10u H.

Allied Electronics:
Inductor, SMT Power/Shielded; 10uH; 30% Tol; SRF Min 25MHz; DCR 0.063Ohm; 18Qref

安富利:
Ind Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 1.8A T/R

Verical:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 1.8A 0.063Ohm DCR T/R

Newark:
# BOURNS  SRU5028-100Y  Surface Mount Power Inductor, SRU5028 Series, 10 µH, 1.8 A, 1.4 A, Shielded, 0.063 ohm

MASTER:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 1.8A 63mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 1.8A 63mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 1.8A 63mOhm DCR T/R
