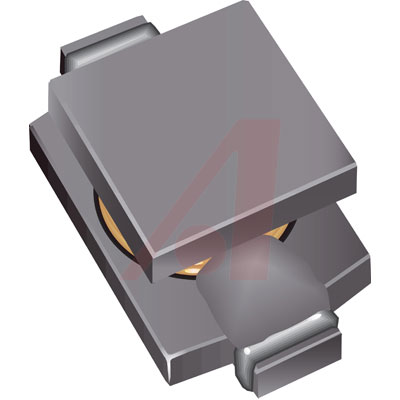

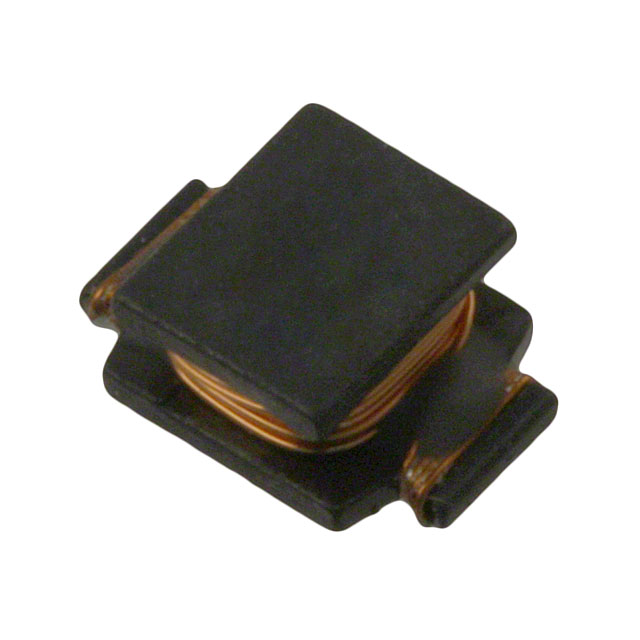

SDR0703-221KL

SMD功率电感 SMD Power Inductors

**Features:

**

* Low Height of Only 2.7 mm

* High ISAT of 3.2 Amps**

Applications:

**

* Input/Output of DC/DC Converters

* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios

立创商城:
220uH ±10% 180mA 3Ω

得捷:
FIXED IND 220UH 180MA 3 OHM SMD

贸泽:
Fixed Inductors 220uH 10% SMD 0703

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SDR0703-221KL surface mount inductor from Bourns is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 7M Hz. It has a tolerance of 10%. It has an inductance of 220u H. This product is 6.8 mm long, 2.9 mm tall and 4.7 mm deep. This SMD inductor has a maximum DC current of 180m A with a maximum resistance of 3 Ohm.

Allied Electronics:
Inductor; Power Wirewound; 220uH; 180mA; 10%; SMD

安富利:
Ind Power Wirewound 220uH 10% 100KHz 31Q-Factor Ferrite 180mA T/R

Chip1Stop:
Ind Power Wirewound 220uH 10% 100KHz 31Q-Factor Ferrite 180mA T/R

Verical:
Inductor Power Unshielded Wirewound 220uH 10% 100KHz 31Q-Factor Ferrite 0.18A 3Ohm DCR T/R

Newark:
# BOURNS  SDR0703-221KL  Surface Mount Power Inductor, SDR0703 Series, 220 µH, 180 mA, 280 mA, Unshielded, 3 ohm

MASTER:
Inductor Power Wirewound 220uH 10% 100KHz 31Q-Factor Ferrite 180mA 3Ohm DCR T/R

Online Components:
Inductor Power Wirewound 220uH 10% 100KHz 31Q-Factor Ferrite 180mA 3Ohm DCR T/R

Electro Sonic:
Inductor Power Wirewound 220uH 10% 100KHz 31Q-Factor Ferrite 180mA 3Ohm DCR T/R
