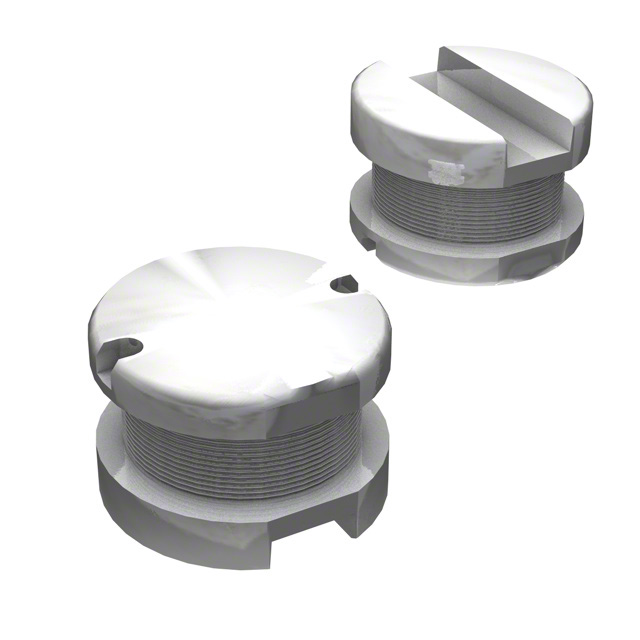

SDR0805-270KL

SDR0805 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 7.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

SDR0805 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 7.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

立创商城:
27uH ±20% 1.3A 120mΩ

得捷:
FIXED IND 27UH 1.3A 120 MOHM SMD

欧时:
### SDR0805 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 7.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

贸泽:
Fixed Inductors 27uH 10% SMD 0805

e络盟:
功率电感SMD, 27 µH, 1.3 A, 非屏蔽, 2.1 A, SDR0805 Series, 7.8mm x 7.8mm x 5.3mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SDR0805-270KL surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 5.3 mm tall with a diameter of 7.8 mm. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 1.3 A with a maximum resistance of 120m Ohm. It has an inductance of 27u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 12M Hz. It has a tolerance of 10%.

Allied Electronics:
SDR0805 WireWound SMDinductor w/ FerriteCore, 27 uH +/-20%WireWound 2.1A Idc Q:20

安富利:
Ind Power Wirewound 27uH 10% 1KHz 20Q-Factor Ferrite 1.3A T/R

Chip1Stop:
Ind Power Wirewound 27uH 10% 1KHz 20Q-Factor Ferrite 1.3A T/R

Verical:
Inductor Power Unshielded Wirewound 27uH 10% 1KHz 20Q-Factor Ferrite 1.3A 0.12Ohm DCR T/R

Newark:
# BOURNS  SDR0805-270KL  Surface Mount Power Inductor, SDR0805 Series, 27 µH, 1.3 A, 2.1 A, Unshielded, 0.12 ohm

MASTER:
Inductor Power Wirewound 27uH 10% 1KHz 20Q-Factor Ferrite 1.3A 120mOhm DCR T/R

Online Components:
Inductor Power Wirewound 27uH 10% 1KHz 20Q-Factor Ferrite 1.3A 120mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 27uH 10% 1KHz 20Q-Factor Ferrite 1.3A 120mOhm DCR T/R

Win Source:
27μH Unshielded Wirewound Inductor 1.3A 120 mOhm Max Nonstandard
