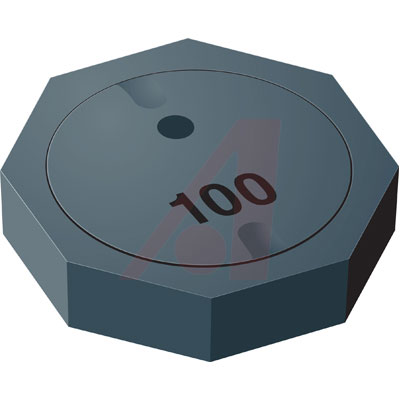

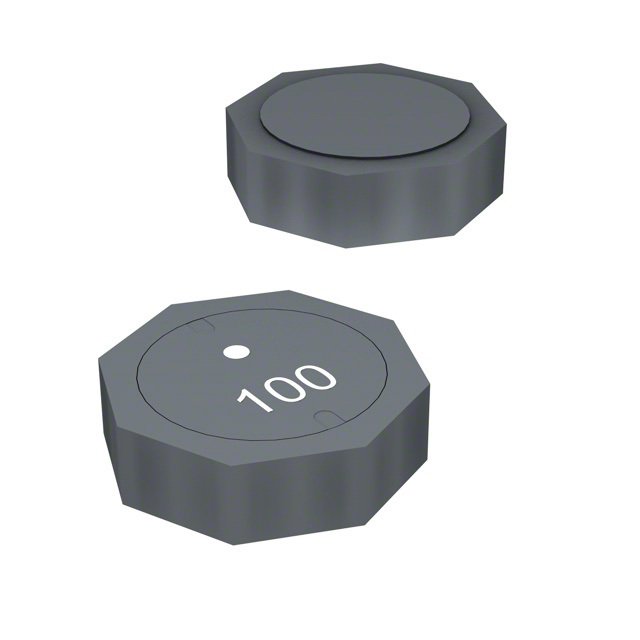

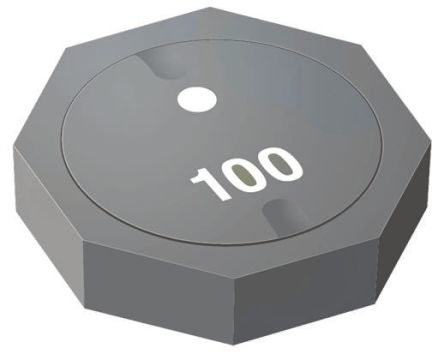

SRU1028-100Y

BOURNS  SRU1028-100Y  表面贴装功率电感器, SRU1028系列, 10 µH, ± 30%, 屏蔽, 0.04 ohm, 2.8 A

SRU1028 系列磁性屏蔽线绕扼流圈

薄型屏蔽结构

高电流额定值。

非常适合于高频率。

应用：直流/直流转换器，EMI 滤波器。

得捷:
FIXED IND 10UH 2.8A 40 MOHM SMD

立创商城:
10uH ±30% 2.8A 40mΩ

欧时:
Bourns SRU1028 系列 屏蔽 铁氧体芯材 10 μH 绕线贴片电感器 SRU1028-100Y, ±30%容差, 2.8A Idc Q:20

e络盟:
功率电感SMD, 10 µH, 2.8 A, 屏蔽, 2.4 A, SRU1028系列, 10mm x 10mm x 2.8mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRU1028-100Y surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 25M Hz. This product is 10.3 mm long, 3.1 mm tall and 10.3 mm deep. It has an inductance of 10u H. This SMD inductor has a maximum DC current of 2.8 A with a maximum resistance of 40m Ohm.

Allied Electronics:
Inductor; SMT Power/Shielded; 10uH; 30% Tol; SRF Min 25MHz; DCR 0.040 Ohm; 20 Qref

安富利:
Ind Power Shielded Wirewound 10uH 30% 100KHz 20Q-Factor Ferrite 2.8A T/R

Chip1Stop:
Ind Power Shielded Wirewound 10uH 30% 100KHz 20Q-Factor Ferrite 2.8A T/R

Verical:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 20Q-Factor Ferrite 2.8A 0.04Ohm DCR T/R

Newark:
# BOURNS  SRU1028-100Y  Surface Mount Power Inductor, SRU1028 Series, 10 H, 30%, Shielded, 0.04 ohm, 2.8 A

MASTER:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 20Q-Factor Ferrite 2.8A 40mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 20Q-Factor Ferrite 2.8A 40mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 20Q-Factor Ferrite 2.8A 40mOhm DCR T/R
