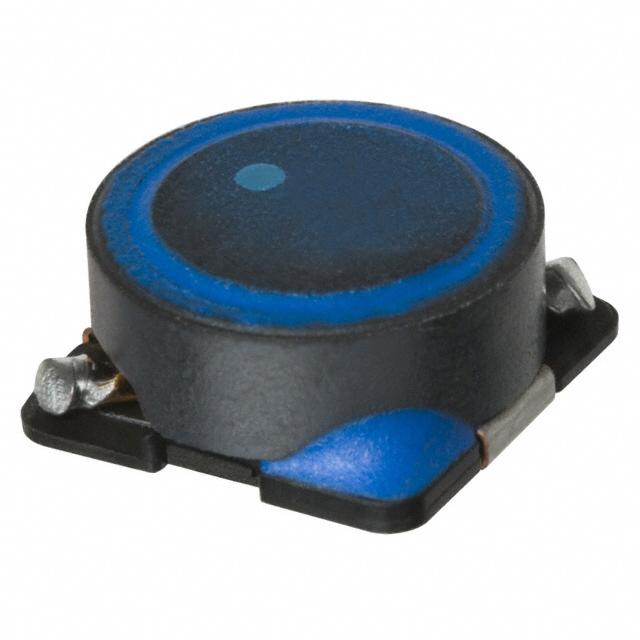

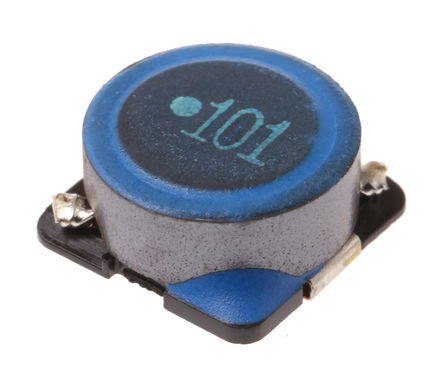

SLF10145T-101M1R0-PF

TDK  SLF10145T-101M1R0-PF.  电源线电感, 100uH, 1A, 20%, 整卷

固定器

得捷:
FIXED IND 100UH 1.1A 240MOHM SMD

欧时:
TDK SLF 系列 100 μH 绕线贴片电感器 SLF10145T-101M1R0-PF, ±20%容差, 1A Idc, 200mΩ最大直流电阻

立创商城:
100uH ±20% 1.1A 240mΩ

贸泽:
Fixed Inductors SMD 100uH 1.0amps

e络盟:
电源线电感, 100uH, 1A, 20%, 整卷

艾睿:
This power SLF10145T-101M1R0-PF surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 1K Hz. This product is 10.4 mm long, 4.8 mm tall and 10.4 mm deep. This device utilizes wirewound technology. It has an inductance of 100u H. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.1 A with a maximum resistance of 240m Ohm.

安富利:
Ind Power Shielded Wirewound 100uH 20% 1KHz 1.1A T/R

Chip1Stop:
Ind Power Shielded Wirewound 100uH 20% 1KHz 1.1A T/R

Newark:
# TDK  SLF10145T-101M1R0-PF  Surface Mount Power Inductor, SLF Series, 100 µH, 1 A, 1.1 A, Wirewound, 0.2 ohm

儒卓力:
**SLF10145T 100uH 1100mA 20% WWT **

Electro Sonic:
Inductor Power Shielded Wirewound 100uH 20% 1KHz Ferrite 1.1A 240mOhm DCR T/R

Win Source:
100μH Shielded Wirewound Inductor 1.1A 240 mOhm Max Nonstandard
