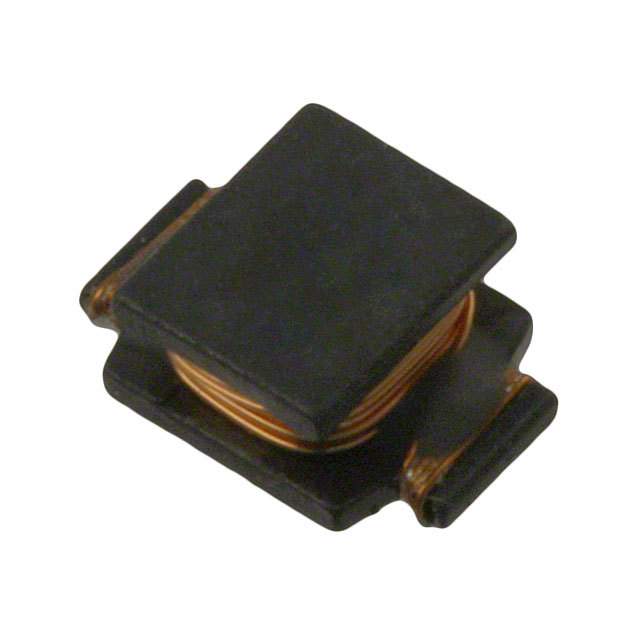

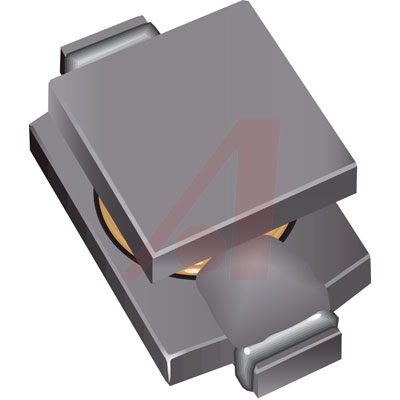

SMD功率电感 SMD Power Inductors
**Features:
**
* Low Height of Only 2.7 mm
* High ISAT of 3.2 Amps**
Applications:
**
* Input/Output of DC/DC Converters
* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios
得捷:
FIXED IND 22UH 650MA 300MOHM SMD
立创商城:
22uH ±10% 650mA 300mΩ
艾睿:
Save valuable space on a PCB with this power SDR0703-220KL surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This SMD inductor has a maximum DC current of 650m A with a maximum resistance of 300m Ohm. This device utilizes wirewound technology. This product is 6.8 mm long, 2.9 mm tall and 4.7 mm deep. It has an inductance of 22u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 26M Hz. It has a tolerance of 10%.
Allied Electronics:
Inductor; Power Wirewound; 22uH; 650mA; 10%; SMD
安富利:
Ind Power Wirewound 22uH 10% 100KHz 20Q-Factor Ferrite 650mA T/R
Chip1Stop:
Inductor Power Wirewound 22uH 10% 100KHz 20Q-Factor Ferrite 650mA 300mOhm DCR T/R
Verical:
Inductor Power Unshielded Wirewound 22uH 10% 100KHz 20Q-Factor Ferrite 0.65A 0.3Ohm DCR T/R
Newark:
# BOURNS SDR0703-220KL Surface Mount Power Inductor, SDR0703 Series, 22 µH, 650 mA, 950 mA, Unshielded, 0.3 ohm
MASTER:
Inductor Power Wirewound 22uH 10% 100KHz 20Q-Factor Ferrite 650mA 300mOhm DCR T/R
Online Components:
Inductor Power Wirewound 22uH 10% 100KHz 20Q-Factor Ferrite 650mA 300mOhm DCR T/R
Electro Sonic:
Inductor Power Wirewound 22uH 10% 100KHz 20Q-Factor Ferrite 650mA 300mOhm DCR T/R
额定电流 650 mA
容差 ±10 %
电感 22 µH
自谐频率 26 MHz
Q值 20.0
屏蔽 No
电感公差 ±10 %
测试频率 100 kHz
电阻DC) ≤300 mΩ
额定电流DC 950 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.3 Ω
安装方式 Surface Mount
引脚数 2
封装 0.256" L x 0.177" W x 0.106" H 6.50mm x 4.50mm x 2.70mm
宽度 4.5 mm
高度 2.9 mm
封装 0.256" L x 0.177" W x 0.106" H 6.50mm x 4.50mm x 2.70mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
