SRN8040-R50Y

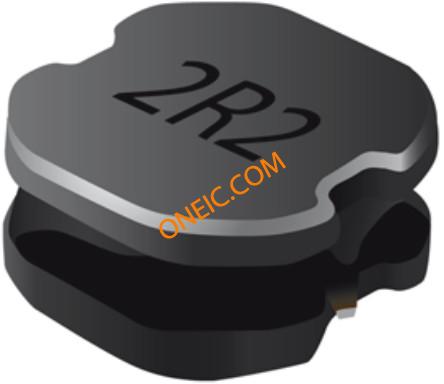

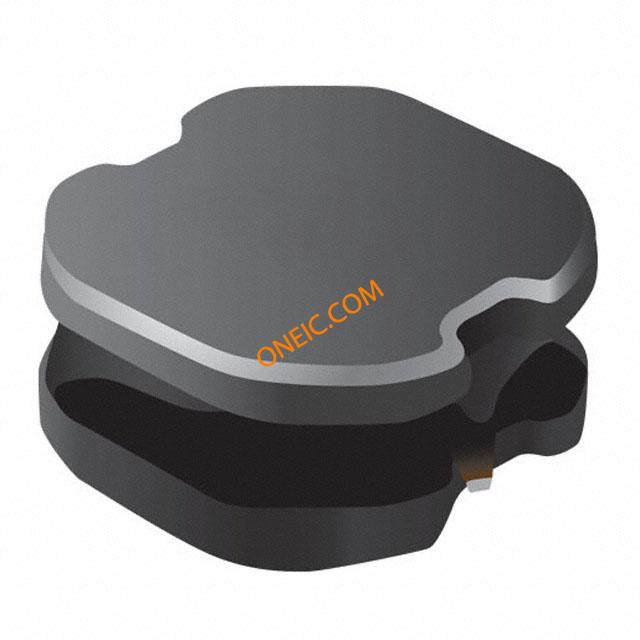

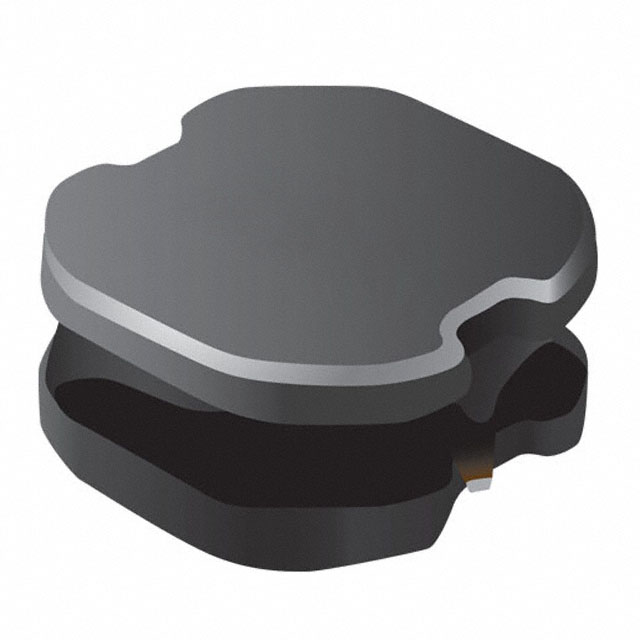

SRN8040 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN8040 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4mm Inductance range from 0.5 to 100uH Rated current of up to 10A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

SRN8040 系列半磁性屏蔽线绕扼流圈

Bourns SRN8040 系列贴片式半屏蔽功率器，电感范围为 0.5 至 330uH，额定电流高达 12A，工作温度为 -55°C 至 +125°C。这些电感器适用于汽车行业，符合 AEC-Q200 标准。

### 应用

汽车系统：驾驶员辅助系统、信息、照明、娱乐

直流 - 直流转换器

电源

电视

数字视频

### 认可

AEC-Q200

得捷:
FIXED IND 500NH 10A 7 MOHM SMD

立创商城:
500nH ±30% 10A 7mΩ

欧时:
### SRN8040 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN8040 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4mm Inductance range from 0.5 to 100uH Rated current of up to 10A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

艾睿:

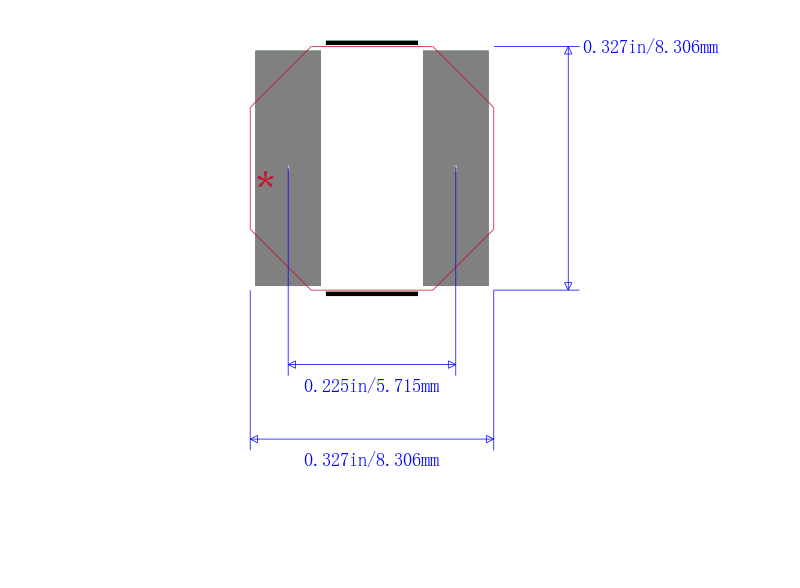

Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRN8040-R50Y surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 8.3 mm long, 4 mm tall and 8.3 mm deep. This SMD inductor has a maximum DC current of 10 A with a maximum resistance of 7m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 125MTyp Hz. It has an inductance of 500n H. This device is made with wirewound technology.

Allied Electronics:

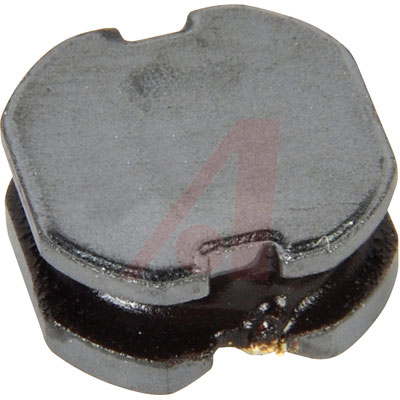

Inductor; Power; Semi-Shielded; Ind 0.5 uH; Tol 30%; Cur-Rtg 10 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 500nH 30% 100KHz Ferrite 10A T/R

Chip1Stop:
Ind Power Semi-Shielded Wirewound 500nH 30% 100KHz Ferrite 10A T/R

Verical:
Inductor Power Semi-Shielded Wirewound 0.5uH 30% 100KHz 13Q-Factor Ferrite 10A 0.007Ohm DCR T/R

Newark:
# BOURNS  SRN8040-R50Y  Surface Mount Power Inductor, SRN8040 Series, 500 nH, 10 A, 12 A, Shielded, 7000 µohm

Online Components:
Inductor Power Semi-Shielded Wirewound 500nH 30% 100KHz 13Q-Factor Ferrite 10A 7mOhm DCR T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 500nH 30% 100KHz 13Q-Factor Ferrite 10A 7mOhm DCR T/R
