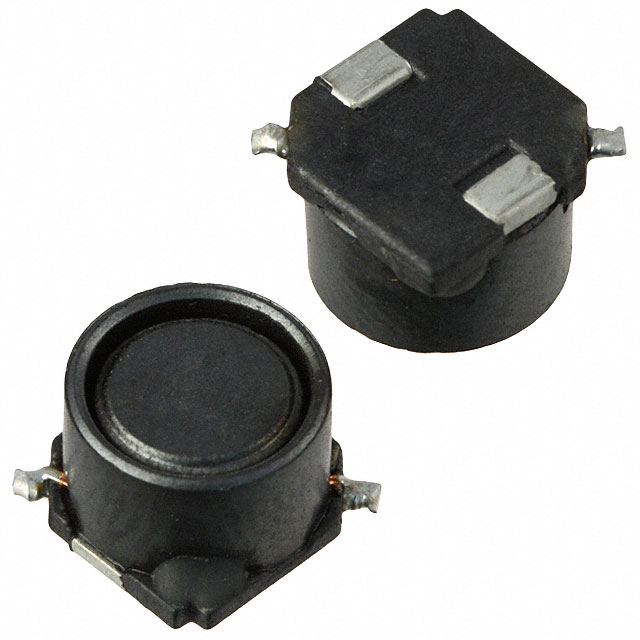

BOURNS SRR7045-100M 电感, 10uH, 2A, 20%, SMD
**Features
**
* Ferrite DR and RI Core**
Applications
**
* Input/Output of DC/DC Converters**
**
* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios
得捷:
FIXED IND 10UH 2A 42 MOHM SMD
欧时:
Ind7x7x4.5mm,10uH20%2A,shdSMD
立创商城:
10uH ±20% 1.9A 48mΩ
贸泽:
固定电感器 10uH 20% SMD 7045
e络盟:
功率电感SMD, 10 µH, 2 A, 屏蔽, 1.7 A, SRR7045 Series, 7mm x 7mm x 4.5mm
艾睿:
This power SRR7045-100M surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 2 A with a maximum resistance of 42m Ohm. This product is 7.3 mm long, 4.8 mm tall and 7.3 mm deep. It has an inductance of 10u H. It has a tolerance of 20%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 25MTyp Hz. This device utilizes wirewound technology.
Allied Electronics:
Inductor; Power; Shielded; Wirewound; 10uH; 20%; 2A
安富利:
Ind Power Shielded Wirewound 10uH 20% 100KHz 30Q-Factor Ferrite 2A T/R
Verical:
Inductor Power Shielded Wirewound 10uH 20% 1KHz 40Q-Factor Ferrite 2.7A 0.048Ohm DCR T/R
Newark:
# BOURNS SRR7045-100M Surface Mount Power Inductor, SRR7045 Series, 10 µH, 2 A, 1.7 A, Shielded, 0.042 ohm
MASTER:
Inductor Power Shielded Wirewound 10uH 20% 1KHz 30Q-Factor Ferrite 2A 42mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 10uH 20% 1KHz 30Q-Factor Ferrite 2A 42mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 10uH 20% 1KHz 30Q-Factor Ferrite 2A 42mOhm DCR T/R
Win Source:
FIXED IND 10UH 2A 42 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 2 A 42mOhm Max Nonstandard
额定电流 2 A
容差 ±20 %
电感 10 µH
自谐频率 25 MHz
Q值 30.0
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤42 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.042 Ω
安装方式 Surface Mount
封装 7mm x 7mm x 4.5mm
长度 7 mm
宽度 7 mm
高度 4.8 mm
封装 7mm x 7mm x 4.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRR7045-100M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
HM78-20100LFTR TT Electronics/BI | 类似代替 | SRR7045-100M和HM78-20100LFTR的区别 |
DR74-100-R 伊顿巴斯曼 | 功能相似 | SRR7045-100M和DR74-100-R的区别 |
MSS7341-103MLD 线艺 | 功能相似 | SRR7045-100M和MSS7341-103MLD的区别 |
