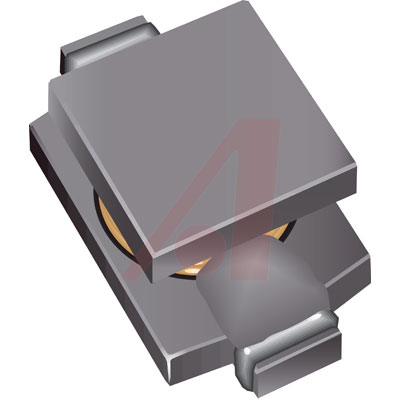

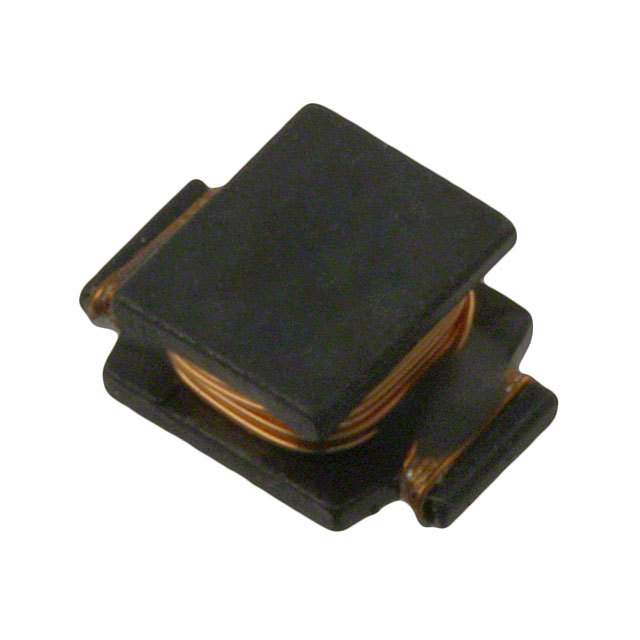

SMD功率电感 SMD Power Inductors
**Features:
**
* Low Height of Only 2.7 mm
* High ISAT of 3.2 Amps**
Applications:
**
* Input/Output of DC/DC Converters
* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios
得捷:
FIXED IND 12UH 900MA 180MOHM SMD
艾睿:
This power SDR0703-120KL surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 6.8 mm long, 2.9 mm tall and 4.7 mm deep. It has a tolerance of 10%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 36M Hz. It has an inductance of 12u H. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 900m A with a maximum resistance of 180m Ohm.
Allied Electronics:
Inductor; Power Wirewound; 12uH; 900mA; 10%; SMD
安富利:
Ind Power Wirewound 12uH 10% 100KHz 20Q-Factor Ferrite 900mA T/R
Verical:
Inductor Power Unshielded Wirewound 12uH 10% 100KHz 20Q-Factor Ferrite 0.9A 0.18Ohm DCR T/R
Electro Sonic:
Inductor Power Wirewound 12uH 10% 100KHz 20Q-Factor Ferrite 900mA 180mOhm DCR T/R
额定电流 900 mA
容差 ±10 %
电感 12 µH
自谐频率 36 MHz
Q值 20
屏蔽 No
电感公差 ±10 %
测试频率 100 kHz
电阻DC) ≤180 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.18 Ω
安装方式 Surface Mount
封装 0.256" L x 0.177" W x 0.106" H 6.50mm x 4.50mm x 2.70mm
高度 2.9 mm
封装 0.256" L x 0.177" W x 0.106" H 6.50mm x 4.50mm x 2.70mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
