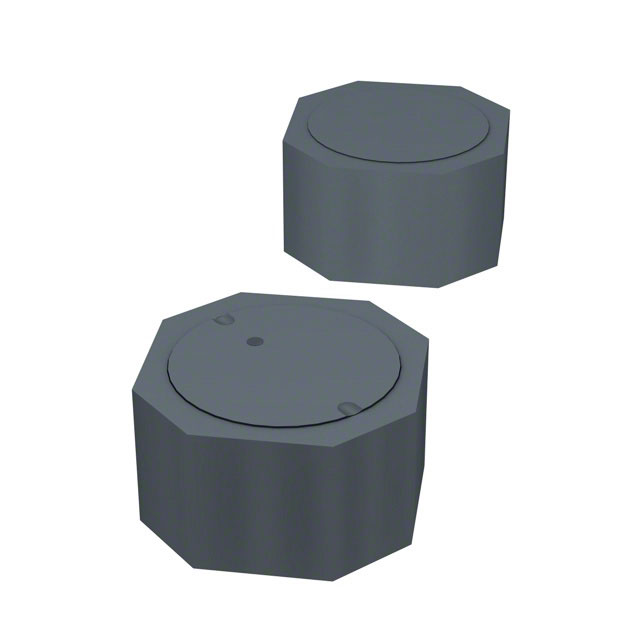

SRU5028-6R8Y

SRU5028 系列磁性屏蔽线绕扼流圈薄型屏蔽结构 高电流额定值。 非常适合于高频率。 应用：直流/直流转换器，EMI 滤波器。 ### Bourns 非标准表面安装电感器（扼流圈）

SRU5028 系列磁性屏蔽线绕扼流圈

薄型屏蔽结构

高电流额定值。

非常适合于高频率。

应用：直流/直流转换器，EMI 滤波器。

立创商城:
6.8uH ±30% 2A 42mΩ

得捷:
FIXED IND 6.8UH 2A 42 MOHM SMD

欧时:
Bourns SRU5028 系列 屏蔽 铁氧体芯材 6.8 μH 绕线贴片电感器 SRU5028-6R8Y, 2A Idc Q:10

e络盟:
屏蔽型功率扼流圈, 6.8UH

艾睿:
This power SRU5028-6R8Y surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 6.8u H. This SMD inductor has a maximum DC current of 2 A with a maximum resistance of 42m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 55M Hz. This product is 5.4 mm long, 3 mm tall and 5.4 mm deep. This device utilizes wirewound technology.

Allied Electronics:
Power inductor SMD shielded 6.8uH

安富利:
Ind Power Shielded Wirewound 6.8uH 30% 100KHz 10Q-Factor Ferrite 2A T/R

Verical:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz 10Q-Factor Ferrite 2A 0.042Ohm DCR T/R

Newark:
# BOURNS  SRU5028-6R8Y  Surface Mount Power Inductor, SRU5028 Series, 6.8 µH, 2 A, 1.55 A, Shielded, 0.042 ohm

MASTER:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz 10Q-Factor Ferrite 2A 42mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz 10Q-Factor Ferrite 2A 42mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz 10Q-Factor Ferrite 2A 42mOhm DCR T/R
