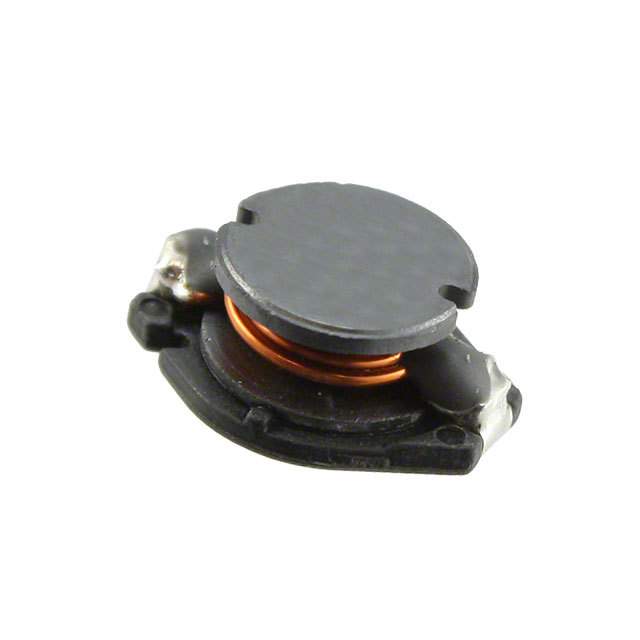

SDR1005-471KL

BOURNS  SDR1005-471KL  表面贴装功率电感器, SDR1005系列, 470 µH, ± 10%, 非屏蔽, 1.7 ohm, 450 mA

SDR1005 系列线绕扼流圈

提供 E6 系列

薄型，仅 5.0mm

低至 0.68μH

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 470UH 450MA 1.7OHM SMD

立创商城:
470uH ±10% 450mA 1.7Ω

欧时:
Bourns SDR1005 系列 铁氧体芯材 470 μH 绕线贴片电感器 SDR1005-471KL, ±10%容差, 500mA Idc Q:60

e络盟:
功率电感SMD, 470 µH, 450 mA, 非屏蔽, 500 mA, SDR1005系列, 12.7mm x 10mm x 5mm

艾睿:
This power SDR1005-471KL surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This SMD inductor has a maximum DC current of 450m A with a maximum resistance of 1.7 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 4M Hz. It has a tolerance of 10%. It has an inductance of 470u H. This device is made with wirewound technology. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep.

Allied Electronics:
Inductor; SMT 7mm Low Profile; Power; Q Ref 57; SRF Min 4MHz; 10%; 470uH

安富利:
Ind Power Wirewound 470uH 10% 1KHz 60Q-Factor Ferrite 450mA T/R

Verical:
Inductor Power Wirewound 470uH 10% 1KHz 60Q-Factor Ferrite 0.45A 1.7Ohm DCR T/R

Newark:
# BOURNS  SDR1005-471KL  Surface Mount Power Inductor, SDR1005 Series, 470 µH, 450 mA, 500 mA, Unshielded, 1.7 ohm

MASTER:
Inductor Power Wirewound 470uH 10% 1KHz 60Q-Factor Ferrite 450mA 1.7Ohm DCR T/R

Online Components:
Inductor Power Wirewound 470uH 10% 1KHz 60Q-Factor Ferrite 450mA 1.7Ohm DCR T/R

Electro Sonic:
Inductor Power Wirewound 470uH 10% 1KHz 60Q-Factor Ferrite 450mA 1.7Ohm DCR T/R
