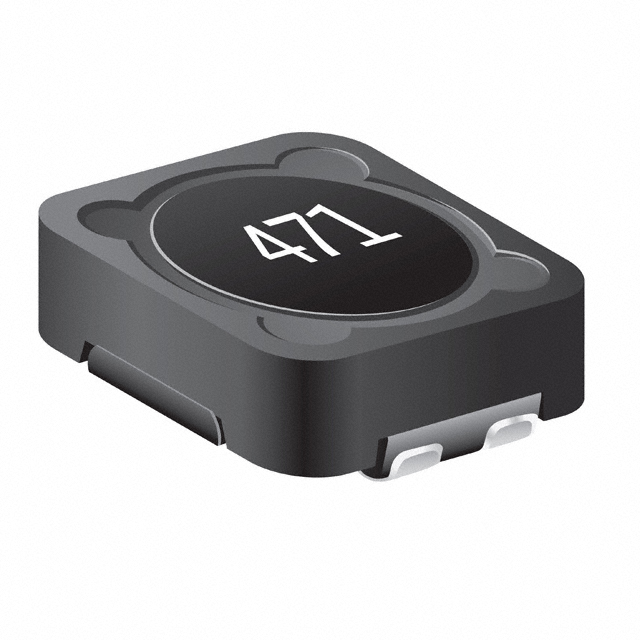

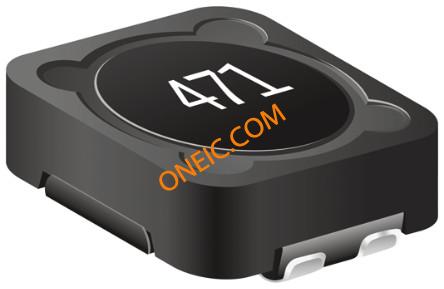

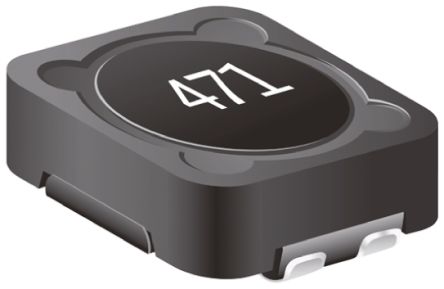

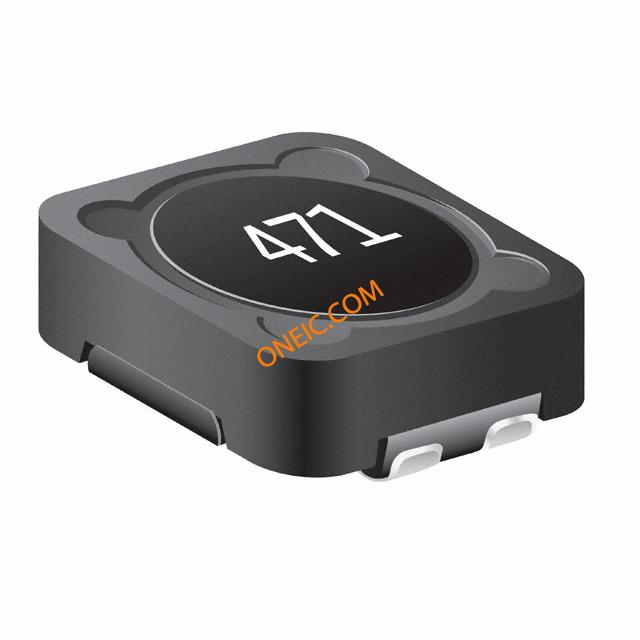

BOURNS SRF0703-102M 功率电感, 双路, 1000uH, 可并联
SRF0703 系列双绕线绕扼流圈
多种应用:并联、串联、双器和变压器
磁性屏蔽、低辐射
应用包括:SEPIC 拓扑以及便携式和固定设备中的电源
得捷:
INDUCT ARRAY 2 COIL 1MH SMD
欧时:
### SRF0703 系列双绕线绕扼流圈多种应用:并联、串联、双电感器和变压器 磁性屏蔽、低辐射 应用包括:SEPIC 拓扑以及便携式和固定设备中的电源 ### Bourns 非标准表面安装电感器(扼流圈)
贸泽:
Coupled Inductors 1000uH 20% SMD 0703
e络盟:
电感, 功率, 双路, 1 mH, 6.11 ohm, 260 mA, 7.6mm x 7.6mm x 3.4mm
艾睿:
This power SRF0703-102M surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 260m|128m A with a maximum resistance of 6.11|24.42 Ohm. It has an inductance of 1m|4m H. This product is 7.6 mm long, 3.6 mm tall and 7.6 mm deep. Its test frequency is 100K Hz. It has a tolerance of 20%.
Allied Electronics:
WireWound SMD Inductor w/ Ferrite Core; 1 mH +/-20% Dual 260mA Idc
安富利:
Ind Power Shielded Wirewound 1mH/4mH 20% 100KHz Ferrite 260mA/128mA T/R
Verical:
Inductor Power Shielded Wirewound 1000uH/4000uH 20% 100KHz Ferrite 0.26A/0.128A 6.11Ohm/24.42Ohm DCR T/R
Newark:
# BOURNS SRF0703-102M Inductor, Power, 1 mH, 20%, 6.11 ohm, 260 mA, 7.6mm x 7.6mm x 3.4mm
MASTER:
Inductor Power - Shielded - Wirewound - 7.6 x 7.6 x 3.4mm - 1mH/4mH - 100 KHz - 260mA/128mA - 6.11Ohm/24.42Ohm.
Online Components:
Inductor Power Shielded Wirewound 1mH/4mH 20% 100KHz Ferrite 260mA/128mA 6.11Ohm/24.42Ohm DCR T/R
Electro Sonic:
Inductor Power - Shielded - Wirewound - 7.6 x 7.6 x 3.4mm - 1mH/4mH - 100 KHz - 260mA/128mA - ...
额定电流 260 mA
容差 ±20 %
电感 1 mH
自谐频率 100 kHz
共振频率 100 kHz
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤12.21 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 24.42 Ω
安装方式 Surface Mount
引脚数 4
封装 7.6mm x 7.6mm x 3.4mm
长度 7.6 mm
宽度 7.6 mm
高度 3.4 mm
封装 7.6mm x 7.6mm x 3.4mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRF0703-102M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
HM78D-755102MLFTR TT Electronics/BI | 功能相似 | SRF0703-102M和HM78D-755102MLFTR的区别 |
