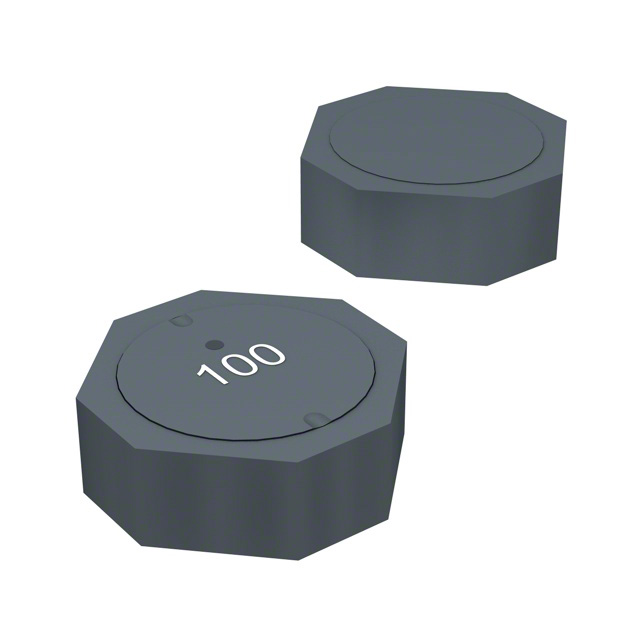

SHIELDED SMD功率电感 Shielded SMD Power Inductors
6.8 µH 屏蔽 绕线 器 1.45 A 50 毫欧 非标准
立创商城:
6.8uH ±30% 1.45A 50mΩ
得捷:
FIXED IND 6.8UH 1.45A 50MOHM SMD
艾睿:
An ideal space-saving electronic component is this power SRU5018-6R8Y surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 1.45 A with a maximum resistance of 50m Ohm. It has an inductance of 6.8u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 60M Hz. This product is 5.4 mm long, 2 mm tall and 5.4 mm deep. This device utilizes wirewound technology.
安富利:
Ind Power Shielded Wirewound 6.8uH 30% 100KHz 7.5Q-Factor Ferrite 1.45A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz 7.5Q-Factor Ferrite 1.45A 50mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz 7.5Q-Factor Ferrite 1.45A 0.05Ohm DCR Automotive T/R
Electro Sonic:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz 7.5Q-Factor Ferrite 1.45A 50mOhm DCR Automotive T/R
额定电流 1.45 A
容差 ±30 %
电感 6.8 µH
自谐频率 60 MHz
Q值 7.5
电感公差 ±30 %
测试频率 100 kHz
电阻DC) 50 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.05 Ω
安装方式 Surface Mount
引脚数 2
封装 5018
长度 5.2 mm
宽度 5.2 mm
高度 2 mm
封装 5018
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
