SRR5028-471Y

SRR5028系列 - 屏蔽贴片功率电感 SRR5028 Series - Shielded SMD Power Inductors

Inductor Power Shielded Wirewound 470uH 30% 100KHz 12Q-Factor Ferrite 300mA 2.5Ohm DCR T/R

立创商城:
470uH ±30% 300mA 2.5Ω

得捷:
FIXED IND 470UH 300MA 2.5OHM SMD

艾睿:

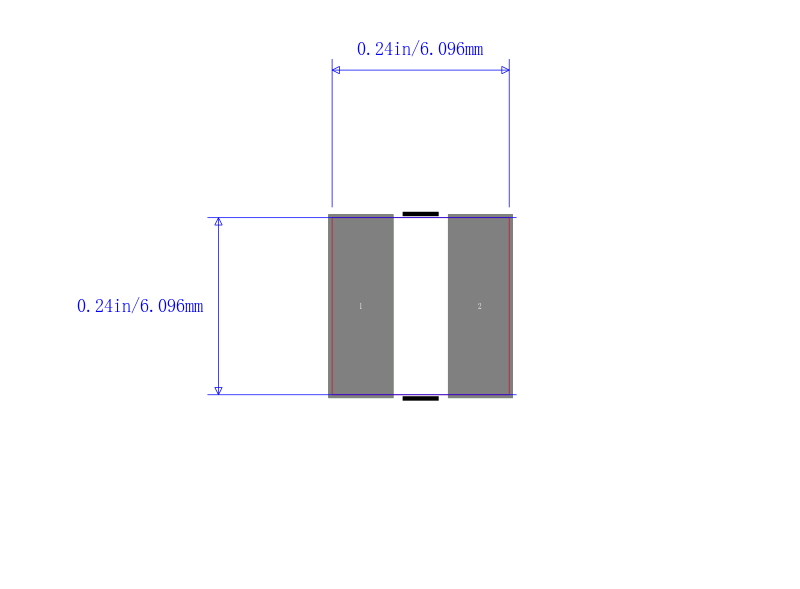

This power SRR5028-471Y surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes wirewound technology. This product is 6.1 mm long, 3 mm tall and 6.1 mm deep. It has an inductance of 470u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 5MTyp Hz. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 2.5 Ohm.

安富利:
Ind Power Shielded Wirewound 470uH 30% 100KHz 12Q-Factor Ferrite 300mA T/R

Verical:
Inductor Power Shielded Wirewound 470uH 30% 100KHz 12Q-Factor Ferrite 0.3A 2.5Ohm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 470uH 30% 100KHz 12Q-Factor Ferrite 300mA 2.5Ohm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 470uH 30% 100KHz 12Q-Factor Ferrite 300mA 2.5Ohm DCR T/R
