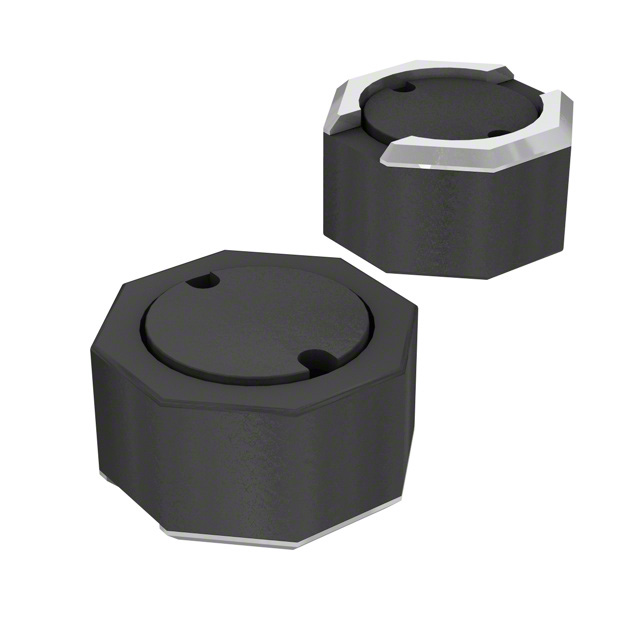

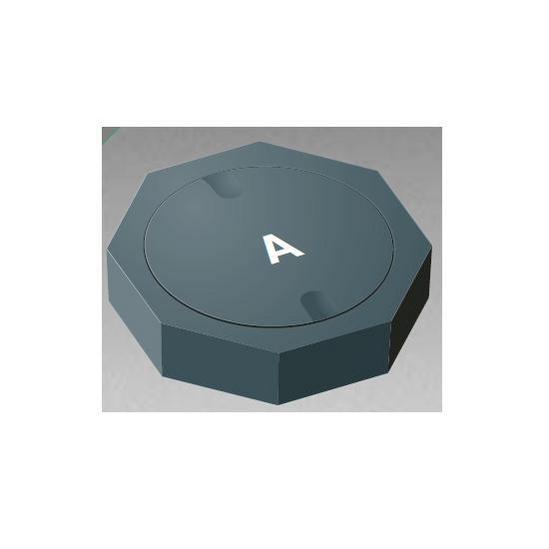

SHIELDED SMD功率电感 Shielded SMD Power Inductors
屏蔽 绕线 器 990 毫欧最大 非标准
得捷:
FIXED IND 22UH 430MA 990MOHM SMD
立创商城:
22uH ±30% 430mA 990mΩ
艾睿:

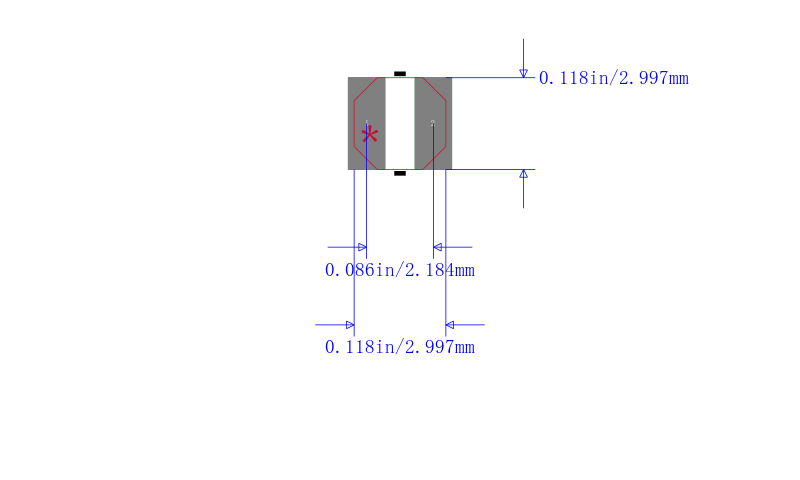

Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRU2016-220Y surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 22u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 30MTyp Hz. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 430m A with a maximum resistance of 990m Ohm. This product is 3 mm long, 1.8 mm tall and 3 mm deep.
安富利:
Ind Power Shielded Wirewound 22uH 30% 100KHz 12Q-Factor Ferrite 430mA T/R
Verical:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 12Q-Factor Ferrite 0.43A 0.99Ohm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 12Q-Factor Ferrite 430mA 990mOhm DCR Automotive T/R
Electro Sonic:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 12Q-Factor Ferrite 430mA 990mOhm DCR T/R
