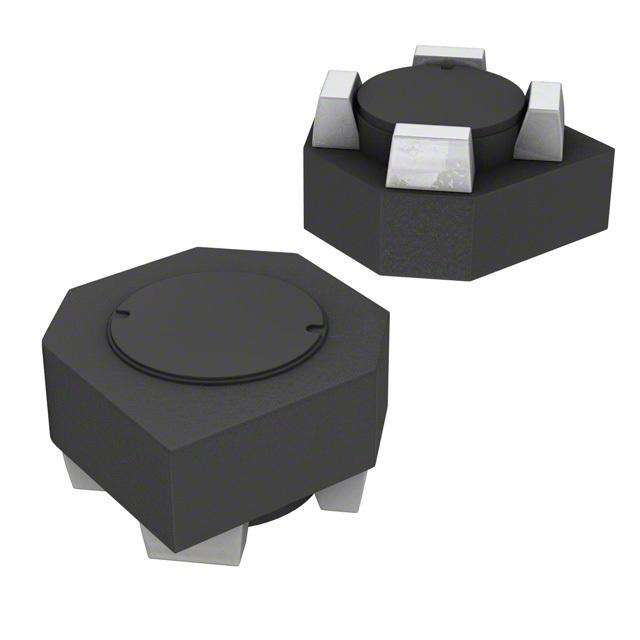

SRU3017-100Y

SRU3017 Series Magnetically Shielded Wire Wound ChokesVery low profile shielded construction High current rating. Ideal for high frequencies. Applications: dc / dc converters, EMI filters. ### Bourns 非标准表面安装电感器（扼流圈）

SRU3017 系列磁性屏蔽线绕扼流圈

超薄型屏蔽结构

高电流额定值。

非常适合于高频率。

应用：直流/直流转换器，EMI 滤波器。

得捷:
FIXED IND 10UH 850MA 120MOHM SMD

立创商城:
10uH ±30% 850mA 120mΩ

欧时:
Bourns SRU3017 系列 屏蔽 铁氧体芯材 10 μH 绕线贴片电感器 SRU3017-100Y, ±30%容差, 850mA Idc Q:15

艾睿:
Use this power SRU3017-100Y surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 10u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 40MTyp Hz. This SMD inductor has a maximum DC current of 850m A with a maximum resistance of 120m Ohm. This product is 3.5 mm long, 2 mm tall and 3.5 mm deep. This device utilizes wirewound technology.

Allied Electronics:
SRU3017 WireWound SMDinductor w/FerriteCore, 10 uH +/-30%WireWound 850mA Idc Q:15

安富利:
Ind Power Shielded Wirewound 10uH 30% 100KHz 15Q-Factor Ferrite 850mA T/R

Chip1Stop:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 15Q-Factor Ferrite 850mA 120mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 15Q-Factor Ferrite 0.85A 0.12Ohm DCR T/R

MASTER:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 15Q-Factor Ferrite 850mA 120mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 15Q-Factor Ferrite 850mA 120mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 15Q-Factor Ferrite 850mA 120mOhm DCR T/R
