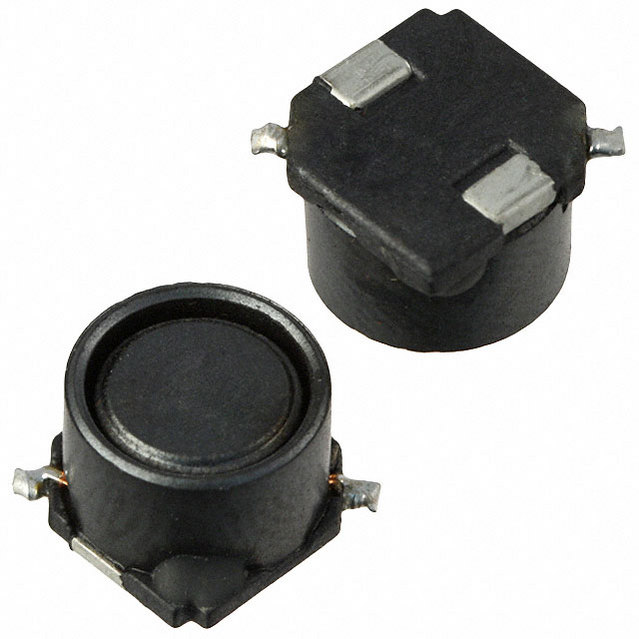

BOURNS SRR7045-220M 电感, 22uH, 1.5A, 20%, SMD
Inductor Power Shielded Wirewound 22uH 20% 1KHz 26Q-Factor Ferrite 1.5A 70mOhm DCR T/R
立创商城:
22uH ±20% 1.9A 82mΩ
得捷:
FIXED IND 22UH 1.5A 70 MOHM SMD
贸泽:
Fixed Inductors 22uH 20% SMD 7045
e络盟:
电感, 22uH, 1.5A, 20%, SMD
艾睿:
Save valuable space on a PCB with this power SRR7045-220M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 21MTyp Hz. It has an inductance of 22u H. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 1.5 A with a maximum resistance of 70m Ohm. This product is 7.3 mm long, 4.8 mm tall and 7.3 mm deep. It has a tolerance of 20%.
安富利:
Ind Power Shielded Wirewound 22uH 20% 100KHz 26Q-Factor Ferrite 1.35A T/R
Verical:
Inductor Power Shielded Wirewound 22uH 20% 1KHz 40Q-Factor Ferrite 1.9A 0.082Ohm DCR T/R
Newark:
# BOURNS SRR7045-220M Surface Mount Power Inductor, SRR7045 Series, 22 µH, 1.5 A, 1.15 A, Shielded, 0.07 ohm
MASTER:
Inductor Power Shielded Wirewound 22uH 20% 1KHz 26Q-Factor Ferrite 1.5A 70mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 22uH 20% 1KHz 26Q-Factor Ferrite 1.5A 70mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 22uH 20% 1KHz 26Q-Factor Ferrite 1.5A 70mOhm DCR T/R
额定电流 1.5 A
容差 ±20 %
电感 22 µH
自谐频率 21 MHz
Q值 26.0
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤70 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.07 Ω
安装方式 Surface Mount
封装 7mm x 7mm x 4.5mm
长度 7 mm
宽度 7 mm
高度 4.8 mm
封装 7mm x 7mm x 4.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRR7045-220M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
HM78-20220LFTR TT Electronics/BI | 类似代替 | SRR7045-220M和HM78-20220LFTR的区别 |
CDR74NP-220NC 胜美达 | 功能相似 | SRR7045-220M和CDR74NP-220NC的区别 |
HM66A-0745220MLF13 TT Electronics/BI | 功能相似 | SRR7045-220M和HM66A-0745220MLF13的区别 |
