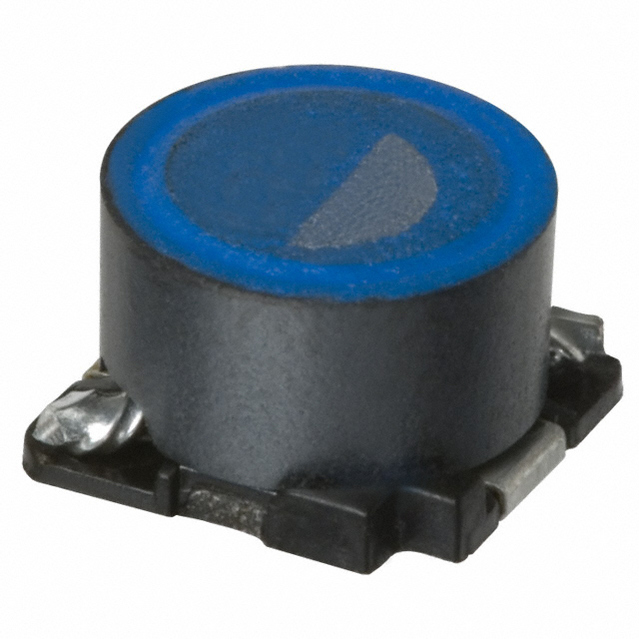

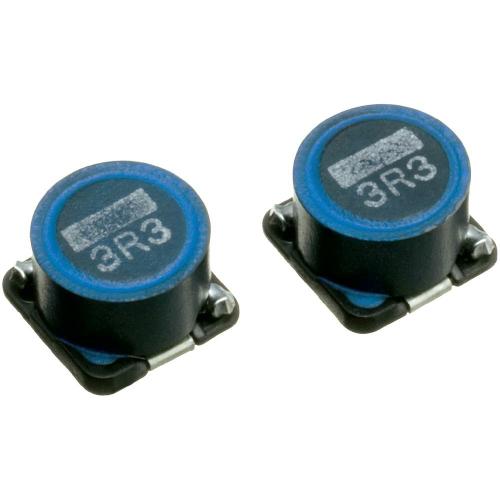

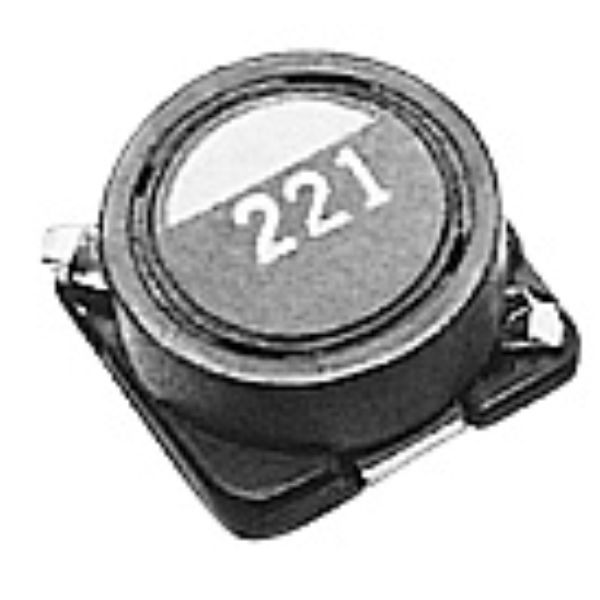

TDK SLF7045T-331MR25-PF 表面贴装功率电感器, SLF系列, 330 µH, ± 20%, 绕线, 0.74 ohm, 370 mA
固定器
得捷:
FIXED IND 330UH 370MA 888MOHM SM
立创商城:
330uH ±20% 250mA 888mΩ
贸泽:
Fixed Inductors SMD 330uH 0.25amps
艾睿:
Use this power SLF7045T-331MR25-PF surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has an inductance of 330u H. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 370m A with a maximum resistance of 888m Ohm. This product is 7.2 mm long, 4.8 mm tall and 7.2 mm deep. It has a tolerance of 20%. This device is made with wirewound technology.
安富利:
Ind Power Shielded Wirewound 330uH 20% 100KHz 370mA T/R
Verical:
Inductor Power Shielded Wirewound 330uH 20% 100KHz Ferrite 0.37A 0.888Ohm DCR T/R
Newark:
# TDK SLF7045T-331MR25-PF Surface Mount Power Inductor, SLF Series, 330 H, 20%, Wirewound, 0.74 ohm, 370 mA
MASTER:
Inductor Power Shielded Wirewound 330uH 20% 100KHz Ferrite 370mA 888mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 330uH 20% 100KHz Ferrite 370mA 888mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 330uH 20% 100KHz Ferrite 370mA 888mOhm DCR T/R
Win Source:
330μH Shielded Wirewound Inductor 370mA 888 mOhm Max Nonstandard
额定电流 370 mA
容差 ±20 %
电感 330 µH
产品系列 SLF
电阻 740 mΩ
阻值偏差 ±20 %
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤888 mΩ
额定电流DC 250 mA
工作温度Max 105 ℃
工作温度Min 40 ℃
电阻DC Max 0.888 Ω
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 7 mm
宽度 7 mm
高度 4.5 mm
封装 SMD
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SLF7045T-331MR25-PF TDK 东电化 | 当前型号 | 当前型号 |
SLF7045T-331MR25 东电化 | 功能相似 | SLF7045T-331MR25-PF和SLF7045T-331MR25的区别 |
