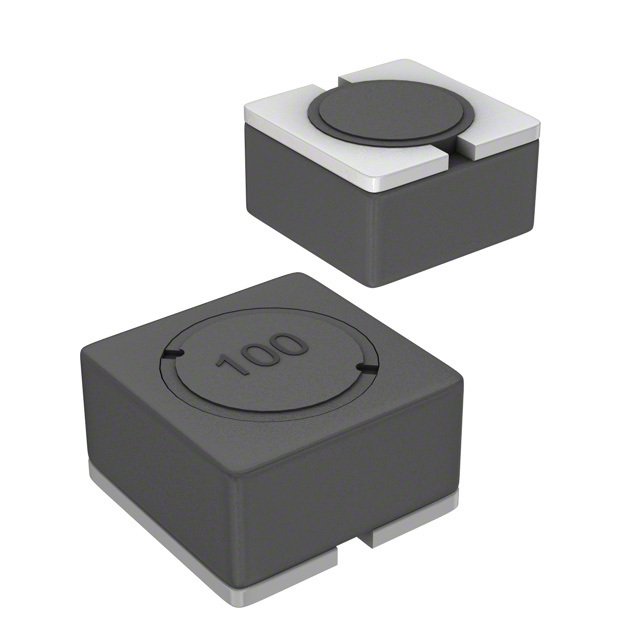

SRR6038-101Y

BOURNS  SRR6038-101Y  INDUCTOR, SHIELDED, 100UH, 0.65A, 30% 新

100 µH 屏蔽 鼓芯，绕线式 器 650 mA 358 毫欧最大 非标准

得捷:
FIXED IND 100UH 650MA 358MOHM SM

立创商城:
100uH ±30% 650mA 358mΩ

e络盟:
电感, 屏蔽, 100UH, 0.65A, 30%

艾睿:
Save valuable space on a PCB with this power SRR6038-101Y surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 650m A with a maximum resistance of 358m Ohm. This product is 7 mm long, 4 mm tall and 7 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 6.2MTyp Hz. It has an inductance of 100u H.

Allied Electronics:
Inductor; Power; Shielded; Wirewound; 100uH; 30%; 0.65A

安富利:
Ind Power Shielded Wirewound 100uH 30% 100KHz 6.7Q-Factor Ferrite 650mA T/R

Verical:
Inductor Power Shielded Wirewound 100uH 30% 100KHz 6.7Q-Factor Ferrite 0.65A 0.358Ohm DCR T/R

Newark:
# BOURNS  SRR6038-101Y  Surface Mount Power Inductor, SRR6038 Series, 100 µH, 650 mA, 680 mA, Shielded, 0.358 ohm

MASTER:
Inductor Power Shielded Wirewound 100uH 30% 100KHz 6.7Q-Factor Ferrite 0.65A 0.358Ohm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 100uH 30% 100KHz 6.7Q-Factor Ferrite 650mA 358mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 100uH 30% 100KHz 6.7Q-Factor Ferrite 0.65A 0.358Ohm DCR T/R
