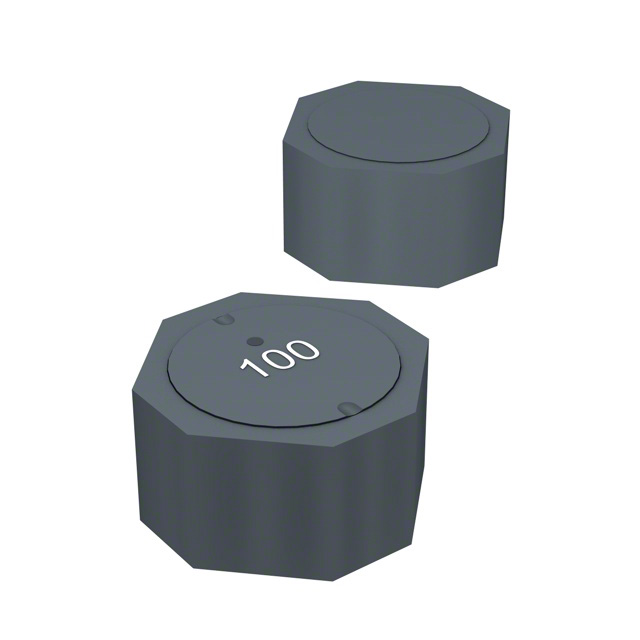

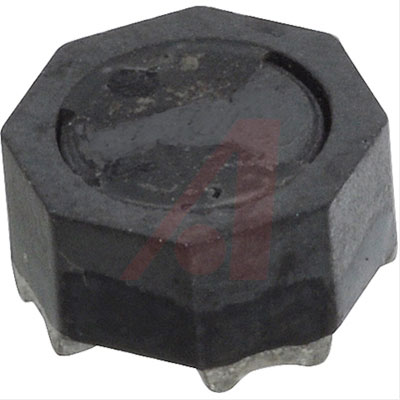

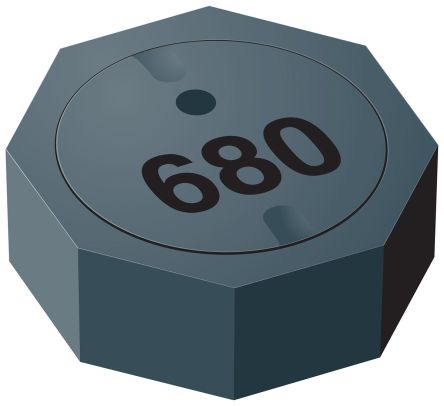

SRU5028-3R3Y

BOURNS  SRU5028-3R3Y  表面贴装功率电感器, SRU5028系列, 3.3 µH, ± 30%, 屏蔽, 0.024 ohm, 2.8 A

SRU5028 系列磁性屏蔽线绕扼流圈

薄型屏蔽结构

高电流额定值。

非常适合于高频率。

应用：直流/直流转换器，EMI 滤波器。

得捷:
FIXED IND 3.3UH 2.8A 24 MOHM SMD

立创商城:
3.3uH ±30% 2.8A 24mΩ

欧时:
Bourns SRU5028 系列 屏蔽 铁氧体芯材 3.3 μH 绕线贴片电感器 SRU5028-3R3Y, 2.8A Idc Q:10

e络盟:
功率电感SMD, 3.3 µH, 2.8 A, 屏蔽, 2.1 A, SRU5028系列, 5.2mm x 5.2mm x 2.8mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRU5028-3R3Y surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 5.4 mm long, 3 mm tall and 5.4 mm deep. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 90M Hz. It has an inductance of 3.3u H. This SMD inductor has a maximum DC current of 2.8 A with a maximum resistance of 24m Ohm.

Allied Electronics:
Inductor, SMT Power/Shielded; 3.3uH; 30% Tol; SRF Min 90MHz; DCR 0.024Ohm; 10Qref

安富利:
Ind Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 2.8A T/R

Verical:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 2.8A 0.024Ohm DCR T/R

MASTER:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 2.8A 24mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 2.8A 24mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 2.8A 24mOhm DCR T/R

Win Source:
FIXED IND 3.3UH 2.8A 24 MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 2.8 A 24mOhm Nonstandard
