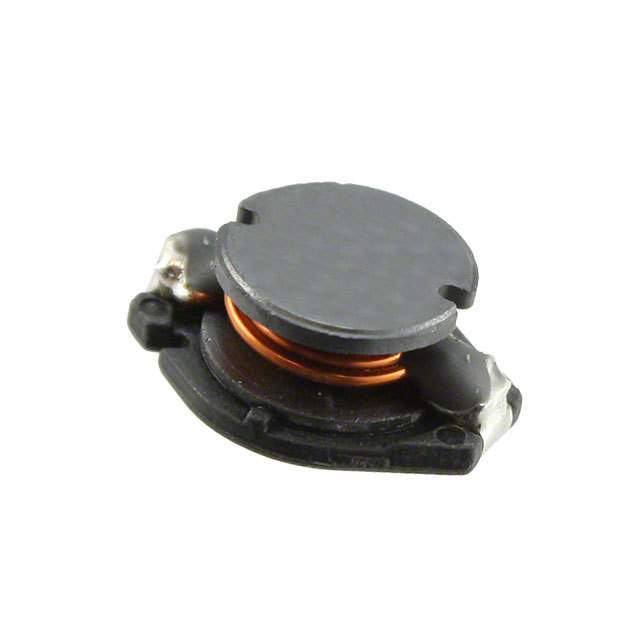

SDR1005-2R2ML

BOURNS  SDR1005-2R2ML  表面贴装功率电感器, SDR1005系列, 2.2 µH, ± 20%, 非屏蔽, 0.012 ohm, 6.1 A

2.2 µH 无屏蔽 绕线 器 6.1 A 12 毫欧最大 非标准

立创商城:
2.2uH ±20% 6.1A 12mΩ

得捷:
FIXED IND 2.2UH 6.1A 12 MOHM SMD

贸泽:
Fixed Inductors 2.2uH 20% SMD 1005

e络盟:
功率电感SMD, 2.2 µH, 6.1 A, 非屏蔽, 7 A, SDR1005系列, 12.7mm x 10mm x 5mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SDR1005-2R2ML surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 65M Hz. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 6.1 A with a maximum resistance of 12m Ohm. It has a tolerance of 20%. It has an inductance of 2.2u H.

安富利:
Ind Power 2.2uH 20% 2.47MHz 51Q-Factor Ferrite 6.1A T/R

Verical:
Inductor Power Wirewound 2.2uH 20% 1KHz 51Q-Factor Ferrite 6.1A 0.012Ohm DCR T/R

Newark:
# BOURNS  SDR1005-2R2ML  Surface Mount Power Inductor, SDR1005 Series, 2.2 H, 20%, Unshielded, 0.012 ohm, 6.1 A

Electro Sonic:
Inductor Power Wirewound 2.2uH 20% 1KHz 51Q-Factor Ferrite 6.1A 12mOhm DCR T/R
