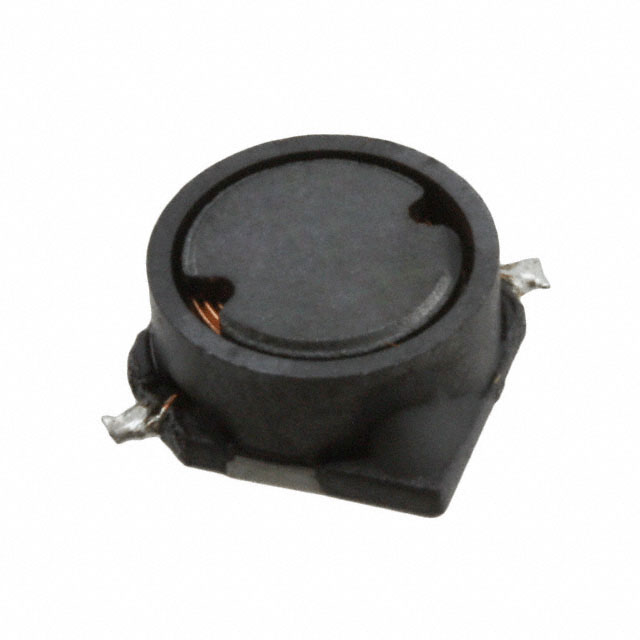

SRR7032-331M

BOURNS  SRR7032-331M  表面贴装功率电感器, SRR7032系列, 330 µH, ± 20%, 屏蔽, 1.9 ohm, 220 mA

Inductor Power Shielded Wirewound 330uH 20% 1KHz 46Q-Factor Ferrite 220mA 1.9Ohm DCR T/R

得捷:
FIXED IND 330UH 220MA 1.9OHM SMD

贸泽:
固定电感器 330uH 20% SMD 7032

e络盟:
功率电感SMD, 330 µH, 220 mA, 屏蔽, 240 mA, SRR7032系列, 7mm x 7mm x 3.2mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRR7032-331M surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 20%. This product is 7.3 mm long, 3.4 mm tall and 7.3 mm deep. This SMD inductor has a maximum DC current of 220m A with a maximum resistance of 1.9 Ohm. It has an inductance of 330u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 6.1MTyp Hz. This device is made with wirewound technology.

安富利:
Ind Power Shielded Wirewound 330uH 20% 100KHz 46Q-Factor Ferrite 220mA T/R

Chip1Stop:
Ind Power Shielded Wirewound 330uH 20% 100KHz 46Q-Factor Ferrite 220mA T/R

Verical:
Inductor Power Shielded Wirewound 330uH 20% 1KHz 46Q-Factor Ferrite 0.22A 1.9Ohm DCR T/R

Newark:
# BOURNS  SRR7032-331M  Surface Mount Power Inductor, SRR7032 Series, 330 H, 20%, Shielded, 1.9 ohm, 220 mA

MASTER:
Inductor Power Shielded Wirewound 330uH 20% 1KHz 46Q-Factor Ferrite 220mA 1.9Ohm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 330uH 20% 1KHz 46Q-Factor Ferrite 220mA 1.9Ohm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 330uH 20% 1KHz 46Q-Factor Ferrite 220mA 1.9Ohm DCR T/R
