SHIELDED SMD功率电感 Shielded SMD Power Inductors
Inductor Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 650mA 280mOhm DCR T/R
得捷:
FIXED IND 10UH 650MA 280MOHM SMD
立创商城:
10uH ±30% 650mA 280mΩ
艾睿:

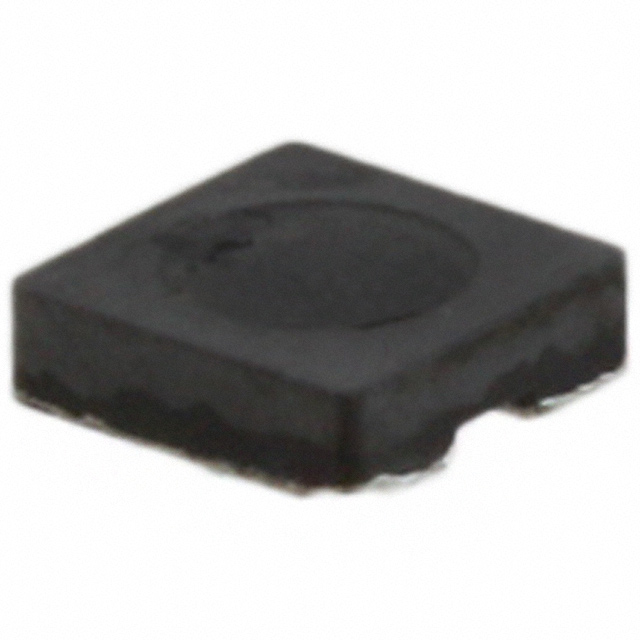

Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SRR3011-100YL surface mount inductor from Bourns is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 650m A with a maximum resistance of 280m Ohm. This product is 4.1 mm long, 1.3 mm tall and 4.1 mm deep. This device is made with wirewound technology. It has an inductance of 10u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 42M Hz.
安富利:
Ind Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 650mA T/R
Chip1Stop:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 650mA 280mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 0.65A 0.28Ohm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 650mA 280mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 18Q-Factor Ferrite 650mA 280mOhm DCR T/R
