SRR7045-271M

270uH ±20% 400mA

270 µH 屏蔽 绕线 器 400 mA 840 毫欧最大 非标准

立创商城:
270uH ±20% 620mA 600mΩ

得捷:
FIXED IND 270UH 400MA 840MOHM SM

艾睿:

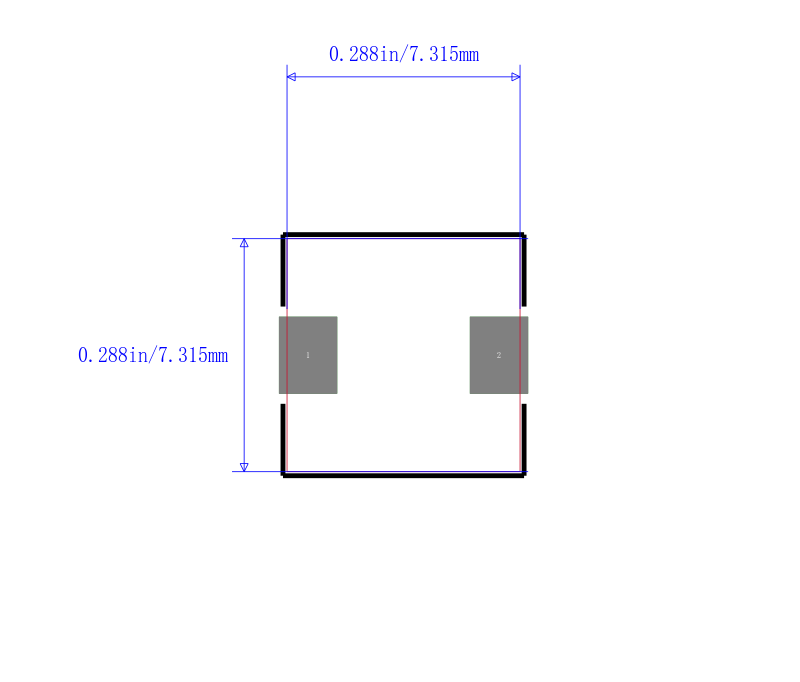

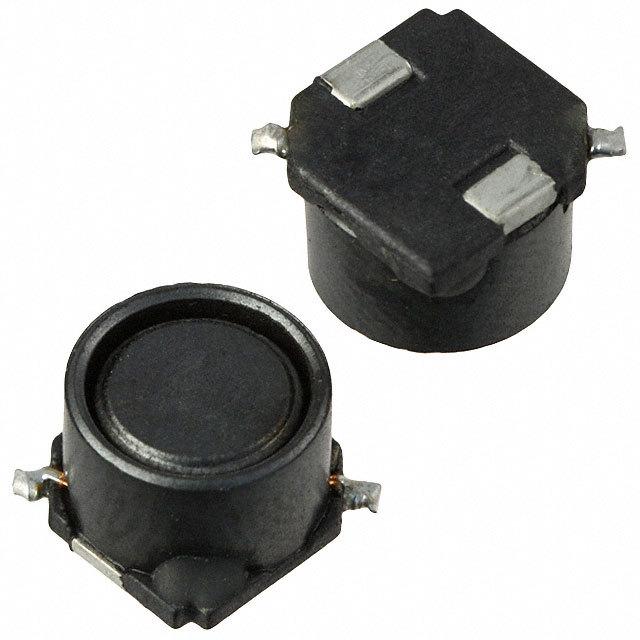

This power SRR7045-271M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 840m Ohm. It has an inductance of 270u H. This product is 7.3 mm long, 4.8 mm tall and 7.3 mm deep. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 5MTyp Hz. It has a tolerance of 20%.

安富利:
Ind Power Shielded Wirewound 270uH 20% 100KHz 30Q-Factor Ferrite 400mA T/R
