10uH ±20% 720mA
屏蔽 绕线 器 160 毫欧 非标准
立创商城:
10uH ±20% 720mA 160mΩ
得捷:
FIXED IND 10UH 720MA 160MOHM SMD
艾睿:

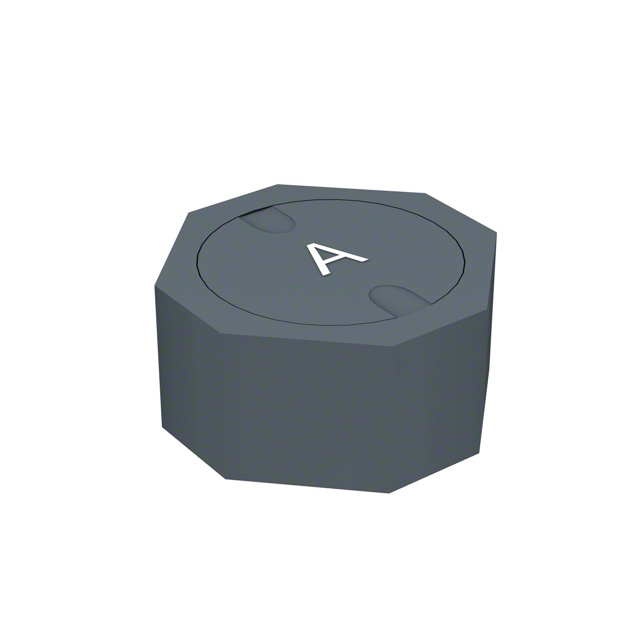

This power SRU3028-100M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 720m A with a maximum resistance of 160m Ohm. It has an inductance of 10u H. This product is 3.5 mm long, 3 mm tall and 3.5 mm deep. This device utilizes wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 35MTyp Hz.
Verical:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 20Q-Factor Ferrite 0.72A 0.16Ohm DCR T/R
MASTER:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 20Q-Factor Ferrite 720mA 160mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 20Q-Factor Ferrite 720mA 160mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 20Q-Factor Ferrite 720mA 160mOhm DCR T/R
额定电流 720 mA
容差 ±20 %
电感 10 µH
自谐频率 35 MHz
Q值 20
电感公差 ±20 %
测试频率 100 kHz
电阻DC) 160 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 160 mΩ
安装方式 Surface Mount
封装 0.138" L x 0.130" W x 0.110" H 3.50mm x 3.30mm x 2.80mm
高度 3 mm
封装 0.138" L x 0.130" W x 0.110" H 3.50mm x 3.30mm x 2.80mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
